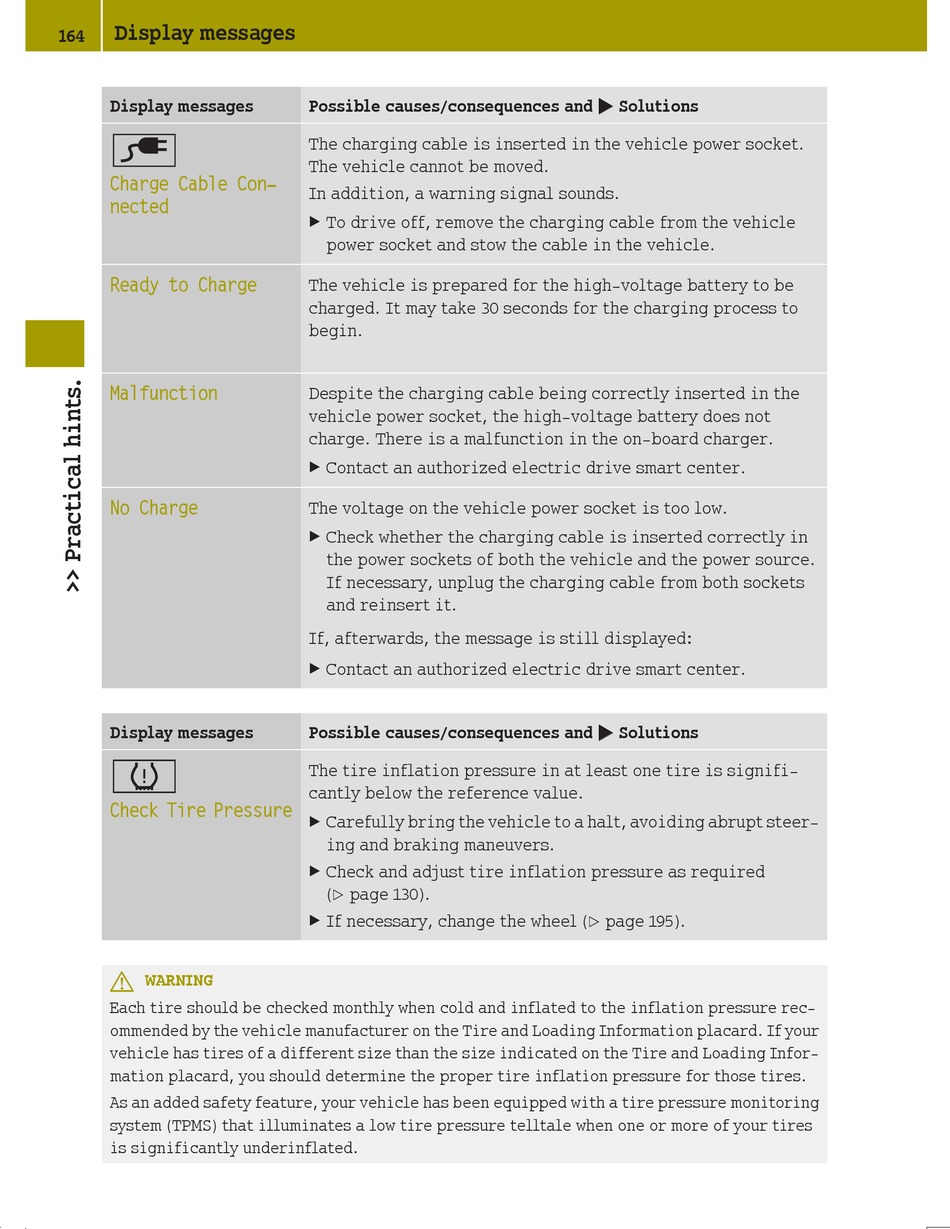

Display messages
164
Display messages
è
Charge Cable Con‐ Charge Cable Con‐
nected nected
Ready to Charge Ready to Charge
Malfunction Malfunction
No Charge No Charge
Display messages
h
Check Check Tire Tire Pressure Pressure
G WARNING
Each tire should be checked monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the Tire and Loading Information placard. If your
vehicle has tires of a different size than the size indicated on the Tire and Loading Infor-
mation placard, you should determine the proper tire inflation pressure for those tires.
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires
is significantly underinflated.
Possible causes/consequences and M M Solutions
The charging cable is inserted in the vehicle power socket.
The vehicle cannot be moved.
In addition, a warning signal sounds.
To drive off, remove the charging cable from the vehicle
X
power socket and stow the cable in the vehicle.
The vehicle is prepared for the high‑voltage battery to be
charged. It may take 30 seconds for the charging process to
begin.
Despite the charging cable being correctly inserted in the
vehicle power socket, the high‑voltage battery does not
charge. There is a malfunction in the on-board charger.
Contact an authorized electric drive smart center.
X
The voltage on the vehicle power socket is too low.
Check whether the charging cable is inserted correctly in
X
the power sockets of both the vehicle and the power source.
If necessary, unplug the charging cable from both sockets
and reinsert it.
If, afterwards, the message is still displayed:
Contact an authorized electric drive smart center.
X
Possible causes/consequences and M M Solutions
The tire inflation pressure in at least one tire is signifi-
cantly below the reference value.
Carefully bring the vehicle to a halt, avoiding abrupt steer-
X
ing and braking maneuvers.
Check and adjust tire inflation pressure as required
X
( page 130).
Y
If necessary, change the wheel (
X
page 195).
Y
