High-voltage battery
116
compartment as shown in the illustra-
tion.
When doing so, observe that the display
and buttons on control element ? both
point upwards.

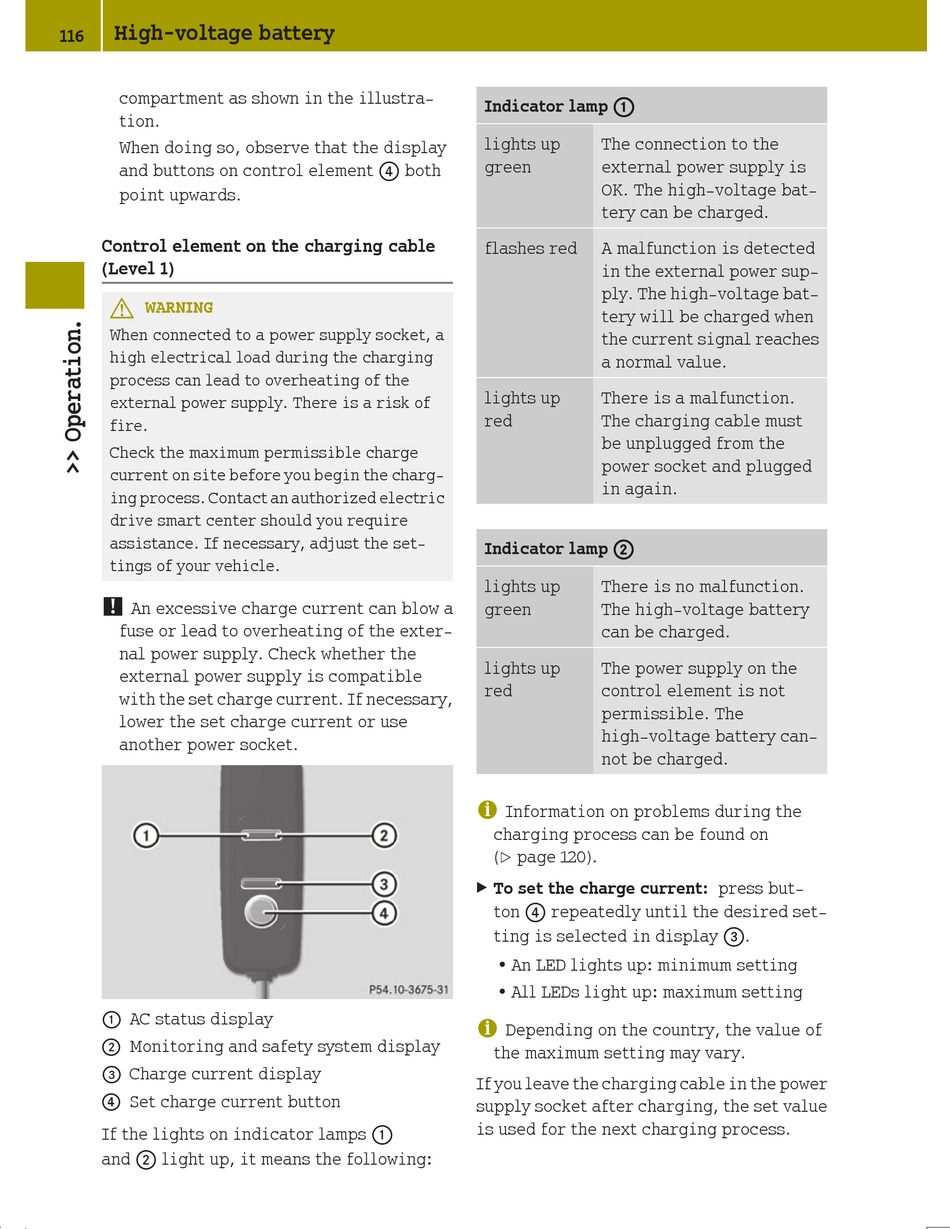

Control element on the charging cable
(Level 1)
G
WARNING
When connected to a power supply socket, a
high electrical load during the charging
process can lead to overheating of the
external power supply. There is a risk of
fire.
Check the maximum permissible charge
current on site before you begin the charg-
ing process. Contact an authorized electric
drive smart center should you require
assistance. If necessary, adjust the set-
tings of your vehicle.
! An excessive charge current can blow a
fuse or lead to overheating of the exter-
nal power supply. Check whether the
external power supply is compatible
with the set charge current. If necessary,
lower the set charge current or use
another power socket.
AC status display
:
Monitoring and safety system display
;
Charge current display
=
Set charge current button
?
If the lights on indicator lamps :
and ; light up, it means the following:
Indicator lamp : :
lights up The connection to the
green external power supply is
OK. The high‑voltage bat-
tery can be charged.
flashes red A malfunction is detected
in the external power sup-
ply. The high‑voltage bat-
tery will be charged when
the current signal reaches
a normal value.
lights up There is a malfunction.
red The charging cable must
be unplugged from the
power socket and plugged
in again.
Indicator lamp ; ;
lights up There is no malfunction.
green The high‑voltage battery
can be charged.
lights up The power supply on the
red control element is not
permissible. The
high‑voltage battery can-
not be charged.
i
Information on problems during the
charging process can be found on
( page 120).
Y
To set the charge current: press but-
X
ton ? repeatedly until the desired set-
ting is selected in display =.
An LED lights up: minimum setting
R
All LEDs light up: maximum setting
R
i
Depending on the country, the value of
the maximum setting may vary.
If you leave the charging cable in the power
supply socket after charging, the set value
is used for the next charging process.
