Front compartment
124

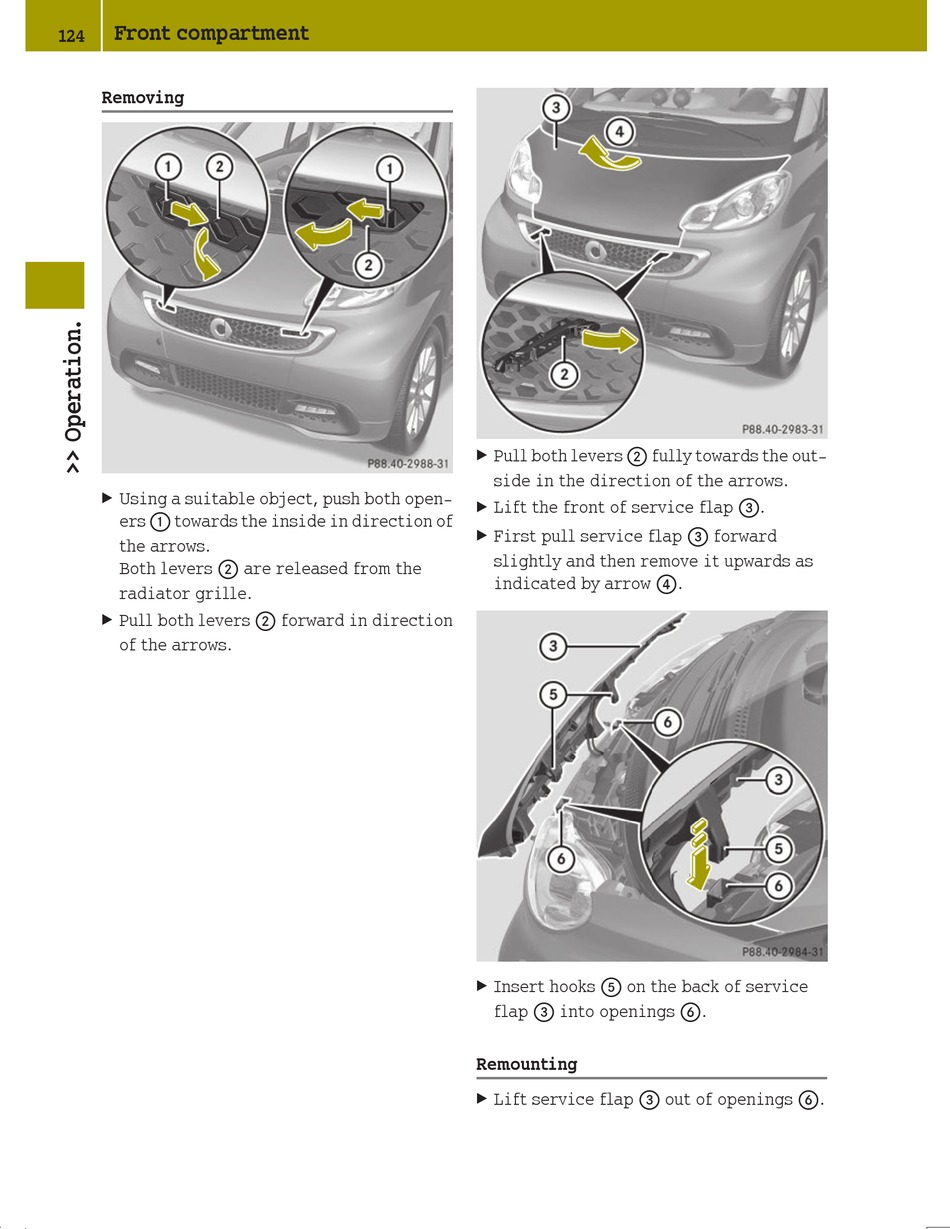

Removing
Using a suitable object, push both open-
X
ers : towards the inside in direction of
the arrows.
Both levers ; are released from the

radiator grille.

Pull both levers ; forward in direction
X
of the arrows.
Pull both levers ; fully towards the out-
X
side in the direction of the arrows.
Lift the front of service flap =.
X
First pull service flap = forward
X
slightly and then remove it upwards as
indicated by arrow ?.
Insert hooks A on the back of service
X
flap = into openings B.
Remounting
Lift service flap = out of openings B.
X
