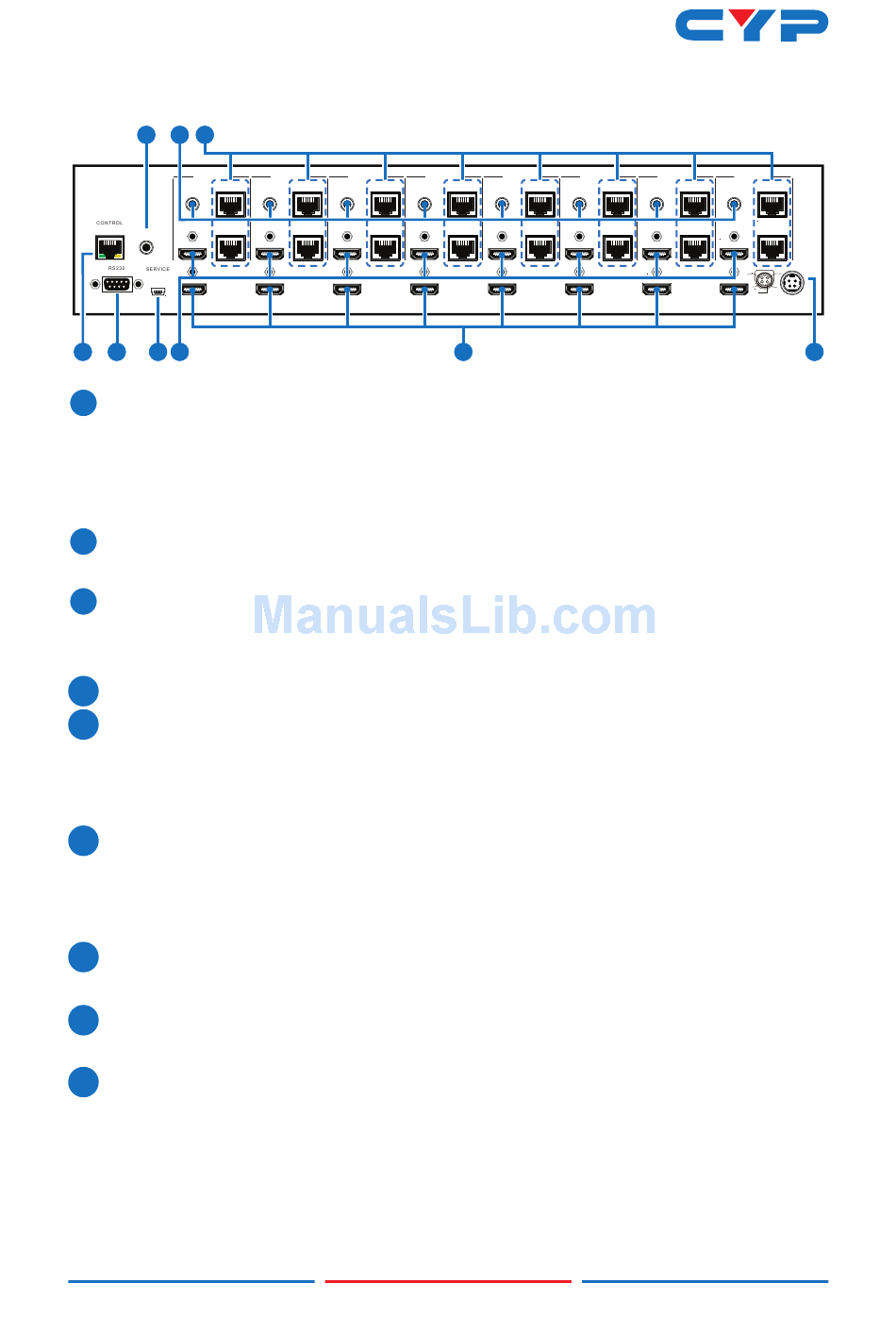

6.2 Rear Panel

3 5 6
OUTPUT A
DDC
IR
HDMI VIDEO
IR IN
1
HDMI IN
1 2 4
7
CONTROL: This port is the link for Telnet and Web GUI controls,
1
connect to an active Ethernet link with an RJ45 terminated cable (for
further details, please refer to section 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop
as the Telnet function will not work.
RS-232: Connect to a PC or control system with D-Sub 9-pin cable
2
for the transmission of RS-232 commands.
IR IN: Connect to the IR extenders for IR signal reception from the
3
remote control of the Matrix. Ensure that the remote is within the
direct line-of-sight of the IR extender when used.
4 SERVICE: Manufacturer use only.
5
IR OUT A~H: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
reciever side choosen by input selection.
6
DDC/VIDEO OUTPUT A~H: Connect from these CAT outputs to
the Dual-CAT-Cable input ports of the receiver units with a pair
of CAT5e/6/7 cables for HDMI Audio/Video and IR control signal
transmission.
7 HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for
display of the HDMI input source signal.
8
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
9
DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.
OUTPUT B OUTPUT C
DDC DDC
IR IR IR
HDMI VIDEO HDMI VIDEO HDMI
2 3 4
HDMI IN HDMI IN HDMI IN
OUTPUT D OUTPUT E OUTPUT F
DDC DDC
IR IR
VIDEO HDMI VIDEO HDMI
5 6
HDMI IN HDMI IN
8
OUTPUT G OUTPUT H
DDC DDC DDC
IR IR
VIDEO HDMI VIDEO HDMI VIDEO
GND
GND
2 1
4 3
V+
+ V
GND
7 8
HDMI IN HDMI IN
DC 24V
9
