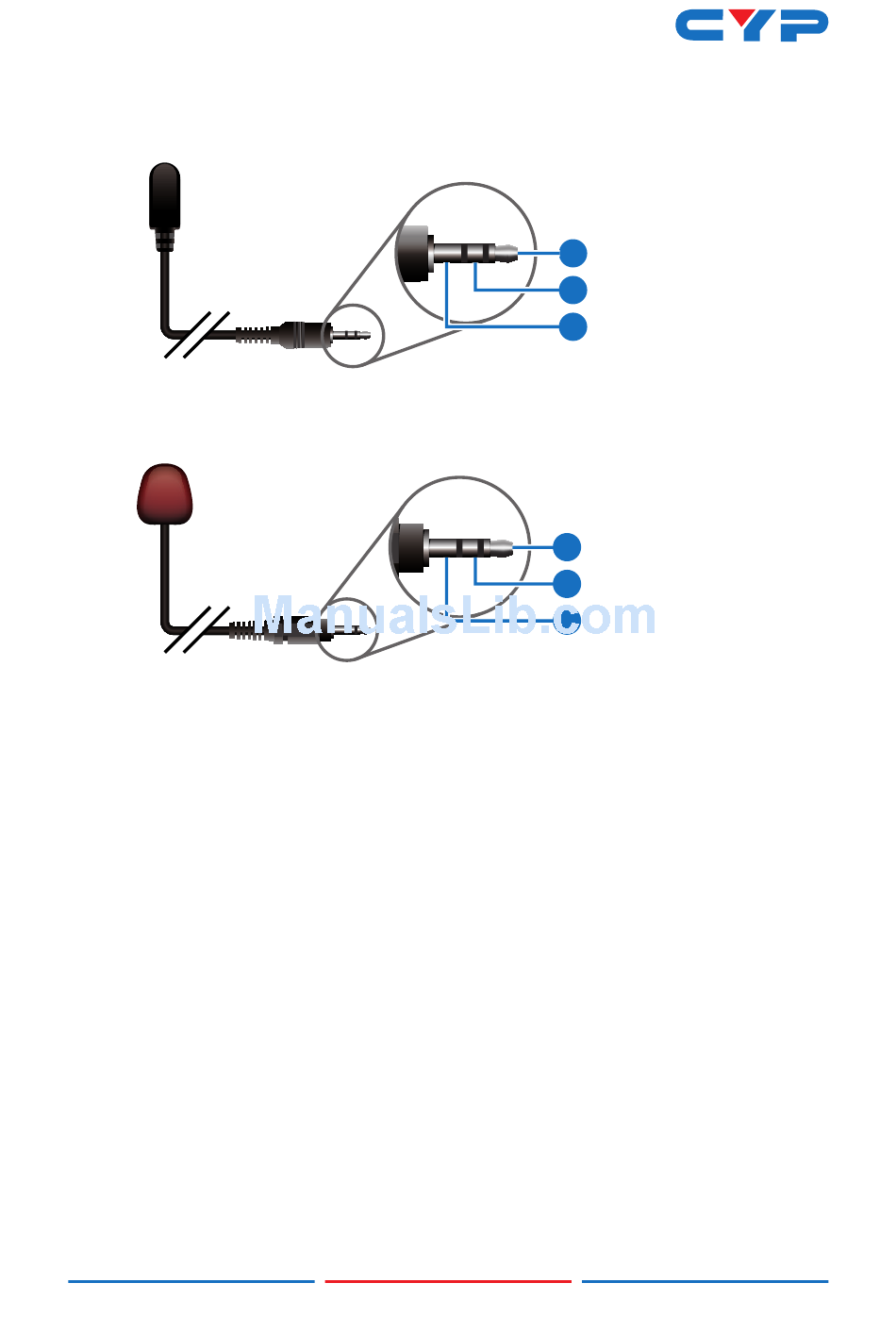

6.5 IR Cable Pin Assignment

IR Blaster
IR Extender
Power 5 V
1
IR Blaster Signal
2
NC
3
IR Signal
1
Power 5 V
2
Grounding
3
6
