Summary of Contents for CYP CMSI-4H4CVL

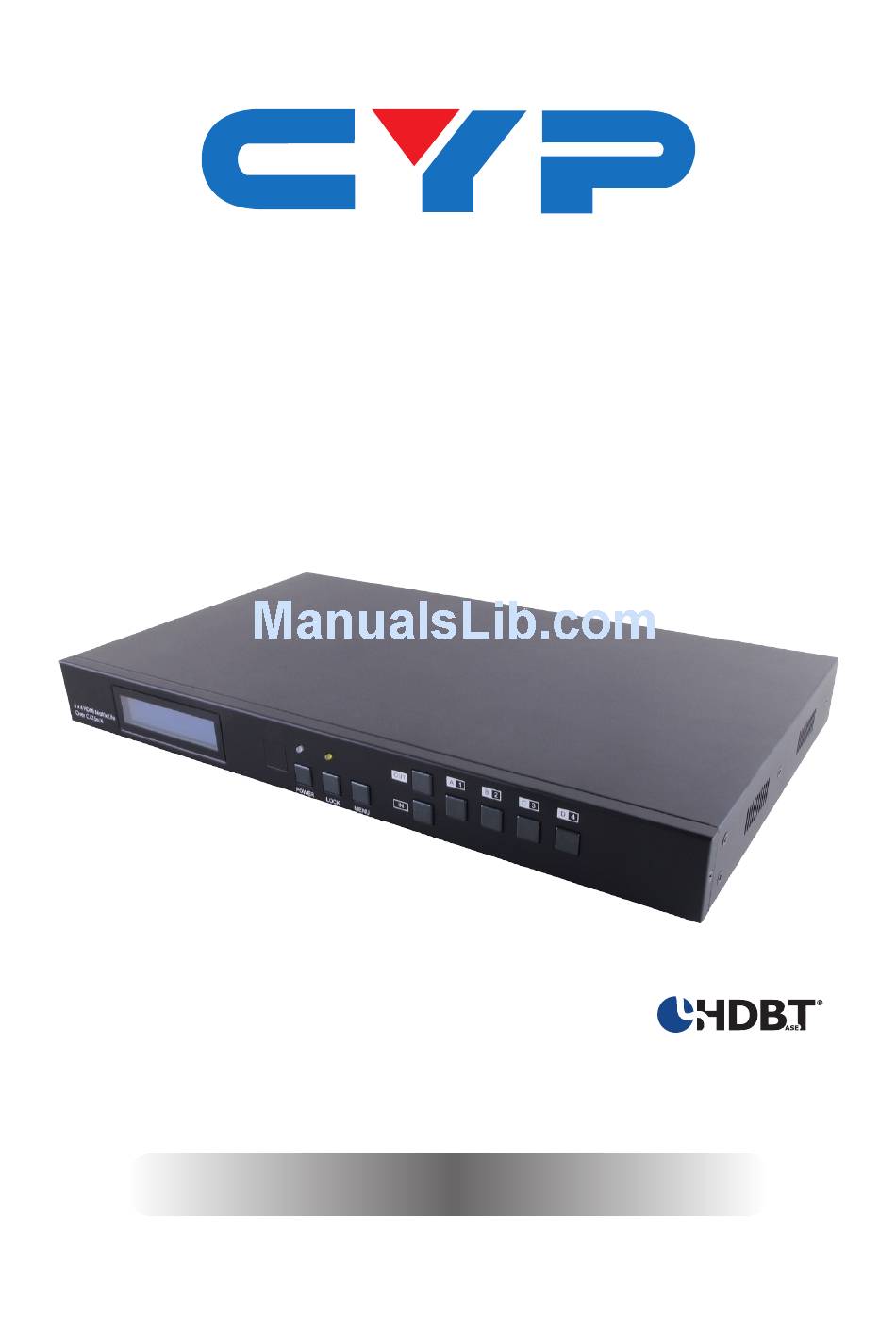

- Page 1 CMSI-4H4CVL HDBaseT™ 4×4 HDMI Matrix over CAT5e/6/7 Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 IR Cable Pin Assignment....6 6.5 RS-232 Pin Assignment .....7 6.6 RS-232 and Telnet Commands ..8... -
Page 5: Introduction
1. INTRODUCTION The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for each output. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 4 x 4 HDMI Matrix Lite Over CAT5e/6 LOCK MENU POWER LCM: Displays the setting information of each input and output setting. IR: IR Receiver window (accepts the remote control signal of this device only). -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR IN IR IN IR IN IR IN IR IN IR IN DC 24V RS-232: Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands. -
Page 9: Remote Control
6.3 Remote Control POWER: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~4. OUT: Output ports selection A~D. CR-121... -
Page 10: Ir Cable Pin Assignment
6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 11: Rs-232 Pin Assignment
6.5 RS-232 Pin Assignment CMSI-4H4CVL Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 12: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands Command Description help Dipslay all available commands A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 C1~C4 Switch Output C to 1~4 D1~D4 Switch Output D to 1~4 AB…1~AB…4 Switch Output ABCD to 1~4 at the same time SETIP <IP>... -
Page 13: Telnet Control
6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 14 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
-
Page 15: Web Gui Control
6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE RS-232 Equipped PC or Control System CAT5e/6 Output Power Supply Network Router HDMI IN CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR IN IR IN IR IN... -
Page 18: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI, 5×IR Extender, 1×RS-232, 1×RJ- 45(Control), 1×Mini USB Type B (For firmware updated only) Output Ports 4×CAT5e/6/7, 5×IR Blaster ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/2.7 A DC (US/EU standards, CE/ FCC/UL certified) -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CMSI4H4CVL...
