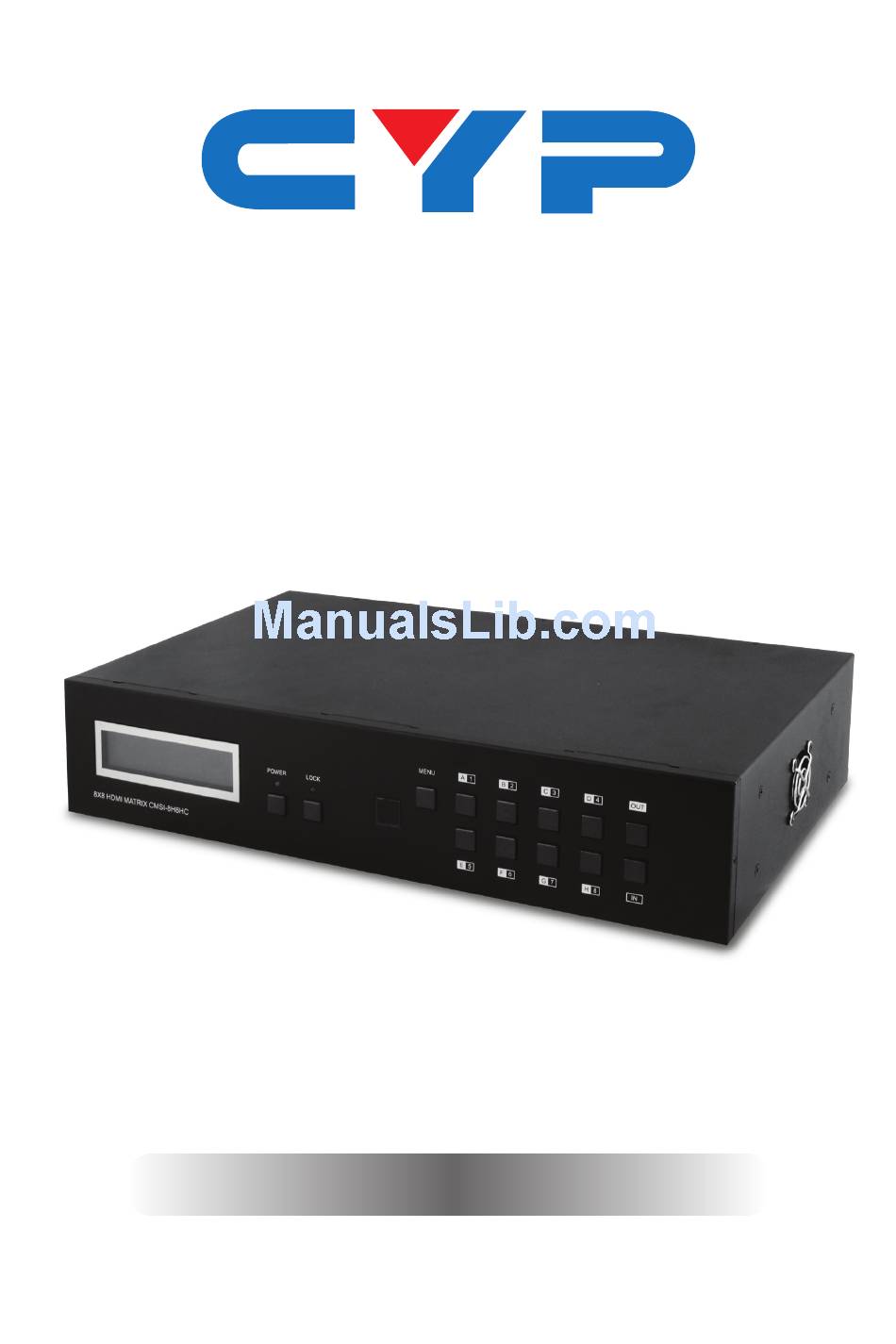

- Page 1 CMSI-8H8HC 8×8 HDMI Matrix with Simultaneous Dual CAT6 and HDMI Outputs Operation Manual Operation Manual...
-
Page 2: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 IR Cable Pin Assignment....6 6.6 RS-232 Pin Assignment .....7... -
Page 5: Introduction
1. INTRODUCTION The 8×8 HDMI Matrix with simultaneous CAT6 and HDMI outputs connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Dual- CAT-Cable output which runs simultaneously. Connect a CH-1106RX Receiver to each of the Dual-CAT-Cable outputs to extend the HDMI signal up to 45m for multi-room connectivity.This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, Telnet,... -
Page 6: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI compliant • Supports HDMI 3D pass-through • Supports resolutions from VGA~WUXGA@60RB and HD resolutions from 480i~1080p dependent upon the display’s EDID settings • Supports transmission distances up to 45 meters through Dual CAT6 cables •... -
Page 7: Operation Controls And Functions

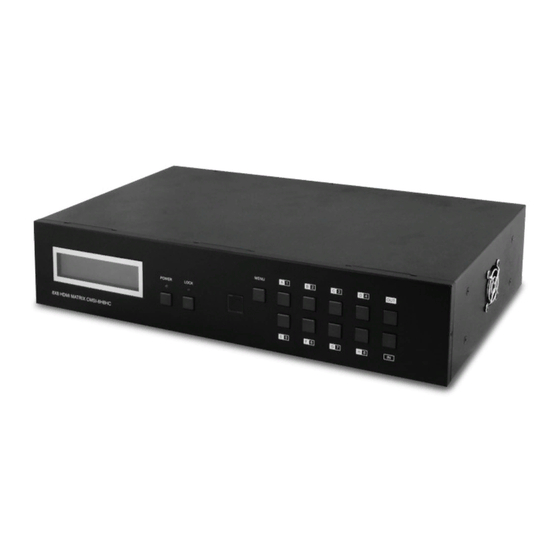

6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX CMSI-8H8HC LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 8: Rear Panel
6.2 Rear Panel OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTPUT E OUTPUT F OUTPUT G OUTPUT H HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO HDMI VIDEO IR IN DC 24V HDMI IN HDMI IN HDMI IN HDMI IN... -
Page 9: Side Panel
6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. -
Page 10: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 11: Rs-232 Pin Assignment
6.6 RS-232 Pin Assignment CMSI-8H8HC Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 12: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands 6.7 RS-232 and Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8... -
Page 13: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are 6.8 Telnet Control 6.8 Telnet Control connected to the active networks. Note: Please do not connect both the Matrix and the PC/Laptop Before attempting to use the telnet control, please ensure that both with a single CAT5e/6 cable together as it will not access the telnet the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are... - Page 14 Once in the command line interface (CLI) type "telnet", the IP address of the unit you wish to control and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice/three times. This will bring us into the device which we wish to control.
-
Page 15: Web Gui Control
6.9 Web GUI Control 6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 16 Clicking on the 'User Setting' tab allows you to reset the IP confi guration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 17: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE ZONE VIDEO VIDEO VIDEO VIDEO VIDEO CAT6 INPUT CAT6 INPUT CAT6 INPUT CAT6 IN CAT6 INPUT IR Input 1.5m OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTPUT E OUTPUT F 60° 60° HDMI VIDEO HDMI... - Page 18 ZONE ZONE ZONE Displays HDMI Outputs IR Receivers Receiver Units VIDEO VIDEO VIDEO NPUT CAT6 INPUT CAT6 INPUT CAT6 INPUT Dual CAT6 Cables 45 m OUTPUT G OUTPUT H HDMI VIDEO HDMI VIDEO Main Power Supply DC 24V HDMI IN HDMI IN HDMI Outputs IR Outputs...
-
Page 19: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 8×HDMI, 1×IR Extender, 1×RS-232, 1×Mini USB Type B (for firmware update only), 1xRJ-45(Control) Output Ports 8×Dual CAT6, 8×IR Blaster, 8×HDMI HDMI Input Cable Distance 15m/8-bit, 10m/12-bit HDMI Output Cable Distance 15m/8-bit, 15m/12-bit CAT6 Cable Distance 45m/8-bit ESD Protection... -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array... - Page 21 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120518 MPM-CMSI8H8HC...
