Sub-Zero 601R-2 Technical & Service Manual page 76

Component Access / Removal
Light and Fan Switch (601R-2, 601RG-2, 601F-2)
Light / fan switches are mounted in upper grille section.
To remove a switch, the lower and upper grille sections
must be removed first, then (See Figure 7-9):
1. Disconnect wire leads from switch.
2. Depress tab on side of switch while pushing switch
out of the opening in upper grille section.
Light and Fan Switch (All models except 601's)
Light and fan switches are mounted in top mainframe.
To remove a switch, first remove the grille, then (See
Figure 7-10):
1. Remove switch enclosure directly behind top main-
frame extrusion.
2. Disconnect wire leads from switch.
3. Open refrigerator or freezer door below switch.
4. Depress tab on side of switch while pushing switch
down, out of the opening in mainframe extrusion.
#3758407 - Revision B - August, 2006
Built-In
Built-In
(600-
(600-
Upper Grill
Section
Light Switch
Light Switch
7-6
Series
Series
2
2
)
)
Fan Switch

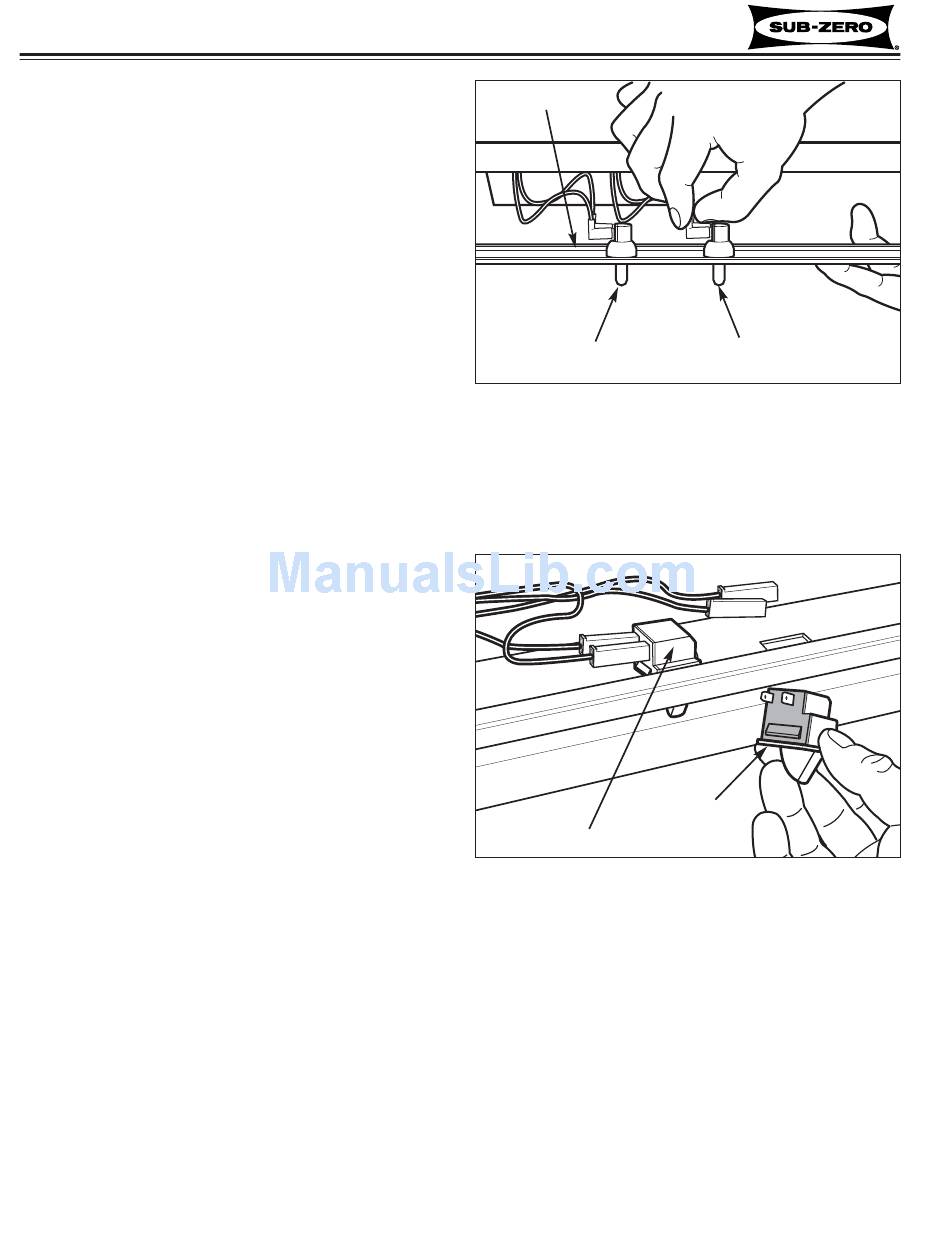

Figure 7-9. Switch (601's)
r a m e
M a i n f
Fan Switch
Figure 7-10. Switch
