600-2 SERIES CONTROL PANEL LAYOUT
NOTES:
• The illustration below is of a 632-2 control panel (See Figure 3-4).
• The control panels in models 601R-2, 601RG-2 and 601F-2 lack the obvious keys and indicators illustrated
below.
• The control panels in models 601RG-2, 611G-2 and 650G-2 include a LIGHTS ON/OFF key that is not shown in
the illustration below.
• The control panels in models 685-2 and 695-2 are mounted vertically and include a BULK ICE key.
LCD
Liquid
Crystal
Display
Jake Dog was here

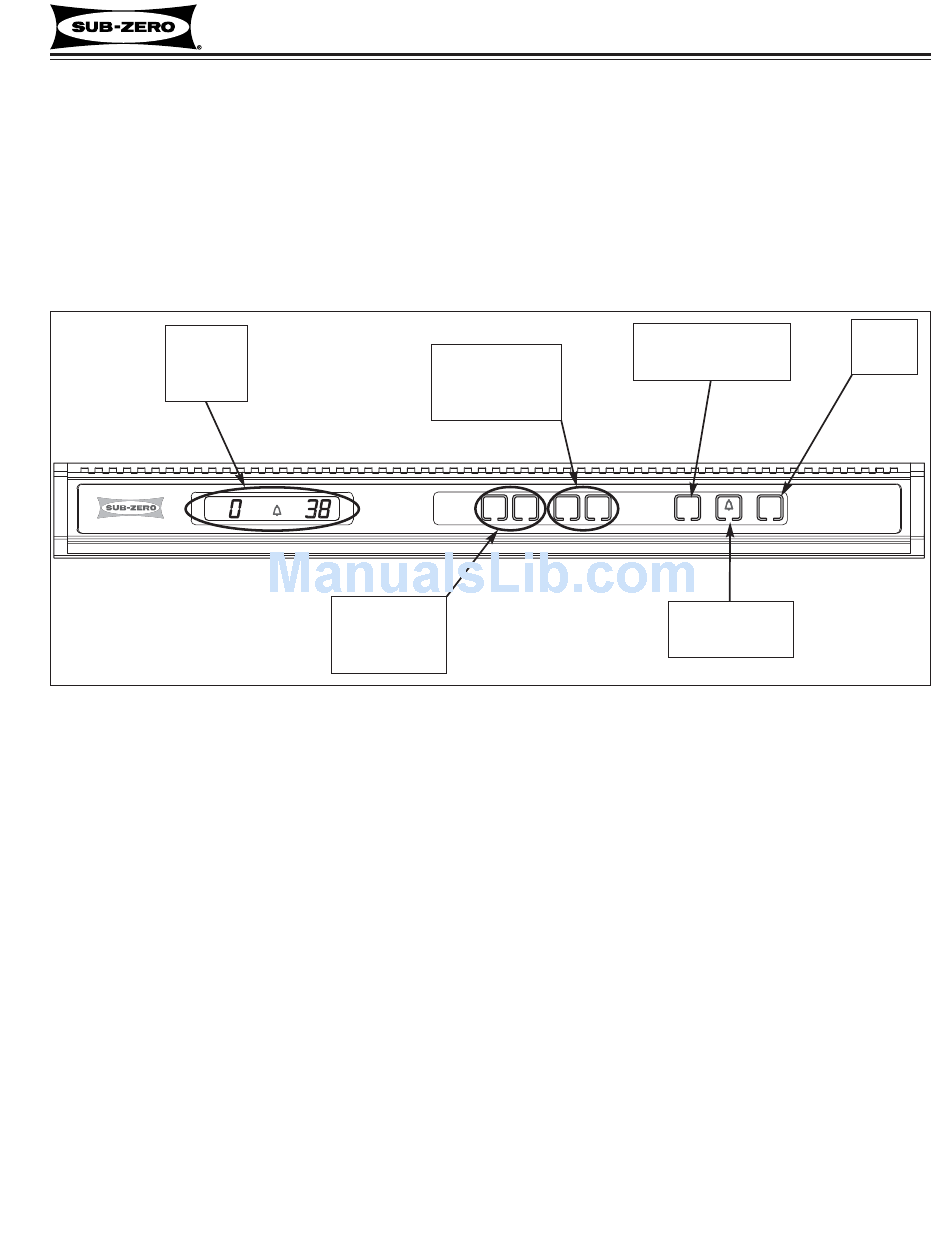

Figure 3-4. 600-2 Series Control Panel Layout (Model 632-2 Control Panel Shown)
2
2
(600- )
(600- )
SERVICE
ICE OFF
FREEZER
SET-POINT
ADJUSTMENT
KEYS
Series
Series
REFRIGERATOR
SET-POINT
ADJUSTMENT
KEYS
FREEZER
COLDER WARMER COLDER WARMER
3-5
Electronic Control System
ICEMAKER
SYSTEM ON/OFF
KEY
ICE UNIT
REFRIGERATOR
ON/OFF ON/OFF
ON/OFF
DOOR AJAR
ALARM ON/OFF
KEY
#3758407 - Revision B - August, 2006
UNIT
ON/OFF
KEY
