Built-In Series
Built-In Series
Component Access / Removal
2
2
(600- )
(600- )
Kickplate (All Models)
Extract screws at bottom left and right corners of kick-
plate and pull kickplate forward (See Figure 7-6).
Screw
K i c k
p l a t e

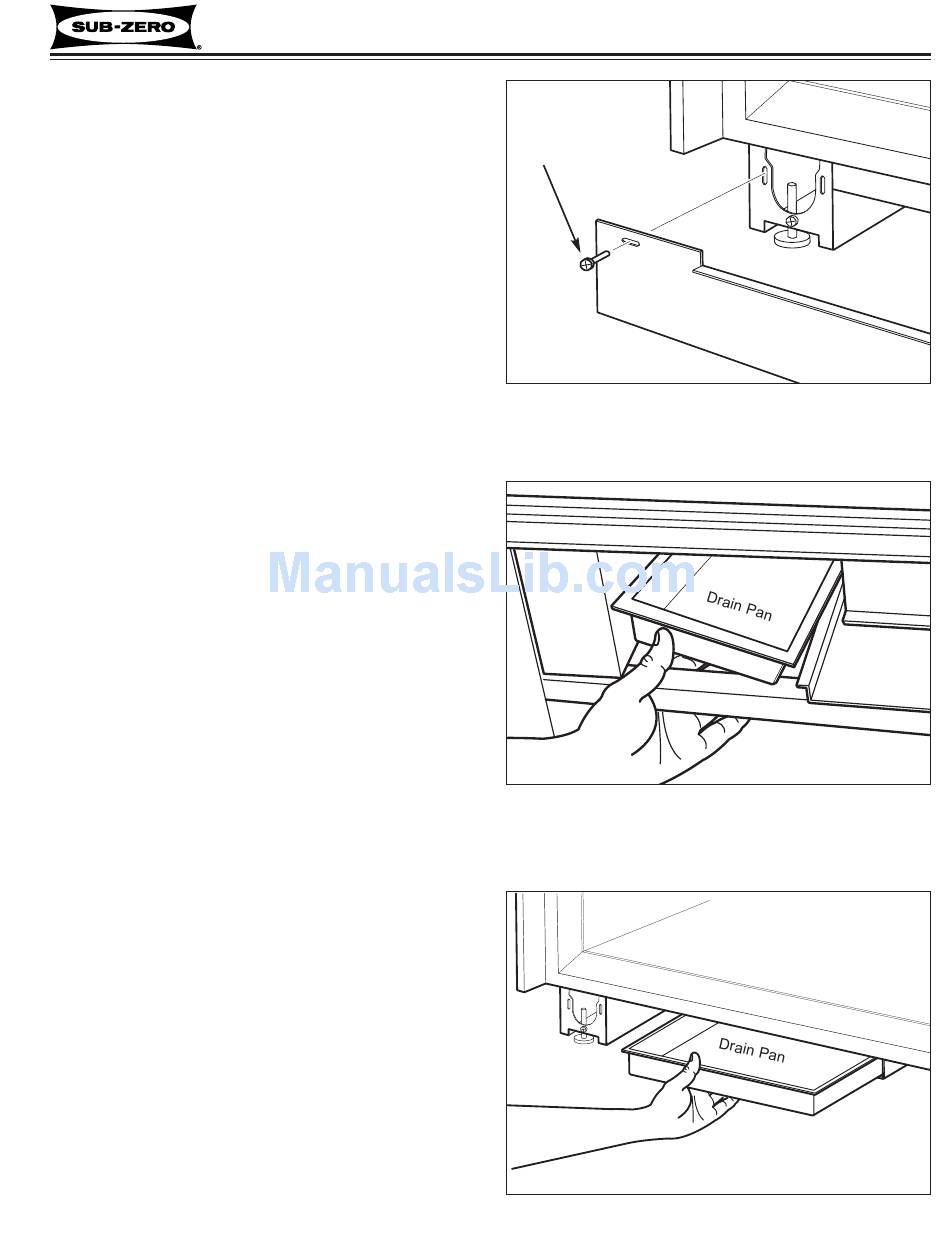

Figure 7-6. Kickplate
Drain Pan (601R-2, 601RG-2, 601F-2)
The side flanges at the top of the plastic drain pan rest
on top of metal flanges behind the kickplate. Z-clamps
are used to secure the drain pans top flange to the unit
tray side flange.
To remove a drain pan (See Figure 7-7):
1. Remove lower grille section.
2. Remove kickplate.
3. Push drain pan up and out from underneath.
Figure 7-7. Drain Pan (601's)
Drain Pan (All models except 601's)
The drain pan slides in from the front of the unit on two
side brackets, coming to rest on a rear bracket. A lock-
ing feature was built into the drain pan in the form of
detentes at the bottom front that drop into notches at
the front of the side brackets.
To remove a drain pan (See Figure 7-8):
1. Remove kickplate.
2. Push front of drain pan up slightly and pull forward.
Figure 7-8. Drain Pan
7-5
#3758407 - Revision B - August, 2006
