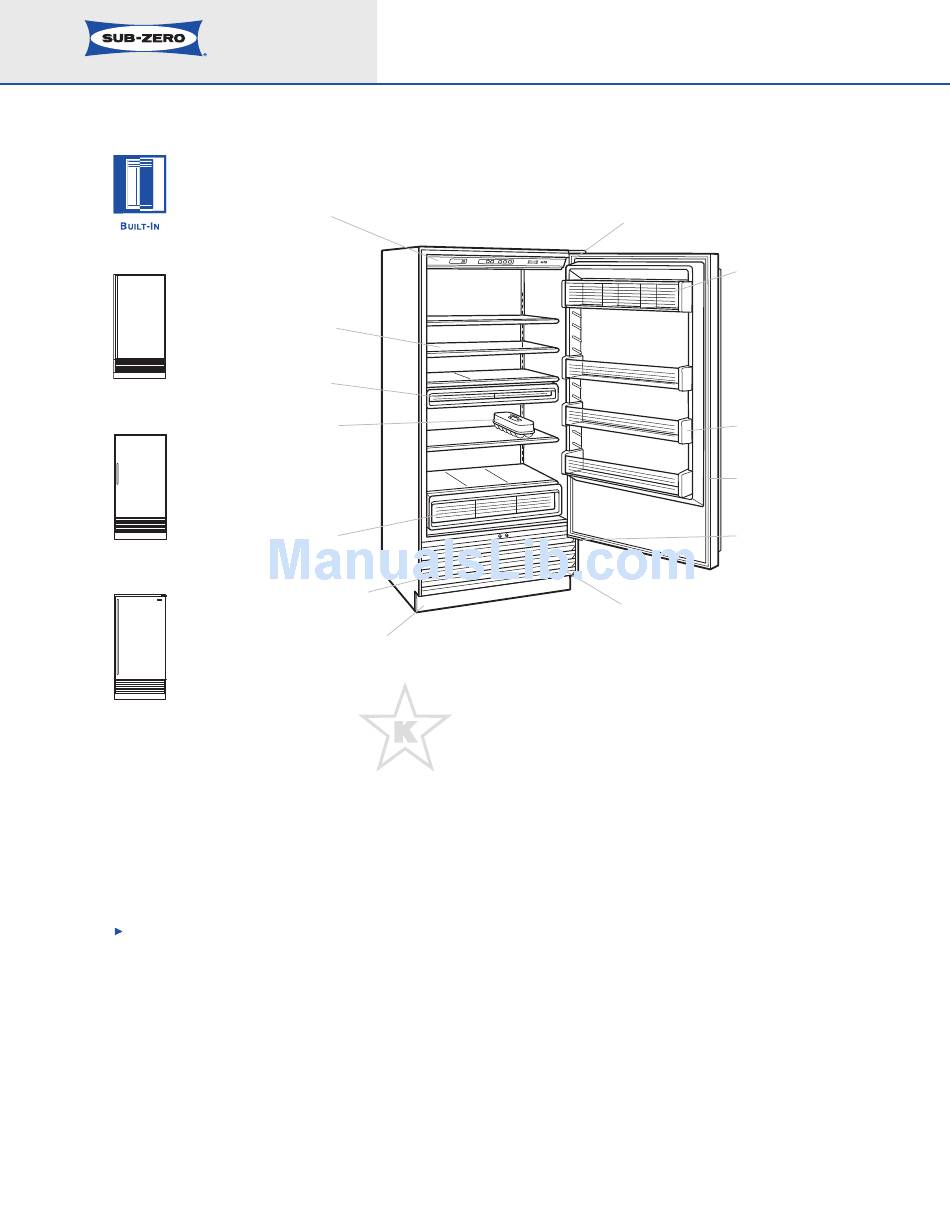

Planning Information
All Refrigerator
Lighted electronic
control panel
Adjustable spill-proof
glass shelves
Adjustable roll-out
utility basket

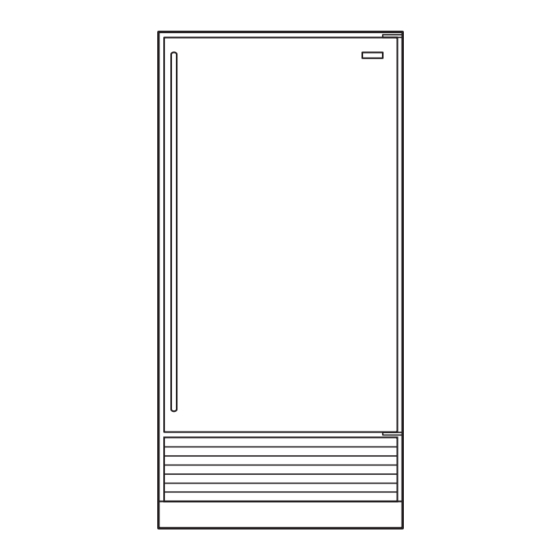

Model 601R/F
Framed
Egg container
High humidity
compartment
Model 601R/O
Overlay
Hermetically sealed
refrigeration units
Model 601R/S (P/B)
Stainless Steel
The Sub-Zero Model 601R all
refrigerator is available in your choice of the
framed, overlay or stainless steel design
application. Three stainless steel finishes
are offered—classic (/S), platinum (/P) and
carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
Removable kickplate
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
T
he Model 601R is one of the largest all refrigerator
models that Sub-Zero offers. When coupled with the
Model 601F, all freezer, it offers the consumer 6'
(1.8 m) of refrigeration space. But if you confine your
thinking to this alone, you are seeing half the picture.
Think about using this unit with a Model 700BF,
the two-drawer base freezer (see the Integrated
Refrigeration section). This unit is the first building
piece in solving clients' issues.
Serial and model
number plate
Adjustable dairy
compartment
Adjustable door
shelves
Four-sided
magnetic gaskets
Door closers
Front venting allows unit
to be completely built in
1
