Sub-Zero 601R-2 Technical & Service Manual page 80

Component Access / Removal
Glasswell Liner/Sump (685-2, 695-2)
The glasswell liner sets into a groove in the sump.
These two components are then installed as an assem-
bly, with the top of the liner fitting up into a groove at
the bottom of the dispenser assembly, and two plastic
rivets hold the liner to the dispenser assembly.
To remove the glasswell liner/sump assembly, the con-
trol panel and bezel must be removed first, then (See
Figures 7-20 and 7-21):
1. Extract plastic rivet center posts using a fingernail,
putty knife, or similar device, then pull rivets out.
2. Detach ground wire from glasswell liner at top right.
3. Pull bottom of assembly out while lifting up.
NOTE: When reassembling, top edge of liner must
fit into the groove at bottom of dispenser assembly.
Dispenser Assembly (685-2, 695-2)
The dispenser assembly sits above the glasswell liner
and is held in position with four screws.
To remove the dispenser assembly, the control panel,
bezel and glasswell liner/sump assembly must be
removed first, then (See Figures 7-22):
1. Extract front and back dispenser assembly mount-
ing screws.
2. Pull assembly down and disconnect wires.
NOTE: When reassembling, take care not to pinch
or kink ribbon cable, and be sure to test for proper
control panel / dispenser assembly operation before
leaving.
#3758407 - Revision B - August, 2006
Built-In
Built-In
(600-
(600-

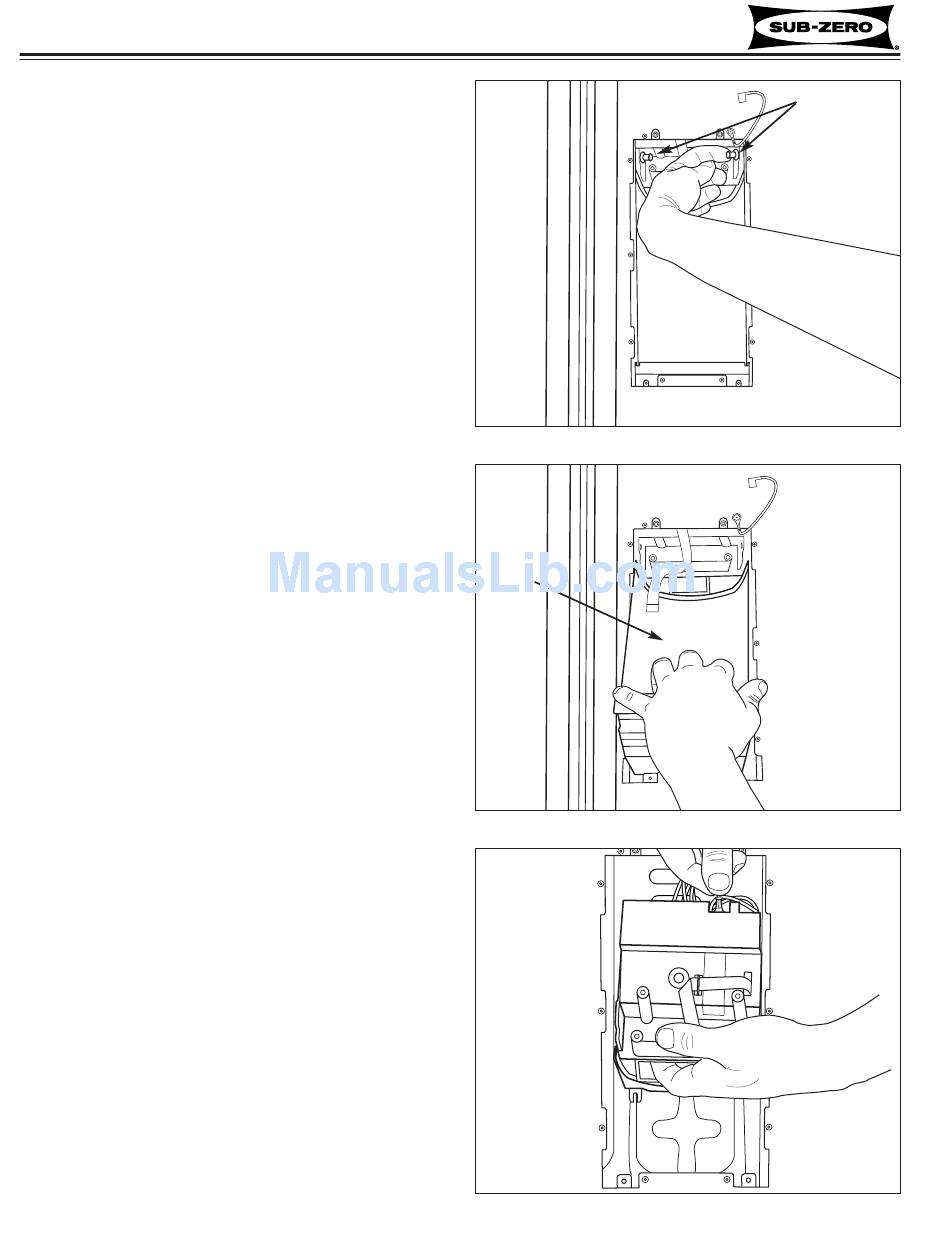

Figure 7-20. Glasswell Liner/Sump
Liner &
Sump
Figure 7-21. Dispenser Assembly
Extract
screws, pull
assembly
down and
disconnect
wires.
Figure 7-22. Dispenser Assembly
7-10
Series
Series
2
2
)
)
Extract
plastic
rivets
Pull bottom
out while
lifting up
