Get to Know Your Saw

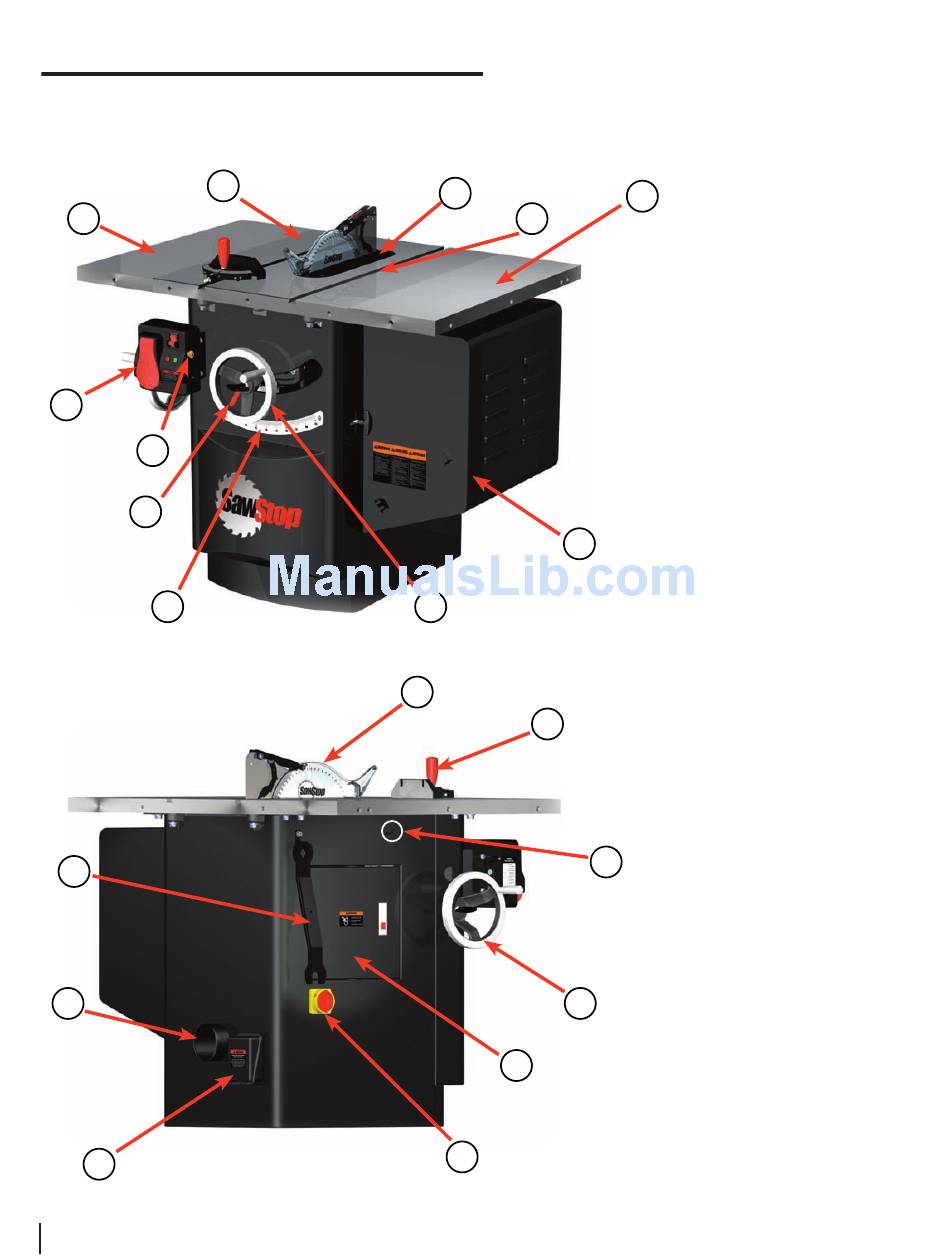

The major components of your saw are identified below. Make sure you can identify these components in order
to follow the instructions in this manual.
2
5
14
17
18
12
10
9
14 SawStop 10" Professional Cabinet Saw
1
Fig. 2
Fig. 3
4
16
8
6
3
11
7
13
19
2
External Components
1. Table Top
2. Extension Wings
3. Blade Guard
4. Standard Table Insert
5. Switch Box
6. Elevation Hand Wheel
7. Tilt Hand Wheel
8. Motor Cover
9. Terminal Box
10. Dust Port
11. Miter Gauge
12. Blade Wrenches (2)
13. Belt Access Door
14. Bypass Key
15. Spreader / Riving Knife
Storage Pin
15
16. Miter Gauge Slots
17. Tilt Angle Indicator
18. Tilt Angle Scale
19. Disconnect Switch
