CalAmp Guardian User Manual

Serial radio modem
Hide thumbs Also See for Guardian:
Table of Contents

Advertisement

Quick Links

Download this manual

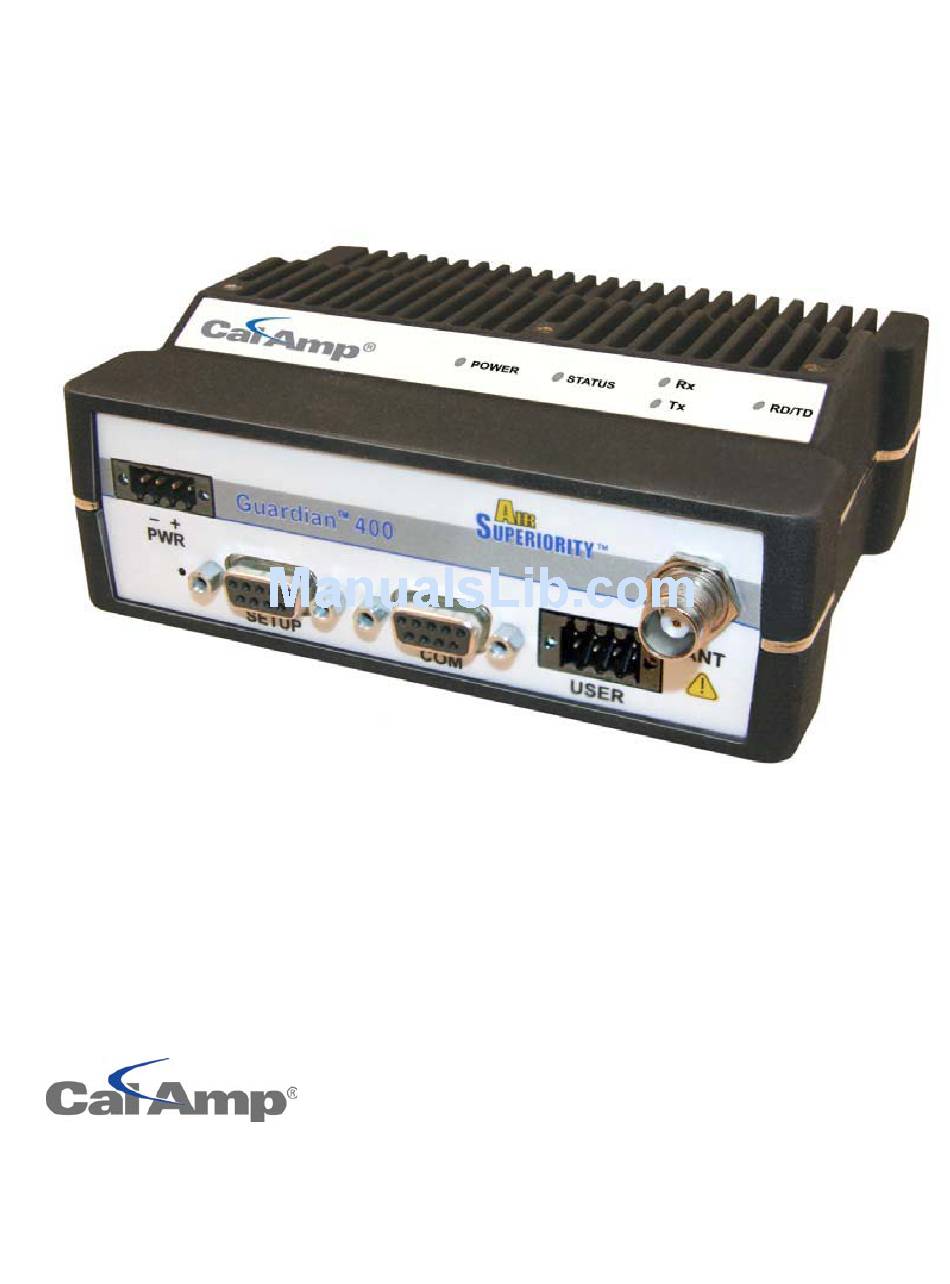

Guardian
™
SERIAL RADIO MODEM
User Manual
Guardian
Serial Radio Modem
™
PN 001-5006-000 Rev. 3
Revised April 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Guardian and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CalAmp Guardian

Summary of Contents for CalAmp Guardian

  • Page 1 Guardian ™ SERIAL RADIO MODEM User Manual Guardian Serial Radio Modem ™ PN 001-5006-000 Rev. 3 Revised April 2013...
  • Page 2 REVISION HISTORY DATE REVISION DETAILS July 2011 Initial release as 001-5006-000. August 2011 Added User Configuration section 5.1.3 Modem Mode. Added Link Configuration section 5.1.4 Modem Mode. Added User Configuration section 5.1.5 Loader Mode. Added Link Configuration section 5.1.6 Loader Mode. October 2012 Added UL Information.

  • Page 3: Important Notice

    Data may be delayed, corrupted (i.e. have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as CalAmp provides are used in a normal manner with a well- constructed network. These products should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury or death, or loss of property.
  • Page 4 Regulation Certifications The Guardian serial radio is available in several different models, each with unique frequency bands. Each model of Guardian may have different regulatory approval, as shown in the table below. Certifications Model Number Frequency Range IC (DOC) 140-5016-500 136 –...

  • Page 5: Table Of Contents

    Omni-Directional Antenna .......................... 15 2.6.3 Yagi Antenna ............................... 15 2.6.4 Vertical Dipoles ............................15 2.6.5 Feedline ..............................15 2.6.6 RF Exposure Compliance Requirements ..................... 16 | Page iii Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 6 5.12 Writing and Reading Guardian Configuration Parameters .................. 41 5.13 Diagnostic IDs, Alarms and Filters ........................42 5.14 Offline Link Test ..............................44 5.15 Offline Diagnostics ............................... 45 | Page iv Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 7 Programming and Setup ..............................82 Link Configuration ................................85 Installation ..................................88 APPENDIX E — Service And Support And Warranty Statement ............90 Warranty Statement ............................... 91 | Page v Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 8: Guardian Overview

    These features provide system benefits that give users Rugged Packaging Guardian is housed in a compact and rugged cast aluminum case. Built for industrial applications in a variety of environments, Guardian operates over an extended temperature range and provides worry-free operation in the roughest environments.

  • Page 9: Link Configurations

    LINK CONFIGURATIONS The Guardian allows you to program up to eight (8) different link configurations. You may choose which configuration you are using by selecting the appropriate link configuration pins. Since the pins are internally pulled High, a No Connect (NC) will result in a High state. Tie the pin to Ground (GND) to pull it Low. See Table 3 for the User Interface Port.

  • Page 10: Physical Description

    PHYSICAL DESCRIPTION Guardian consists of two PCBs, one that includes the modem circuitry and the other the radio module. Both are installed in a cast aluminum case. The unit is not hermetically sealed and should be mounted in a suitable enclosure when dust, moisture, and/or a corrosive atmosphere are anticipated.

  • Page 11: User Interface Port

    When RS-422 or RS-485 is configured. For Half-Duplex (2 wire) connections, connect pin 1 (RxB/RxD+) to pin 2 (TxB/TxD+) and pin 3 (RxA/RxD-) to pin 4 (TxA/TxD-). | Page 4 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 12: Setup And Com Ports

    Serial port considerations • Guardian radio modem SETUP and COM ports are Data Communication Equipment (DCE) devices • In general, equipment connected to the Guardian’s SETUP / COM serial port is Data Terminal Equipment (DTE) and a straight-through cable is recommended.

  • Page 13: Power Connector

    White Note: The white Enable line must be tied to the red positive lead of the connector for the Guardian to power up. Bringing the Enable line low is a request for the unit to power down. If the unit is writing to any non-volatile memory, it will complete the operation before powering down.

  • Page 14: Chassis Dimensions

    450 - 512 MHz 140-5096-501 Dual-Port 900 MHz Guardian 900* 928 - 960 MHz * Dual-Port 900 MHz Guardian does not support Full-Duplex operation. | Page 7 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 15: Accessories And Options

    1.5.2 ACCESSORIES AND OPTIONS The following tables list Guardian Demo Kits and standard accessories tested and approved for use with the Guardian. Table 7 Guardian Demo Kits Description Part Number Guardian 100 Demo Kit* – VHF – 136-174 MHz 250-5016-500 Guardian 200 Demo Kit* –...

  • Page 16: System Architecture And Network Planning

    SCADA systems include energy utilities, water and wastewater utilities, and environmental groups. The Guardian is intended for use in the Industrial Monitoring and SCADA market. The range of the Guardian is dependent on terrain, RF (radio frequency) path obstacles, and antenna system design. This section provides tips for selecting an appropriate site, choosing an antenna system, and reducing the chance of harmful interference.

  • Page 17: Point-To-Multipoint

    The device is typically an RTU or PLC used by the message service to store the received message then it transmits the message to the intended recipient. | Page 10 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 18: Network Using A Guardian For Online Diagnostics

    (best if using a Master Station Antenna System). Online diagnostics are accumulated in the monitoring Guardian for the last 15 stations heard. This information may be viewed using the Online Diagnostics utility. For larger networks, the Guardian can output raw diagnostic data through the Setup port which may be interpreted for network management by the Field Programming Software Online Diagnostics utility or by a user-supplied software program.

  • Page 19: Site Survey

    The combination of a DC open antenna and a DC blocked gas discharge tube lightning arrestor creates a situation where static charge can build up slowly on the active element of the antenna. Static charge can be created by wind | Page 12 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 20 Figure 9 Voltage Transient immediately after the gas tube turns on During testing, transients were measured on the antenna port of CalAmp’s Viper at voltage levels up to +/-280V. These voltage transients often have high frequency content that can easily pass through any filtering in the radio and damage components in the transmitter and receiver circuitry.

  • Page 21: Good Design Practices

    SELECTING ANTENNA AND FEEDLINE The Guardian can be used with a variety of antenna types. The exact style used depends on the physical size and layout of a system. The Guardian device has been tested and approved with antennas having a maximum gain of 10 dBi.

  • Page 22: Omni-Directional Antenna

    The cable should be kept as short as possible to minimize signal loss. See the following table for a list of feedline recommendations. | Page 15 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 23: Rf Exposure Compliance Requirements

    2.6.6 RF EXPOSURE COMPLIANCE REQUIREMENTS The Guardian radio is intended for use in the Industrial Monitoring and Control and SCADA markets. The Guardian unit must be professionally installed and must ensure a minimum separation distance listed in the table below between the radiating structure and any person.

  • Page 24: Terrain And Signal Strength

    Approximately 99.9% reliability with high tolerance to fading. RADIO INTERFERENCE Interference is possible in any radio system. However, since the Guardian is designed for use in a licensed system, interference is less likely because geographic location and existing operating frequencies are normally taken into account when allocating frequencies.

  • Page 25: Setup And Configuration

    Primary power for the Guardian must be within 10-30 VDC and be capable of providing a minimum of 10 watt supply for the Tx at 1 W, 40 watt supply for Tx at 5 W, or 60 watt supply for Tx at 10 W. (In Guardian Demo Kits, a power supply with spring terminals is provided with each unit.) Observe proper polarity when connecting the cables to the...

  • Page 26: Connect Guardian To Programming Pc

    3. Remove Insertion Tool. Check wire connection. CONNECT GUARDIAN TO PROGRAMMING PC Connection to a Guardian is established through an RS-232 (straight through) or (non-null) cable connected to the setup port of the Guardian and the COM port of the PC.

  • Page 27: Unit Status

    Short ID numbers to avoid ambiguity in Online Diagnostics reports. The Guardian Field Programming Software may be used to check the value of the Short ID. When setting up a network, we recommend checking each unit to make sure there is no duplication of Short ID numbers. Duplications may be resolved by changing the Long ID Number.

  • Page 28: Online Diagnostics

    Online Diagnostics (statistics) require the use of a network configuration such as that specified in the “Network Using a Guardian for Online Diagnostics” section 2.2.6. Online diagnostics do not interfere with normal network operation. Online diagnostics provide four types of information.

  • Page 29: Guardian Field Programming Software

    The Guardian Field Programming Software provides programming and diagnostics for the Guardian wireless modem. The Field Programming Software allows the user to edit and program user programmable settings, interactively tune modem and RF parameters, and monitor diagnostic data from the Guardian. See the following figure for the Guardian Field Programming Software startup window.

  • Page 30: Port Settings

    Figure 13 Guardian Programmer Window Guardian programming is through the PC’s Primary COM Port. Primary and secondary COM ports are configured with the Field Programming Software. The programming cable (included in the Demo Kit) is connected from the Setup Port on the Guardian to the PC’s COM port configured as the Primary Port.

  • Page 31: Primary And Secondary Port Settings Communications Modes

    Clicking the Swap Com Ports button moves the Secondary COM Port settings to the Primary COM Port (and moves the Primary COM Port to the Secondary settings). Since Guardian programming is done through the Primary COM Port, this is useful when two units are connected to the Primary and Secondary COM Ports. A Swap COM Ports allows the second unit to be programmed without switching programming cables.

  • Page 32: Port Statistics

    Bytes Received shows the number of bytes (characters) received since the port was last opened or cleared. Framing Errors Framing Errors shows the number of Framing Errors received since the port was last opened or cleared. | Page 25 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 33: User Configuration - Modem Mode

    Comments are text up to 80 characters including spaces. Mode Selects whether the Guardian will operate as a Digital Modem or an Analog Loader. Long ID The electronic ID Number is a unique number assigned at the factory. This number may be changed in the case of duplication by unchecking the Default Long ID check box.
  • Page 34 This field is used to set the Station ID (CWID) or FCC Call Sign for the Guardian Modem. If enabled, the Guardian will transmit the CWID string as Morse Code at the time interval chosen on the slider. A time interval between 1 and 255 minutes is available.

  • Page 35: Link Configuration - Modem Mode

    Read Guardian Click to read the configuration file from the Guardian and update the display. Same as pressing the F9 key. Write Guardian Click to write the current configuration to the Guardian’s flash memory. Same as pressing the F10 key.
  • Page 36 Figure 18 Link Configuration Window Default Tab – Modem Mode This tab is used to set all of the Guardian Modem’s default settings. The default settings will be used in any of the 8 links where the Default check boxes are checked.

  • Page 37: Modem Settings

    • Received Signal Strength (in dBm) Output Online Diagnostic Data to Setup Port Allows the user to configure the Guardian Modem to output online diagnostics through the Setup Port. The default value is Disabled (unchecked). Repeater Mode (Extended T1 RTS-CTS) The Repeater Mode option extends transmitter turn-on time to allow use in a repeater network.

  • Page 38: Rf Link

    (i.e., fading in a moving vehicle) causes problems. Carrier Detect On Threshold The sliding control allows the user to set the minimum RSSI level that the Guardian Modem will recognize as a valid carrier and begin decoding data. 5.6.2 RF LINK The RF Link panel provides the interface for programming various radio operating parameters.

  • Page 39: Com Port

    The Default is T-96SR/TSLM/Guardian. 5.6.3 COM PORT Figure 21 COM Port Panel Port Baud Rate This field selects the Guardian COM Port baud rate. | Page 32 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 40: User Port Configuration - Modem Mode

    Select Even, Odd, Mark, Space, or None to identify the sum of bits for the Guardian COM Port. The Default is None. Stop Bits Select 1 or 2 to mark the end of the serial port data byte for the Guardian COM Port. The Default is 1. Serial Standard Select RS-232 to use the RS-232 interface for the Guardian COM port for incoming and outgoing data.
  • Page 41 Active Low by checking the Inverted Carrier Detect check box on the Link Configuration window. • PTT In: Pin will be programmed as a Push to Talk (PTT) Input that will cause the Guardian to begin transmitting. PTT In is normally Active Low, but can be changed to Active High by checking the Inverted PTT check box on the Link Configuration window.

  • Page 42: User Configuration - Loader Mode

    RF Link programmed in the Link Configuration window. Pins are internally pulled high. • I/O Port Voltage: Programs the input and output voltage of the pins on the Guardian User Port. Valid voltage range is from 3.3 - 5.0V. Default is 3.3V.
  • Page 43 (CWID) or FCC Call Sign for the Guardian Modem. If enabled, the Guardian will transmit the CWID string as Morse Code at the time interval selected by using the slider. A time interval between 1 and 255 minutes is available.

  • Page 44: Link Configuration - Loader Mode

    Figure 24 Link Configuration Window – Loader Mode Link 1 – 8: These tabs are used to set the different programmable options for each of the Guardian’s programmable links. Each link is capable of using the settings from the Default tab by checking the Default check box, or of saving its own individual custom settings.

  • Page 45: Rf Link

    Figure 25 Link Configuration Window Default Tab – Loader Mode Default Link: This tab is used to set all of the Guardian’s default settings. The default settings will be used in any of the 8 links where the Default check boxes are checked.

  • Page 46: Loader Settings

    Squelch / Carrier Controlled Mute This option will mute the Guardian’s audio output when there is no valid RF carrier signal. A valid RF carrier signal is determined by the Carrier Detect on setting that is programmed with the slider. The default value is Disabled (Unchecked).

  • Page 47: User Port Configuration - Loader Mode

    RSSI Out: Pin will be programmed as a Receive Signal Strength Indicator Output. A voltage representing the strength of the Guardian’s received RF signal will be output from the pin. | Page 40 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 48: Version Request

    Active Low by checking the Inverted Carrier Detect check box on the Link Configuration window. PTT In: Pin will be programmed as a Push to Talk (PTT) Input that will cause the Guardian to begin transmitting. PTT In is normally Active Low, but can be changed to Active High by checking the Inverted PTT check box on the Link Configuration window.

  • Page 49: Diagnostic Ids, Alarms And Filters

    Guardian configurations so they can be easily written into multiple Guardian Modems. Note: CalAmp recommends a Read be done anytime an initial connection is made to the Guardian Setup Port before accessing the Link Configuration window. This will help avoid writing erroneous parameters to the connected unit. A “Read Guardian”...
  • Page 50 Low/High Rev Pwr: Represents the low and high limits for the Reverse Power diagnostics (in watts). Open The Open button allows the user to restore Diagnostics IDs, Alarms and Filters from a previously saved file. | Page 43 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 51: Offline Link Test

    Displays the number of data blocks received from the remote unit. Link Quality Displays the ratio of data blocks received to data blocks transmitted (in %). | Page 44 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 52: Offline Diagnostics

    Offline Diagnostics are returned from a local or remote unit in response to a Get Diags/Stats request (see the following figure). Note: An Offline Diagnostics request requires suspension of user network operation. Figure 31 Offline Diagnostics Window | Page 45 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 53 The Remote ID is selected from the list of Remote IDs set up in the Diagnostics IDs, Alarms and Filters window. Diagnostic Select Selected Remote ID This button allows the user to gather Offline Diagnostics from the selected Remote ID only. | Page 46 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 54: Online Diagnostics

    Displays the progress of obtaining Remote Diagnostics. Tx Tone The Tx Tone button will send a remote or local command to cause the Guardian to transmit a tone. This can be used to create network traffic so that offline diagnostics of remotes can be monitored.
  • Page 55 Allows the user to filter Short IDs. The following options are available: • Off (All IDs): No IDs are filtered out. • ID List: Only the IDs in the Filter ID List are shown. | Page 48 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 56: Packet Test

    The Save button allows the user to save the current Online Diagnostics to a file. A maximum of 4096 lines of data can be saved. 5.17 PACKET TEST The Packet Test window is accessed from the Utilities menu. Figure 33 Packet Test Window | Page 49 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 57 Remote device. This option requires a computer with 2 COM ports. Host/Remote (1 Port using a Y-cable): Configures the primary COM port as the Host and Remote device. | Page 50 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 58: Array Test

    # of Packets to Send Allows the user to set the total number of packets to send before stopping. (Field range is 0 to unlimited.) | Page 51 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 59 • Random Binary Pattern: The packets will be 16 characters in length and contain random binary data. # of Packets # of Packets allows the user to set the number of packets in each transmission. | Page 52 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 60: Ascii / Hex Terminal

    The Secondary Hex Terminal window selects a Hexadecimal Terminal window to send and receive Hexadecimal data on the Secondary COM Port (set up in the Port Settings window). | Page 53 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 61: Guardian Firmware And Configuration

    Guardian Modem. The Guardian Configuration section is used to read or program a configuration file (*.CFG) to or from a Guardian Modem. This is useful for programming a previously saved configuration file (see section 5.12 Writing and Reading Guardian Configuration Parameters) into the Guardian Modem or to replicate a configuration across a number of Guardian Modems.

  • Page 62: End To End Test

    Guardians being tested. The Guardian modems must be set up so that they have the appropriate receive and transmit signal levels for the test. The signal strength will be much stronger if the units are tested on the bench compared to being tested in a field installation.
  • Page 63 If the message was not displayed as typed, then a problem may exist in the system. Check all parameters and connections in the system. The signal level should also be checked again. The Guardian’s Link Test utility can be used to verify a communication path.

  • Page 64: Guardian Specifications

    Per FCC Regulatory Conducted Spurious Emissions Per FCC Regulatory Transmitter Stability into VSWR > 10:1 (Power Foldback Allowed) Rx to Tx Time < 2 ms (Standard) | Page 57 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 65 140-5046-30x 4800 4800 Data Rate (Selectable) 9600 9600 19200 140-5046-50x 4800 4800 9600 9600 19200 140-5096-50x 4800 4800 9600 9600 19200 Modulation Type 2FSK | Page 58 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 66 All models UL approved when powered with a listed Class 2 source. This device is suitable for use in Class I, Division 2, Group A, B, C and D or non-hazardous locations only. | Page 59 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 67: Appendix A - Abbreviations And Definitions

    TNC connector: Threaded Neill-Councelman connector States) Tx: Transmit FPS: Field Programming Software VDC: Voltage, Direct Current FSK: Frequency-Shift Keying, an electronic communications modulation scheme | Page 60 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 68: Appendix B - Guardian And Dl-3400 Interoperability

    The Guardian serial radio modem can operate at VHF, 200 MHz, UHF, and 900 MHz frequencies. The radio will operate at 25 kHz of bandwidth or 12.5 kHz of bandwidth. The user can select the operating mode by using the Guardian FPS (Field Programming Software) and selecting the proper bandwidth.

  • Page 69: Programming And Setup

    Master and Remote configuration. The first step in adding a Guardian into an existing system is to read the parameters of the DL-3400. Log parameter settings so that a thorough record is available for programming the Guardian. See the following figures.
  • Page 70 Audio Mode Settings. Note PTT and CD Polarity Settings. Figure 40 DL-3400 Setup Parameters – Frequencies Note Frequency Settings. DL-3400 Defaults to Channel 1. | Page 63 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 71: Set Guardian Parameters

    - Handshaking should be set to Buffered with no HS. With the Guardian connected to a proper power source, antenna terminated, and programming cable connected to the Setup port of the Guardian, click Config (at the upper left corner of the programming window) to access the Guardian Configuration window.
  • Page 72 • See the Loader mode Figure that follows. - There is a feature of the Guardian that allows the radio to be used as a modem (T-96SR compatible) or to be used as an analog radio (DL-3400 compatible). For this application only the Loader mode will be used.

  • Page 73: Link Configuration

    Unlike the DL-3400 where all eight channels were programmed one channel at a time, the Guardian has a Default tab where you can select settings that will be default selections for all eight link channels, making it easy to set all eight channels simultaneously (as shown in the previous figure).
  • Page 74 The following table shows user interface pin functions in reference to the DL-3400 wiring and cable color code. | Page 67 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 75: Programming

    Pin 8 Note: The Guardian provides for 8 channel selection on the User Interface port. The DL-3400 allows selection of Channel 1 or 2 on the 10 pin user interface connector. The remaining channel selection is done using 3 pins on the DE-9 programming connector of the DL-3400.
  • Page 76 Click Write Guardian to program radio or, alternatively, press [F10]. Programming of the Guardian is very fast. The message “Guardian Configuration Write Complete” appears. Click OK. Figure 47 Guardian Configuration Write Complete The Guardian has now been configured and is ready for installation.

  • Page 77: Installation

    If location, heat dissipation, or duty cycle are a concern, the addition of the Guardian Fan Kit may be considered. See Table 9 for a list of fan kits that are available for use with the Guardian.

  • Page 78: Appendix C - Guardian And Dl-3282 Modem Interface

    The Guardian Wireless Modem/Analog Radio can operate at VHF, 200 MHz, UHF, and 900 MHz frequencies. The radio will operate at 25 kHz or 25 kHz of bandwidth. The Guardian will operate as a modem or analog radio. The user can select the operating mode by using the Guardian FPS (Field Programming Software) and selecting the proper bandwidth and mode of operation.

  • Page 79: Programming And Setup

    Once the parameters for the existing DL-3400 have been logged, connect the Guardian to the proper power supply voltage (10-30 VDC 60 watt maximum at 10 watt RF power). Connect the DE-9 to DE-9 data cable (CalAmp PN 697- 4008-408 or equivalent) to the Guardian Setup port.
  • Page 80 Morse code. - The Guardian Rx and Tx audio levels are preset to match the DL-3400 factory levels. These can be adjusted as necessary for the user’s application. Refer to Chapter 5 Guardian Field Programming Software in this User Manual for additional information.
  • Page 81 - There is a feature of the Guardian that allows the radio to be used as a modem (T-96SR compatible) or to be used as an analog radio (DL-3400 compatible). For this application only the Loader mode will be used.
  • Page 82 -0-5 VDC change when an RF signal is present. The following table shows user interface pin functions in reference to the DL-3400 wiring and cable PN 023-3410-109 wire color code. | Page 75 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 83 Channel 1 or 2 on the 10 pin user interface connector. The remaining channel selection is done using 3 pins on the DE-9 programming connector of the DL-3400. Programming There are two options for programming the Guardian: click the Write Guardian button or press the [F10] key on the computer keyboard. See the following figure. | Page 76...

  • Page 84: Dl-3282 Interface To Guardian

    Figure 54 Guardian Configuration Write Complete The Guardian has now been configured and is ready for installation. DL-3282 INTERFACE TO GUARDIAN The DL-3282 modem is connected to the Guardian using the 10-pin ribbon cable connection J102. See the following figure. | Page 77...
  • Page 85 Interface wiring from the DL-3282 modem to the Guardian is accomplished by connecting the cable PN 023-3410-109 to the Guardian User Port interface connector as shown in Figure 56 which follows. This figure is not to scale and is for reference only.
  • Page 86 Actual cable length and modem location will vary by application. The modem is shown fastened to the top of the Guardian using a #6-32 × 3/8 in. button head cap screw. This shows one possible way to mount the modem to the Guardian.

  • Page 87: Programming And Operational Hints

    - Ensure that Pin 4 of the User Port interface is set for CD output. Note: The Guardian can operate from 10 to 30 VDC. The DL-3282 modem can operate from 7 to 16 VDC. Care must be taken to prevent overvoltage damage to the DL-3282 modem.

  • Page 88: Appendix D - Guardian And T-96Sr Interoperability

    The Guardian wireless modem can operate in the VHF, 200 MHz, UHF, and 900 MHz frequency bands. The radio will operate at 25 kHz or 12.5 kHz of bandwidth. The user can select the operating mode by using the Guardian FPS (Field Programming Software) and selecting the proper bandwidth.

  • Page 89: Programming And Setup

    • The PN 697-0000-001 cable could be removed and the PCL/RTU can be connected directly to the radio. • If cable length is an issue, a short DE-9 to DE-9 cable can be added between the PLC/RTU and the Guardian radio.
  • Page 90 Note how all data settings are selected. Figure 61 T-96SR Setup Parameters – Radio Note Radio Range and Bandwidth Note Carrier Detect settings | Page 83 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...
  • Page 91 - Handshaking should be set to Buffered with no HS. With the Guardian connected to proper power source, antenna terminated, and programming cable connected to the Setup port of the Guardian, click Config (at the upper left corner of the programming window) to access the Guardian Configuration window.

  • Page 92: Link Configuration

    See the previous figure. - There is a new feature added to the Guardian that allows the radio to be used as a modem (T-96SR compatible) or to be used as an analog radio (DL-3400 compatible). For this application only the “Modem” mode will be used (previous figure).
  • Page 93 - Set the Tx Power Output to the desired power level: 1-10 Watts. - The Guardian allows for the OTA data settings to be different from the user COM port settings. Care must be taken to ensure the OTA settings are the same as the T-96SR system settings.
  • Page 94 Important: When all parameters are selected and verified to be correct, click Save Changes at the bottom of the Link Configuration window to save the changes. The Link Configuration window will close. There are two options for programming the Guardian: click the Write Guardian button or press the [F10] key on the computer keyboard. See the following figure.

  • Page 95: Installation

    If location, heat dissipation, or duty cycle are a concern, the addition of the Guardian Fan Kit may be considered. See Table 9 for a list of fan kits that are available for use with the Guardian.
  • Page 96 - Pin 5 Signal Ground – RS-232 ground and also radio/modem chassis ground potential. For technical assistance, contact CalAmp Wireless Network Group Technical Service at wngsupport@calamp.com. | Page 89 Guardian™ Serial Modem or Analog Radio for Licensed Spectrum PN 001-5006-000 Rev. 3...

  • Page 97: Appendix E - Service And Support And Warranty Statement

    Product Warranty, RMA, and Contact Information CalAmp guarantees that every Guardian radio modem will be free from physical defects in material and workmanship for one (1) year from the date of purchase when used within the limits set forth in the specifications section of this manual.

  • Page 98: Warranty Statement

    ("Products") are free from defects in material and workmanship and will conform to published technical specifications for a period of, except as noted below, one (1) year from the date of shipment to Buyer. CalAmp makes no warranty with respect to any equipment not manufactured by CalAmp, and any such equipment shall carry the original equipment manufacturer’s warranty only.
  • Page 99 CalAmp delivers cost-effective high quality solutions to a broad array of customers and end markets. CalAmp is the leading supplier of Direct Broadcast Satellite (DBS) outdoor customer premise equipment to the U.S. satellite television market. The Company also provides wireless data communication solutions for the telemetry and asset tracking markets, private wireless networks, railroad Positive Train Control (PTC) radio transceivers, public safety communications and critical infrastructure and process control applications.
