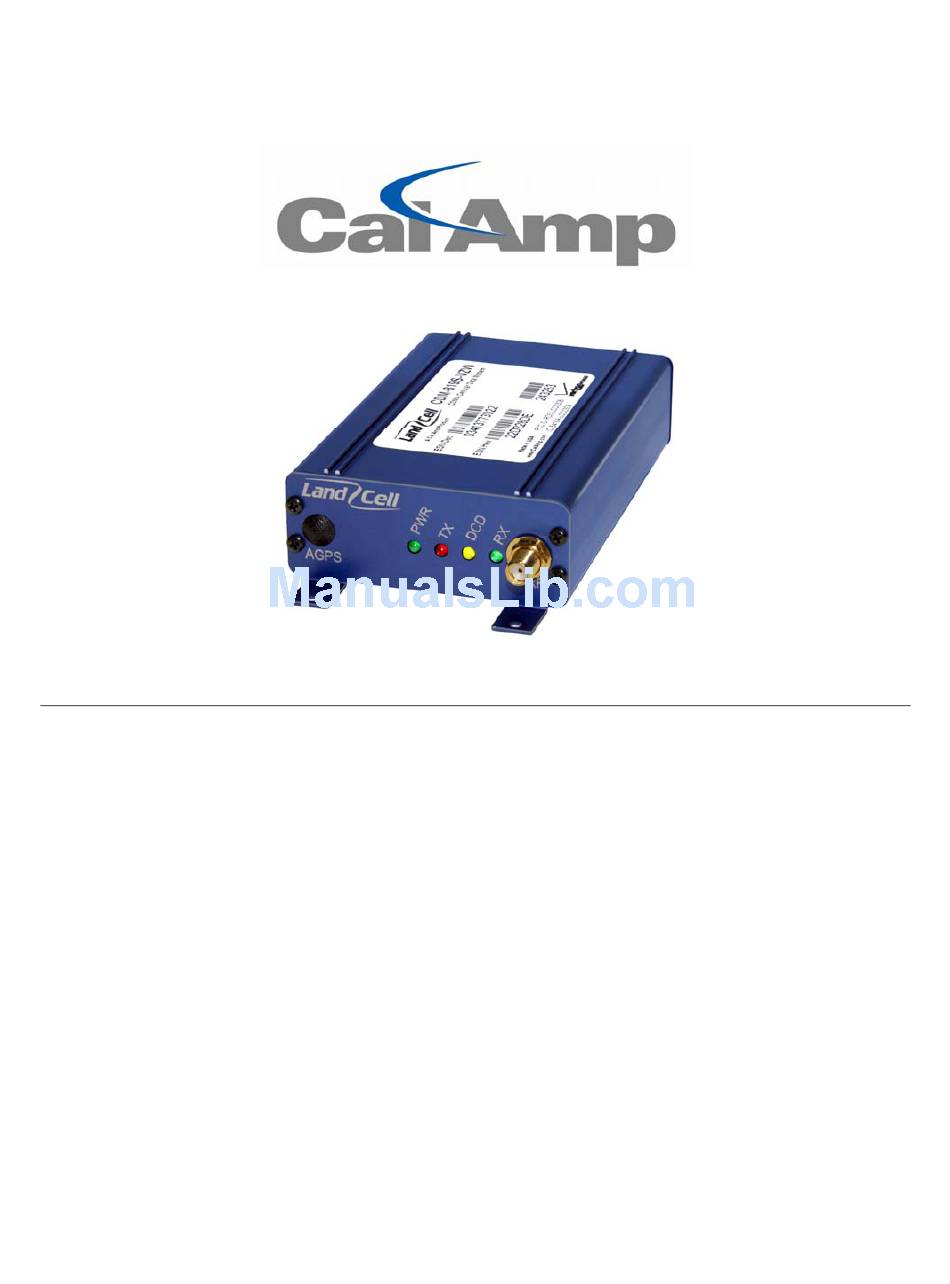

- Page 1 LandCell™ 819‐1XRT Modem ‐ ‐ ‐ ‐ CDMA 1xRTT Serial Cellular Data Modem Quick Start Guide 004‐0003‐819 Rev 2 Released January 2008 Updated February 2008 ...
-
Page 2: Copyright Notice
819‐1XRT Serial Cellular Data Modem COPYRIGHT NOTICE © Copyright CalAmp. All Rights Reserved. 2008 Industrial & Monitoring Control Division, 299 Johnson Ave., Ste 110, Waseca, MN 56093 Tel 507.833.8819 Fax 507.833.6748 Email landcell@calamp.com This Quick Start covers the operation of the LandCell™ 819‐1XRT CDMA Cellular Data Modems. Specifications described are typical only and are subject to normal manufacturing and service tolerances. CalAmp reserves the right to modify the equipment, its specification or this Quick Start without prior notice, in the interest of improving performance, reliability or servicing. At the time of publication all data is correct for the operation of the equipment at the voltage and/or temperature referred to. Performance data indicates typical values related to the particular product. No part of this documentation or information supplied may be divulged to any third party without the express written consent of CalAmp. Products offered may contain software which is proprietary to CalAmp. The offer or supply of these products and services does not include or infer any transfer of ownership. TECHNICAL SUPPORT Our technical support staff is available Monday through Friday from 7:30 AM to 4:30 PM CDT via telephone at 507.833.8819; fax 507.833.6758 or email supportIMC@calamp.com. Visit www.calamp.com to download product documentation and software drivers. 2 ... -
Page 3: Modem Use
819‐1XRT Serial Cellular Data Modem GENERAL This guide details quick activation of the LandCell™ 819‐1XRT modem. The following modem setup examples apply for Windows 98, Me, NT, 2000 & XP®. Due to the divergent graphical interfaces of these different operating systems, there may or may not be an extra step to follow (e.g. an additional procedure to open a program from the Start Menu). This guide is optimized for Windows XP Professional. The 819‐1XRT is available for CDMA cellular networks. Please refer to the respective manual for further details. MODEM USE The LandCell™ 819‐1XRT cellular modem is designed and intended for use in fixed and mobile applications. “Fixed” assumes the device is physically secured at one location and not easily moved to another location. The 819‐1XRT would be routinely relocated in a mobile application. Please keep the cellular antenna of the 819‐1XRT at a safe distance from your head and body while the modem is in use (see below). IMPORTANT NOTICE Maintain a distance of at least 20 cm (8 inches) between the transmitter’s antenna and any person while in use. This modem is designed for use in applications that observe the 20 cm separation distance. MOBILE APPLICATION SAFETY Do not operate the LandCell™ 819‐1XRT modems while driving. Road safety is crucial. Observe National Regulations for cellular telephones and devices in vehicles Avoid potential interference with vehicle electronics by correctly installing the modem. We recommend installation by a professional INTERFERENCE ISSUES Avoid possible radio frequency (RF) interference by following the following guidelines: The use of cellular telephones or devices in aircraft is illegal. Use in aircraft may endanger operation and disrupt the cellular network. Failure to observe this restriction may result in suspension or denial of cellular services to the offender, legal action or both Do not operate in the vicinity of gasoline or diesel‐fuel pumps unless use has been approved and authorized ... -
Page 4: Package Contents
819‐1XRT Serial Cellular Data Modem Do not operate in locations where medical equipment that the device could interfere with may be in use Do not operate in fuel depots, chemical plants, or blasting areas unless use has been approved and authorized Use care if operating in the vicinity of protected personal medical devices, i.e., hearing aids and pacemakers Operation in the presence of other electronic equipment may cause interference if equipment is incorrectly protected. Follow recommendations for installation from equipment manufacturers PACKAGE CONTENTS One (1) 819‐1XRT Cellular Modem One (1) Product Documentation Card USER SUPPLIED CONTENTS A user‐provided PC running MS Windows An antenna A 9‐28 VDC @ 18W (12 VDC, 1.5A) Power Supply An interface cable 4 ... -
Page 5: Front Panel Led Indicators
819‐1XRT Serial Cellular Data Modem LANDCELL PRODUCTS AND ACCESSORIES PRODUCT DESCRIPTION CATALOG NO. 819‐1XRT CDMA 1xRTT Data Modem 819‐1XRT‐XXX* 4” Antenna L2‐ANT0001 Antenna 3” Mag Mount Antenna L2‐ANT0003 110 VAC input L2‐PWR0001 Power Supply DC Power Cable L2‐PWR0002 Interface Cables Serial Cable L2‐CAB0002 AGPS Option Installed AGPS antenna connector 823‐7500‐501 *XXX‐carrier identifier FRONT PANEL LED INDICATORS Green PWR Power LED Red TX Transmit/Receive Amber DCD Carrier Detect Green RX Received Signal Strength Indicator (RSSI) ... -
Page 6: Front Panel Connections
819‐1XRT Serial Cellular Data Modem FRONT PANEL CONNECTIONS RF Female SMA AGPS Female SMA (optional) BACK PANEL CONNECTIONS Power Jack 2.1x5.5mm DC barrel (Center Positive) RS‐232 Serial Port, Standard DE‐9 female SETTING UP THE 819‐1XRT MODEM USING THE 819‐1XRT CDMA DRIVER: You may download all necessary modem driver files from our website at www.calamp.com. If you are installing the modem using the drivers from the website, refer to the steps listed in the 819‐1XRT User Manual. SETTING UP THE 819‐1XRT USING NATIVE WINDOWS DRIVERS: 1. Go to the Control Panel and select Phone and Modem Options. 2. Select the Modem Tab. Select Add... and follow the Wizard. Check Don’t Detect My Modem. 3. Select Standard 19200 bps Modem. Click Next. 4. Assign the modem to the COM connected to modem. Click Next. 5. Click Finish. 6 ... -
Page 7: Configuring The Modem
819‐1XRT Serial Cellular Data Modem CONFIGURING THE MODEM 1. Click on Start → Settings → Control Panel. Select Phone and Modem Options. 2. Click New. 3. In Location Name, enter a name to distinguish this connection (i.e., 819‐1XRT). Type your area code in the Area Code box. 4. Click Apply and OK. The window should exit out to the Phone and Modem Options box. 5. Click the tab at the top titled Modems. Select the Standard 19200 bps Modem (or the Kyocera High‐Speed Modem if you installed using the driver from the website) and click Properties. 6. Click the Modem Tab at the top of this new box. The box titled Maximum Port Speed should read: 115200. If not, scroll down to Select 115200. Click OK. Click Apply. Click OK. OPERATIONAL STATES The modem has three operational states: Command State Online State Online Command State When first powered on, the modem is in the Command State where it is able to accept AT commands. When instructed to dial out or to answer a data call, the phone is in the Online State. ACTIVATING YOUR MODEM 1. Connect the modem to an active COM port on a PC with an RS‐232 9 pin straight through cable. 2. Attach the antenna and power connector. 3. Connect with a Hyper‐Terminal session set to 115,200, 8 Bits, No Parity, 1 Stop Bit, and Hardware Flow Control enabled. Refer to Figure 1. ... - Page 8 819‐1XRT Serial Cellular Data Modem Figure 1: 819‐1XRT HyperTerminal Port Settings 4. Confirm contact with the modem with AT+GSN. This prints out the ESN of the modem i.e. (+GSN: 45262036). If you get an Error or no communication message, verify the modem is connected to the proper COM port and powered on. See Figure 2. 5. Verify good signal strength with AT+CSQ?. A typical reply is +CSQ? 19,99. Signal strength ranges from 0 to 31, the higher the number the stronger the signal. 6. Confirm your registration on the cellular network with AT+CSS?. A reply of +CSS? 2,Z,99999 indicates you are not registered. It may take up to 15 seconds after power‐up to register on the network. Once registered, a typical response is +CSS?: 1,A,4152 where 1 is the band class, 1=800 MHz, 2=1900 MHz, A‐F is the band (Z indicates you are not registered on network), 4152 is the SID, i.e. the cell tower ID, (99999 indicates you are not registered on network). 7. Confirm the phone number currently in the modem with AT$KWDIR?. It should be 10 digits (i.e. 0000005555) prior to activation. 8. Perform the activation instructions specific to your carrier as indicated in Appendix 1: Subscriber Activation, (i.e., for Verizon, OTASP can be initiated with an AT command of AT+CDV*22899). Wait 2 minutes. 9. After the unit has been activated, verify programming success with AT$KWDIR?. It should now display your assigned number. 8 ...
- Page 9 819‐1XRT Serial Cellular Data Modem 10. You can also confirm the assigned PRL number with AT+GMR. Power cycle the modem. If your account supports voice, you can confirm modem activation by performing a voice call to your cell phone with AT+CDV<Cell Phone Number> (use no spaces or angle brackets). Your cell phone should ring and display the phone number of the modem. Figure 2: 819‐1XRT HyperTerminal Modem Activation Configuration and test of a Circuit Switch Data (CSD) call, and Packet Data Call (TCP/IP) are discussed in the user manual. ...
- Page 10 819‐1XRT Serial Cellular Data Modem STANDARD RS‐232 DE‐9 PINOUT Table 1: DE‐9 Pin Out Description (Direction is DTE relative to DCE) Pin Name Direction Description 1 CD ← Carrier Detect 2 RX ← Receive Data 3 TX → Transmit Data 4 DTR → Data Terminal Ready 5 GND System Ground 6 DSR ← Data Set Ready 7 RTS → Request to Send 8 CTS ← Clear to Send 9 ...
-
Page 11: Appendix 1: Subscriber Activation
819‐1XRT Serial Cellular Data Modem APPENDIX 1: SUBSCRIBER ACTIVATION Verizon Wireless Subscribers For Verizon Wireless subscribers residing in the United States, the standard provisioning procedure is by issuing the command AT+CDV*22899. If the modem will not provision and you have verified the serial number is activated with Verizon in their systems, manually key in the phone number. In cellular terminology, the Mobile Directory Number (MDN) number you call to connect to the modem is entered as described below. Enter these commands via your terminal emulation software: AT+GMR (Note the PRL Number) AT$KWMODE=1 AT$KWSPC=000000 AT$KWDIR=10‐Digit MDN Phone Number From Verizon (Without Hyphens) AT$KWMSID=10‐Digit (MIN) Number From Cellular Carrier (Without Hyphens). This only needs to be entered if different than the MDN. AT$KWMODE=2 AT+CDV*22899 After issuing the last AT+CDV*22899 command, let the modem sit uninterrupted for four minutes. After four minutes, remove the power supply jack from the modem, wait several seconds and reinsert it. Reconnect via terminal emulation and query the unit with these commands: AT$KWMODE? (returns online mode) AT$KWDIR? (returns modem’s phone number) AT+GMR (returns firmware version and PRL) If the PRL is different than before, OTASP has definitely occurred. Call your phone to test activation. When it rings, confirm the number matches, answer and hang‐up to disconnect the call. (Do not enter the angle brackets, just the cell phone number without spaces.) AT+CDV<Phone Number> ... - Page 12 819‐1XRT Serial Cellular Data Modem Sprint PCS Subscribers Sprint PCS uses IOTA (IP‐based Over The Air) for their Over‐the‐Air provisioning system. IOTA uses packet data calls to transfer the configuration data to the phone. These IOTA data sessions can be network initiated or client initiated. Network initiated IOTA is the preferred method. An automatic network initiated IOTA session occurs when the module first registers onto the Sprint network. This IOTA session is queued when Sprint originally sets up and 'activates' the account. In their current implementation, Sprint imposes a 72 hour expiration timer for this queued IOTA session. An IOTA session has a device time‐out of 15 minutes. If there is no success within 15 minutes, the status will change to fail and the module will stop trying. A normal IOTA session takes from 1 to 3 minutes. To register onto the network, the module needs a sufficient signal and must be manually provisioned with the MDN and MSID. The IOTA session will occur and populate the 3GPD parameters. If it is the first IOTA session, it is called a Network Initiated Initial Provisioning (NIIP.) NOTE: An IOTA session MUST occur while the device has a sufficient signal and is registered on the Sprint PCS Network. A session will not be successful if the device is out of coverage or not properly registered on the Sprint PCS network. Use the following commands to program the modem. AT$KWMODE=1 AT$KWSPC=Unlock/Activation Code (6 or 7 digits supplied by Sprint) AT$KWDIR=10‐Digit (MDN) Directory Phone Number From Cellular Carrier (Without Hyphens) AT$KWMSID=10‐Digit (MIN) Number From Cellular Carrier (Without Hyphens) This only needs to be entered if different than the MDN. AT$KWMODE=2 Power off the modem for 15 seconds. Power on the modem. Wait 5 to 10 minutes for the device to register on the network. Call your phone to test activation. When it rings, confirm the number matches, answer and hang‐up to disconnect the call. (Do not enter the angle brackets, just the cell phone number without spaces.) ...
- Page 13 819‐1XRT Serial Cellular Data Modem Alltel Subscribers Alltel uses both OTAPA and a manual process for provisioning modems. The OTAPA process for voice phones is not normally possible with a modem, so the manual process must be followed. The ESN is entered into their database and an MDN and MIN number are assigned to the account. The MDN is the number used to contact the modem. The MIN is an internal number used for cellular network routing. Most of the time these numbers are the same. It is very important to program these numbers correctly. If they are reversed, the modem will not work. The MIN is automatically loaded with the MDN number. Enter the MDN first. AT$KWMODE=1 AT$KWSPC=000000 AT$KWDIR=10‐Digit (MDN) Directory Phone Number From Cellular Carrier (Without Hyphens) AT$KWMSID=10‐Digit (MIN) Number From Cellular Carrier (Without Hyphens) This only needs to be entered if different than the MDN. AT$KWMODE=2 Call your phone to test activation. When it rings, confirm the number matches, answer and hang‐up to disconnect the call. (Do not enter the angle brackets, just the cell phone number without spaces.) AT+CDV<Phone Number> ...
- Page 14 819‐1XRT Serial Cellular Data Modem Telus (Canada) Subscribers The standard procedure to provision the modem is by issuing the command AT+CDV*22803. If the modem will not provision and you have verified with Telus the serial number is activated in their systems, manually key in the phone number. In cellular terminology, the number you call to connect to the modem is known as the Mobile Directory Number (MDN) and is entered as described below. Enter these commands via your terminal emulation software: AT+GMR (Note the PRL Number) AT$KWMODE=1 AT$KWSPC=000000 AT$KWDIR=10‐Digit MDN phone number from Telus (without hyphens) AT$KWMSID=10‐Digit (MSID/MIN) number from cellular carrier (without hyphens). This is required only if different than the MDN. AT$KWMODE=2 AT+CDV*22803 After issuing the last command listed above, let the modem sit uninterrupted for four minutes. After four minutes, remove the power supply jack from the modem. Wait for several seconds and reinsert it. Reconnect via terminal emulation and query the unit with these commands: AT$KWMODE? (returns online mode) AT$KWDIR? (returns modem’s phone number) AT+GMR (returns firmware version and PRL) If the PRL is different than before, OTASP has occurred. Call your phone to test activation. When it rings, confirm the number matches, answer and hang‐up to disconnect the call. (Do not enter the angle brackets, just the cell phone number without spaces.) AT+CDV<Phone Number> 14 ...
