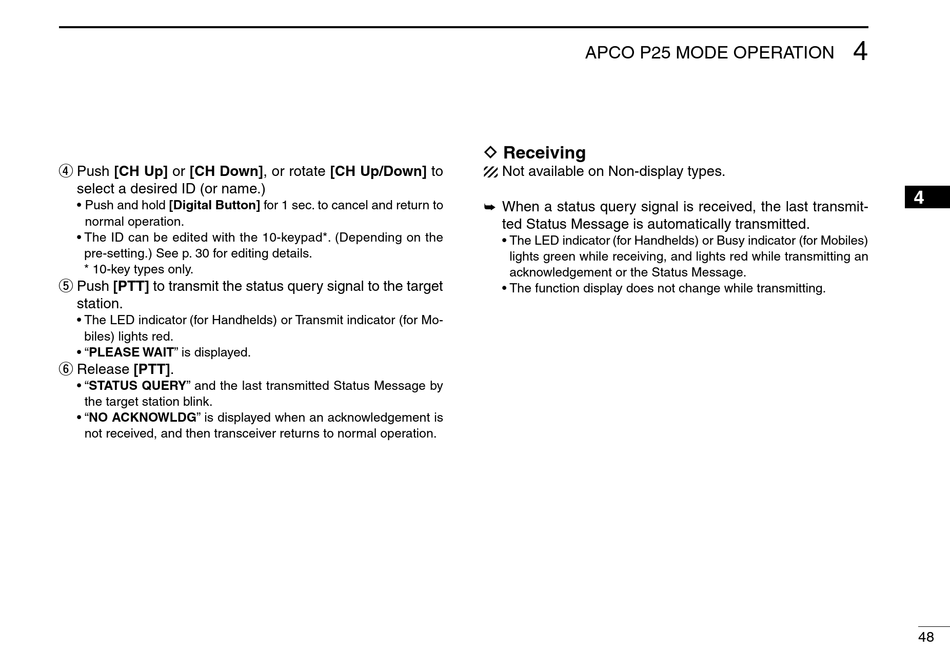

Icom IC-F9010 SERIES Operating Manual page 51

r Push [CH Up] or [CH Down], or rotate [CH Up/Down] to
select a desired ID (or name.)
• Push and hold [Digital Button] for 1 sec. to cancel and return to
normal operation.
• The ID can be edited with the 10-keypad*. (Depending on the
pre-setting.) See p. 30 for editing details.
* 10-key types only.
t Push [PTT] to transmit the status query signal to the target
station.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
• "PLEASE WAIT" is displayed.
y Release [PTT].
• "STATUS QUERY" and the last transmitted Status Message by
the target station blink.
• "NO ACKNOWLDG" is displayed when an acknowledgement is
not received, and then transceiver returns to normal operation.
APCO P25 MODE OPERATION
D Receiving
Not available on Non-display types.
When a status query signal is received, the last transmit-
➥
ted Status Message is automatically transmitted.
• The LED indicator (for Handhelds) or Busy indicator (for Mobiles)
lights green while receiving, and lights red while transmitting an
acknowledgement or the Status Message.
• The function display does not change while transmitting.
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
