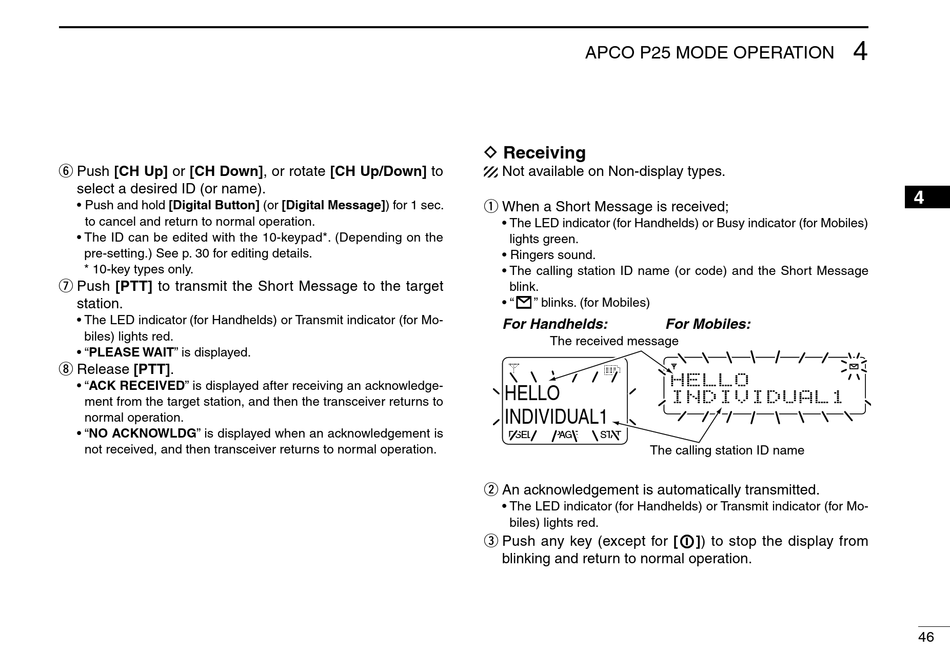

Icom IC-F9010 SERIES Operating Manual page 49

y Push [CH Up] or [CH Down], or rotate [CH Up/Down] to
select a desired ID (or name).
• Push and hold [Digital Button] (or [Digital Message]) for 1 sec.
to cancel and return to normal operation.
• The ID can be edited with the 10-keypad*. (Depending on the
pre-setting.) See p. 30 for editing details.
* 10-key types only.
u Push [PTT] to transmit the Short Message to the target
station.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
• "PLEASE WAIT" is displayed.
i Release [PTT].
• "ACK RECEIVED" is displayed after receiving an acknowledge-
ment from the target station, and then the transceiver returns to
normal operation.
• "NO ACKNOWLDG" is displayed when an acknowledgement is
not received, and then transceiver returns to normal operation.
APCO P25 MODE OPERATION
D Receiving
Not available on Non-display types.
q When a Short Message is received;
• The LED indicator (for Handhelds) or Busy indicator (for Mobiles)
lights green.
• Ringers sound.
• The calling station ID name (or code) and the Short Message
blink.
• " " blinks. (for Mobiles)
For Handhelds:
The received message
HELLO
INDIVIDUAL1
DSEL PAGE STAT
The calling station ID name
w An acknowledgement is automatically transmitted.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
e Push any key (except for [
blinking and return to normal operation.
For Mobiles:
H E L L O
I N D I V I D U A L 1
]) to stop the display from
