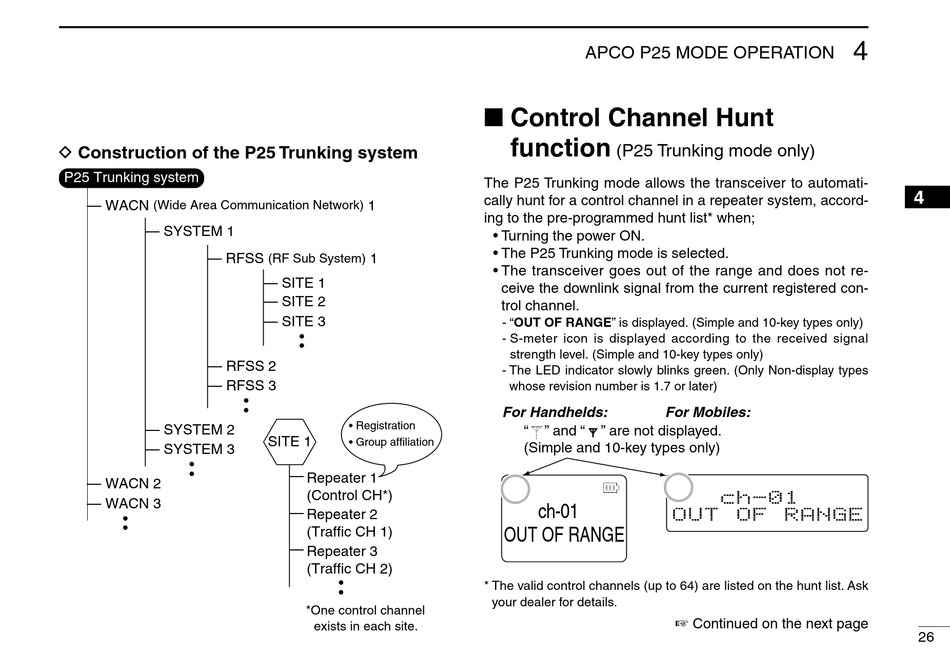

D Construction of the P25 Trunking system
P25 Trunking system
— WACN (Wide Area Communication Network)
— SYSTEM 1
— RFSS
— RFSS 2
— RFSS 3
— SYSTEM 2
— SYSTEM 3
•
•
— WACN 2
— WACN 3
•
•
1
1
(RF Sub System)
— SITE 1
— SITE 2
— SITE 3
•
•
•
•
• Registration
SITE 1
• Group affiliation
—
Repeater 1
(Control CH*)
—
Repeater 2
(Traffic CH 1)
—
Repeater 3
(Traffic CH 2)
•
•
*One control channel
exists in each site.
APCO P25 MODE OPERATION
n Control Channel Hunt
function
(P25 Trunking mode only)
The P25 Trunking mode allows the transceiver to automati-
cally hunt for a control channel in a repeater system, accord-
ing to the pre-programmed hunt list* when;
• Turning the power ON.
• The P25 Trunking mode is selected.
• The transceiver goes out of the range and does not re-
ceive the downlink signal from the current registered con-
trol channel.
- "OUT OF RANGE" is displayed. (Simple and 10-key types only)
- S-meter icon is displayed according to the received signal
strength level. (Simple and 10-key types only)
- The LED indicator slowly blinks green. (Only Non-display types
whose revision number is 1.7 or later)
For Handhelds:
" " and " " are not displayed.
(Simple and 10-key types only)
ch-01
OUT OF RANGE
* The valid control channels (up to 64) are listed on the hunt list. Ask
your dealer for details.
For Mobiles:
c h - 0 1
O U T O F R A N G E
☞ Continued on the next page
