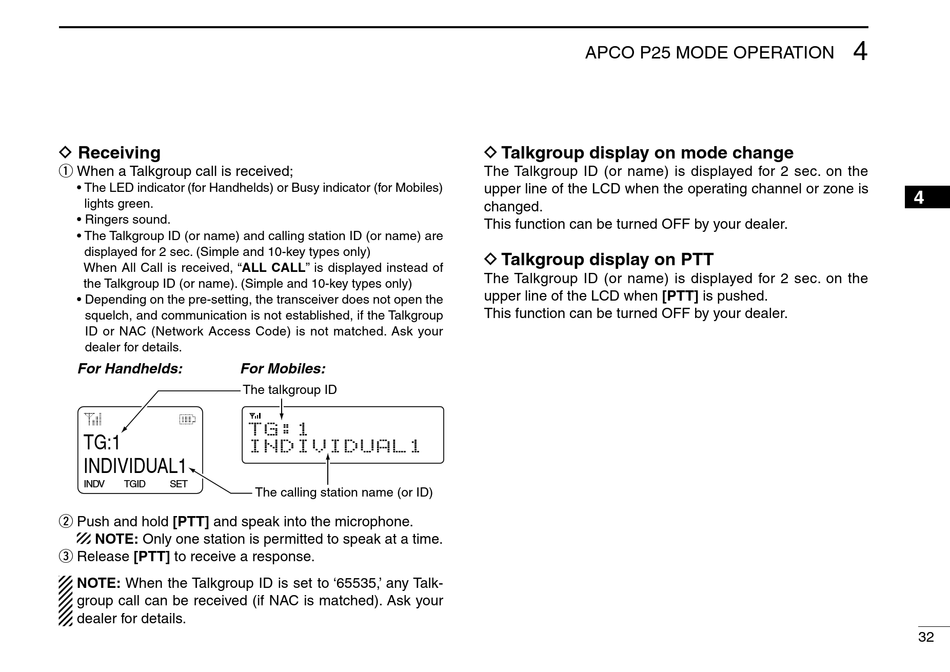

Icom IC-F9010 SERIES Operating Manual page 35

D Receiving
q When a Talkgroup call is received;
• The LED indicator (for Handhelds) or Busy indicator (for Mobiles)
lights green.
• Ringers sound.
• The Talkgroup ID (or name) and calling station ID (or name) are
displayed for 2 sec. (Simple and 10-key types only)
When All Call is received, "ALL CALL" is displayed instead of
the Talkgroup ID (or name). (Simple and 10-key types only)
• Depending on the pre-setting, the transceiver does not open the
squelch, and communication is not established, if the Talkgroup
ID or NAC (Network Access Code) is not matched. Ask your
dealer for details.
For Handhelds:
TG:1
INDIVIDUAL1
INDV TGID SET
w Push and hold [PTT] and speak into the microphone.
NOTE: Only one station is permitted to speak at a time.
e Release [PTT] to receive a response.
NOTE: When the Talkgroup ID is set to '65535,' any Talk-
group call can be received (if NAC is matched). Ask your
dealer for details.
For Mobiles:
The talkgroup ID
T G : 1
I N D I V I D U A L 1
The calling station name (or ID)
APCO P25 MODE OPERATION
D Talkgroup display on mode change
The Talkgroup ID (or name) is displayed for 2 sec. on the
upper line of the LCD when the operating channel or zone is
changed.
This function can be turned OFF by your dealer.
D Talkgroup display on PTT
The Talkgroup ID (or name) is displayed for 2 sec. on the
upper line of the LCD when [PTT] is pushed.
This function can be turned OFF by your dealer.
