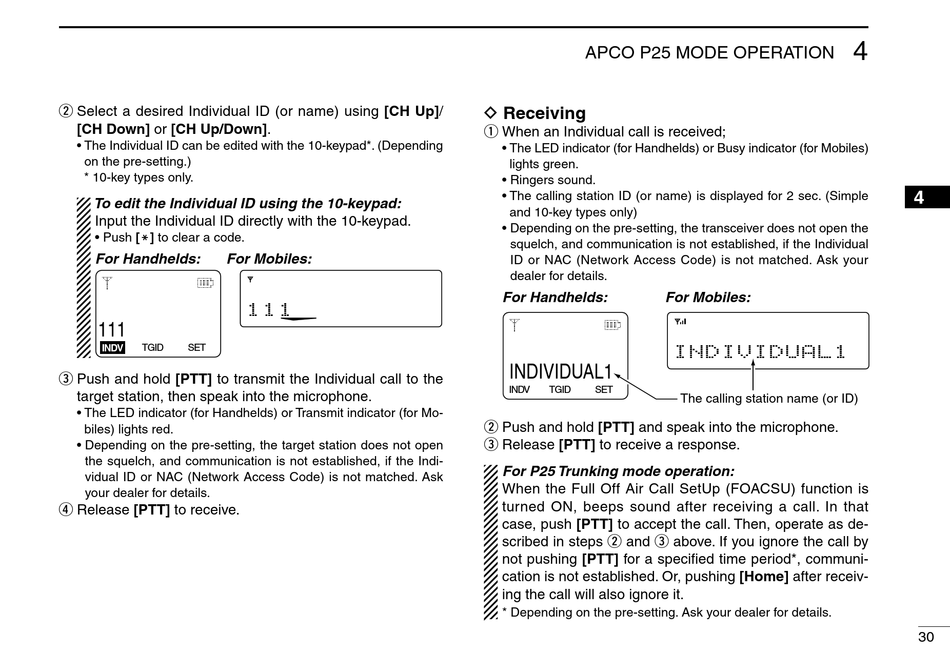

Icom IC-F9010 SERIES Operating Manual page 33

w Select a desired Individual ID (or name) using [CH Up]/
[CH Down] or [CH Up/Down].
• The Individual ID can be edited with the 10-keypad*. (Depending
on the pre-setting.)
* 10-key types only.
To edit the Individual ID using the 10-keypad:
Input the Individual ID directly with the 10-keypad.
• Push [M] to clear a code.
For Handhelds: For Mobiles:
111
INDV INDV TGID SET
e Push and hold [PTT] to transmit the Individual call to the
target station, then speak into the microphone.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
• Depending on the pre-setting, the target station does not open
the squelch, and communication is not established, if the Indi-
vidual ID or NAC (Network Access Code) is not matched. Ask
your dealer for details.
r Release [PTT] to receive.
1 1 1
APCO P25 MODE OPERATION
D Receiving
q When an Individual call is received;
• The LED indicator (for Handhelds) or Busy indicator (for Mobiles)
lights green.
• Ringers sound.
• The calling station ID (or name) is displayed for 2 sec. (Simple
and 10-key types only)
• Depending on the pre-setting, the transceiver does not open the
squelch, and communication is not established, if the Individual
ID or NAC (Network Access Code) is not matched. Ask your
dealer for details.
For Handhelds:
INDIVIDUAL1
INDV TGID SET
w Push and hold [PTT] and speak into the microphone.
e Release [PTT] to receive a response.
For P25 Trunking mode operation:
When the Full Off Air Call SetUp (FOACSU) function is
turned ON, beeps sound after receiving a call. In that
case, push [PTT] to accept the call. Then, operate as de-
scribed in steps w and e above. If you ignore the call by
not pushing [PTT] for a specified time period*, communi-
cation is not established. Or, pushing [Home] after receiv-
ing the call will also ignore it.
* Depending on the pre-setting. Ask your dealer for details.
For Mobiles:
I N D I V I D U A L 1
The calling station name (or ID)
