Power Up Sequence

The UNIMUX can be powered at any time. The CPUs can be powered at any time although if a CPU needs a keyboard and/or
mouse at power-ON it should be powered after connecting to and powering-ON the UNIMUX. USB devices (keyboard and
mouse) can be hot plugged to and from the UNIMUX at any time. Remember, the last device attached is the active one.

Limitations

Only USB input device or hub cables can be connected to the UNIMUX at the USB Type A female ports labeled "USB
•
DEVICES". (See Features and Functions on page 2, item 2.)
A USB hub (single or multi-port) can be used provided only USB input devices are plugged into it.
•
Only a USB Windows or SUN keyboard or USB mouse may be connected to the USB port on a USB MAC keyboard
•
A maximum of 8 input devices may be connected to the UNIMUX either directly or through hubs.
•
See Fig. 4 for some examples of input device combinations that can be used with the UNIMUX.
USB Type A
Male Connectors
USB Windows Keyboard
Typical Installation- 1 keyboard, 1 mouse
USB Windows Keyboard
USB
Mouse
Multiple keyboards and mice
MAC USB keyboard and mouse through hub

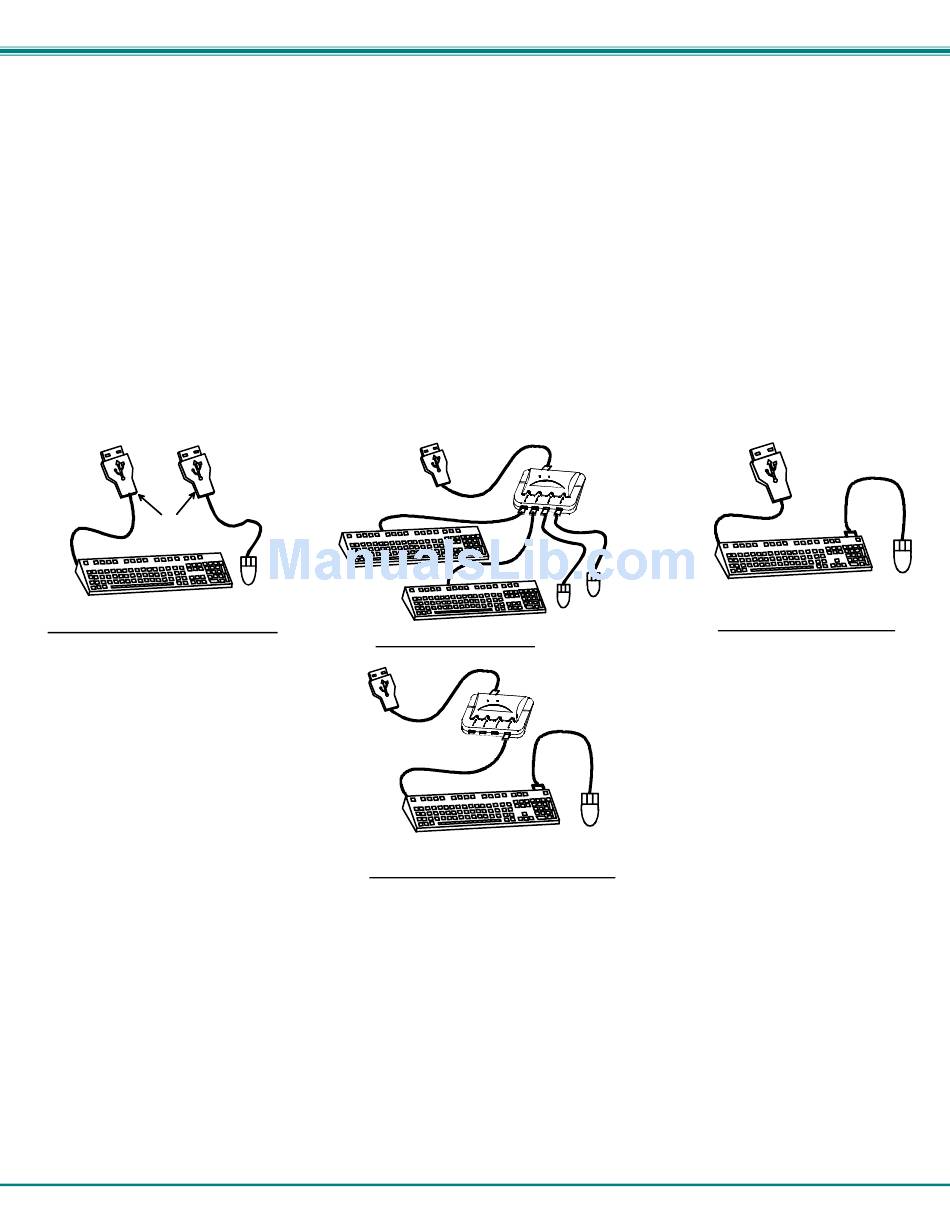

Figure 4- Compatible device combinations

USB
Hub
USB
Mouse
USB
USB Windows Keyboard
Mouse
USB
Hub
USB
USB MAC Keyboard
Mouse
5
USB
USB MAC Keyboard
Mouse
MAC USB keyboard and mouse
