Figure 3- Connect Cpu Cables - NTI UNIMUX-DVI-2 Installation And Operation Manual

NTI UNIMUX 2-Port USB DVI KVM Switch
6. Using a USB-AB-x-MM cable connect the USB type A device port of a USB CPU to the USB type B port labeled "CPU 1" on
the UNIMUX.
7. Using a DVI-IS-xx-MM connect the DVI video port of the same USB CPU connected in step 5 to the female DVI port labeled
"VIDEO 1" on the UNIMUX. Be sure to tighten the two screws on the cable connector to the UNIMUX securely.

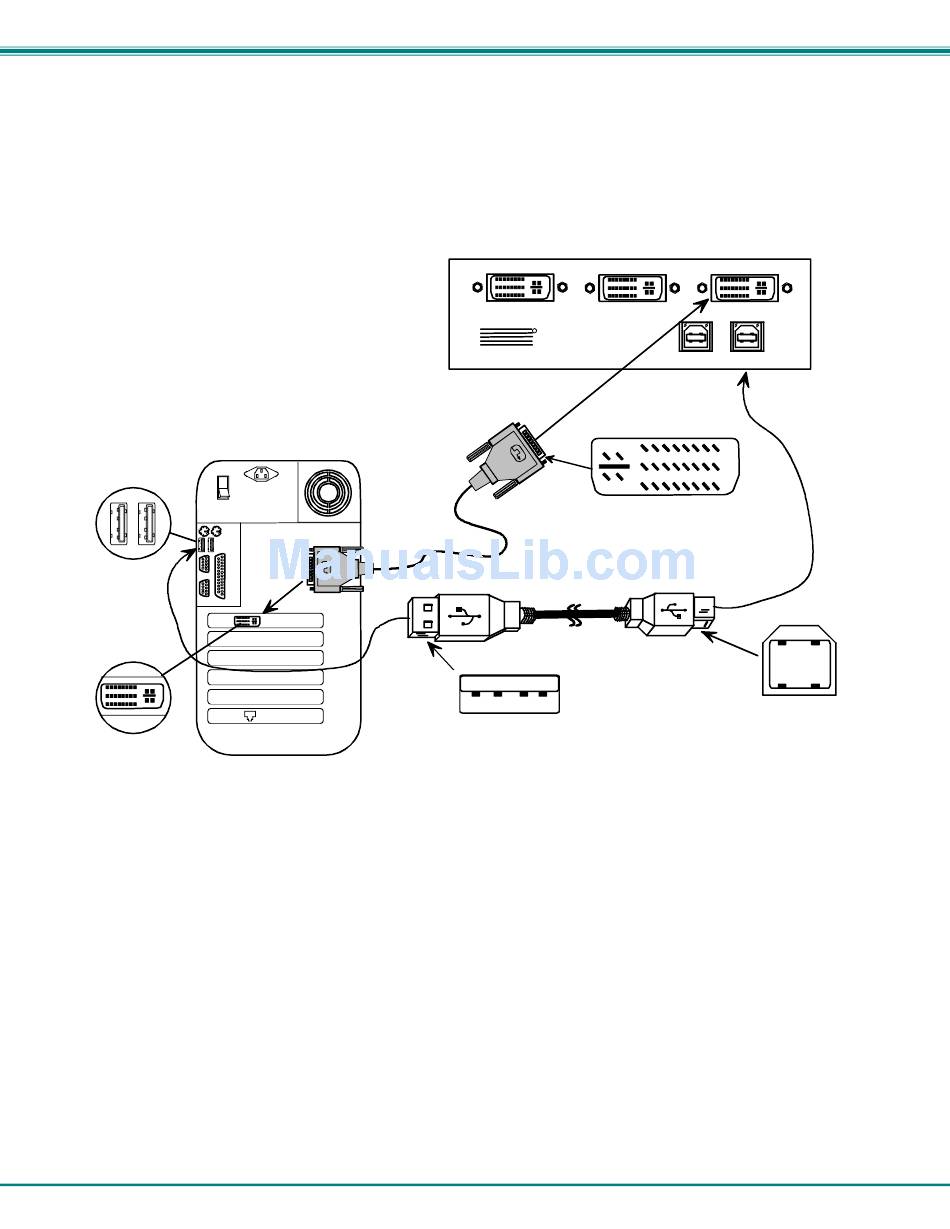

8. Repeat steps 6 and 7 for connecting a second USB CPU to the ports labeled "CPU 2" and "VIDEO 2" . See Fig. 3.
