INSTALLATION

Connect The Cables

1. It is not necessary to turn OFF power to either of the CPUs that will be connected to the UNIMUX before connecting or
disconnecting any cables.
NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the
UNIMUX and only after the keyboard is connected and the UNIMUX is powered ON.
2. Connect a USB keyboard to a female USB type A port labeled "USB DEVICES" on the UNIMUX. See Fig. 1.
3. Connect a USB mouse to the other female USB type A port labeled "USB DEVICES" on the UNIMUX.
4. Connect the AC adapter to the port labeled "5VDC".
5 VDC
Adapter
AC
ADAPTER
Barrel
Power Connector
5VDC @ 2.0A OUTPUT
(Outside
barrel)
2.1 mm x 5.5 mm Female
5. Connect a DVI-enabled monitor to the female DVI port labeled "MONITOR" on the UNIMUX. Be sure to tighten the two
screws on the monitor cable connector to the UNIMUX securely.
Mating Face of
DVI Enabled
Front View of UNIMUX-DVI-2
5VDC
-
(Inside
barrel)

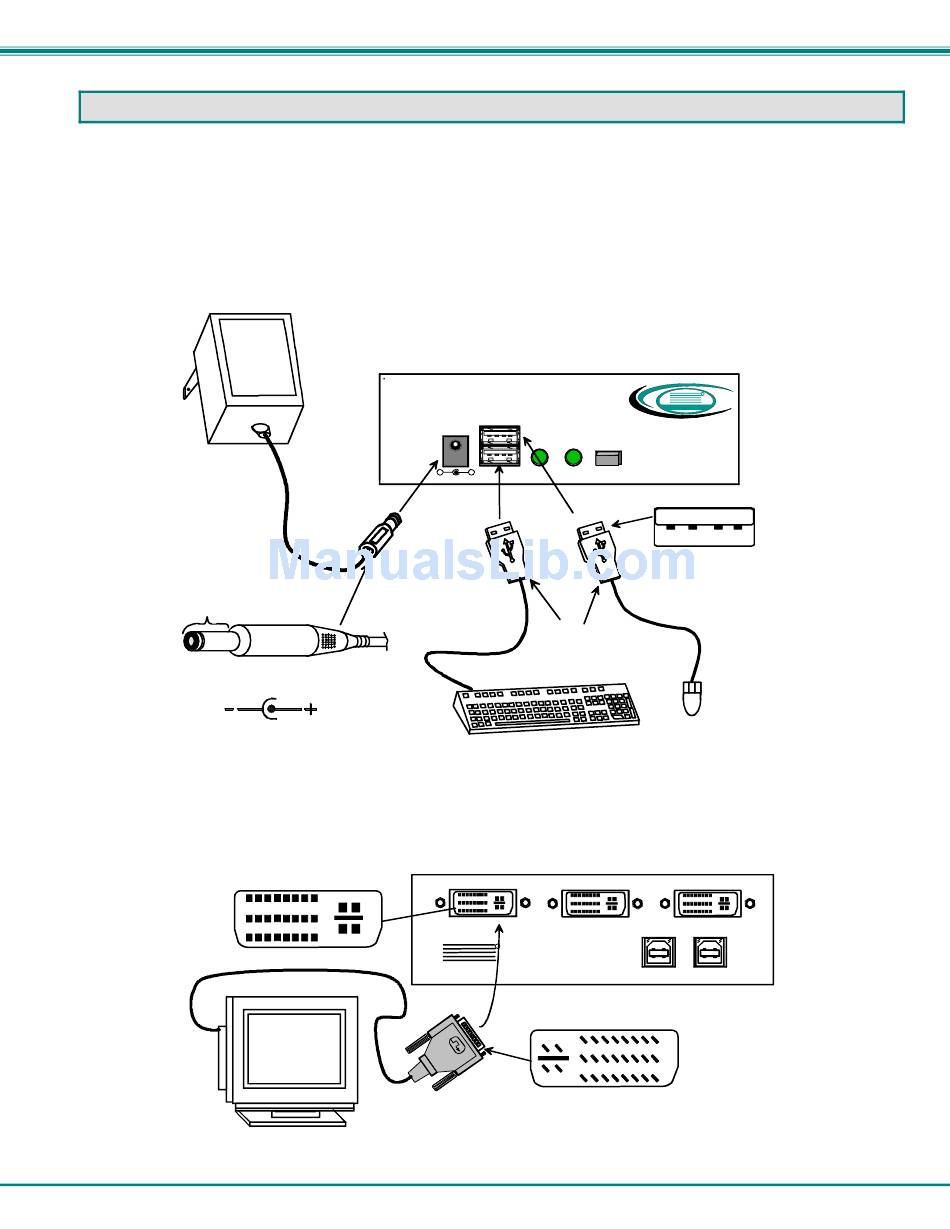

Figure 1- Connect the keyboard, mouse, and AC adapter
