Summary of Contents for NTI UNIMUX-DVI-2
- Page 1 UNIMUX Series UNIMUX-DVI-2 2-Port USB DVI KVM Switch Installation and Operation Manual MAN045 Rev Date 5/4/2009...
- Page 2 TRADEMARK UNIMUX is a trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT © 2005, 2009 Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
MATERIALS ..................................1 FEATURES AND FUNCTIONS............................2 INSTALLATION................................3 Connect The Cables ..............................3 Power Up Sequence..............................5 Limitations..................................5 USING THE NTI SWITCH............................... 6 CPU Select .................................. 6 Keyboard Control................................. 6 Command Mode ................................7 Scan Mode................................... 8 Broadcast Mode................................8 Normal Mode ................................ -
Page 4: Introduction
NTI UNIMUX 2-Port USB DVI KVM Switch INTRODUCTION The UNIMUX-DVI-2 USB DVI KVM switch (UNIMUX) allows one user to access two USB CPUs with only one USB keyboard, USB mouse, and a DVI video-enabled monitor. Internal microprocessors allow both CPUs to boot simultaneously and error-free. -
Page 5: Features And Functions

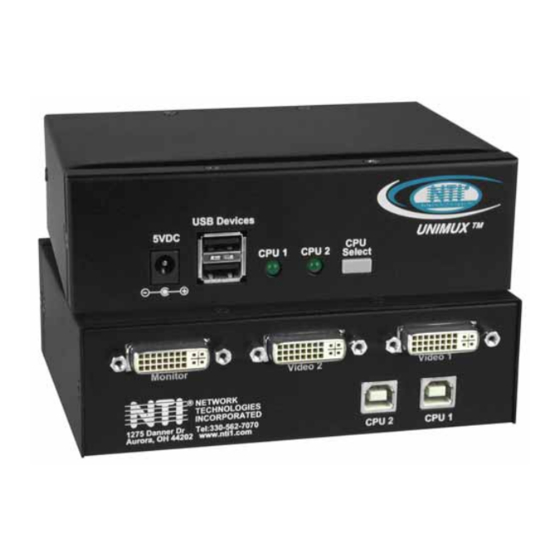

NTI UNIMUX 2-Port USB DVI KVM Switch Rear View of UNIMUX-DVI-2 Front View of UNIMUX-DVI-2 Network Technologies Inc USB Devices Monitor Video 2 Video 1 UNIMUX 5VDC CPU 1 CPU 2 Select NETWORK TECHNOLOGIES INCORPORATED 1275 Danner Dr Tel:330-562-7070 Aurora, OH 44202 www.nti1.com... -
Page 6: Installation
NTI UNIMUX 2-Port USB DVI KVM Switch INSTALLATION Connect The Cables It is not necessary to turn OFF power to either of the CPUs that will be connected to the UNIMUX before connecting or disconnecting any cables. NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the UNIMUX and only after the keyboard is connected and the UNIMUX is powered ON. -
Page 7: Figure 3- Connect Cpu Cables
NTI UNIMUX 2-Port USB DVI KVM Switch Using a USB-AB-x-MM cable connect the USB type A device port of a USB CPU to the USB type B port labeled "CPU 1" on the UNIMUX. Using a DVI-IS-xx-MM connect the DVI video port of the same USB CPU connected in step 5 to the female DVI port labeled "VIDEO 1"... -
Page 8: Power Up Sequence
NTI UNIMUX 2-Port USB DVI KVM Switch Power Up Sequence The UNIMUX can be powered at any time. The CPUs can be powered at any time although if a CPU needs a keyboard and/or mouse at power-ON it should be powered after connecting to and powering-ON the UNIMUX. USB devices (keyboard and mouse) can be hot plugged to and from the UNIMUX at any time. -
Page 9: Using The Nti Switch
NTI UNIMUX 2-Port USB DVI KVM Switch USING THE NTI SWITCH The NTI UNIMUX-DVI-2 can be operated by the CPU SELECT button on the side of the switch or by keyboard control. CPU Select Pressing the CPU SELECT button on the UNIMUX will toggle between CPU 1 and CPU 2 which connects the selected CPU •... -
Page 10: Command Mode
1. Disconnect power from the UNIMUX 2. Press and hold the CPU SELECT button on the switch 3. Re-connect power to the switch 4. Release the CPU SELECT button NOTE: Command Mode not available on model UNIMUX-DVI-2-NBSC. -
Page 11: Scan Mode
Figure 5- Flashing LED means CPU is being scanned NOTE: The keyboard and mouse must remain idle for the full scan time out period before the UNIMUX will connect to the other port. NOTE: Scan Mode not available on model UNIMUX-DVI-2-NBSC. Broadcast Mode (use with extreme caution) Broadcast Mode allows the user to send keystrokes to all active CPUs. -
Page 12: Keyboard Features
NTI UNIMUX 2-Port USB DVI KVM Switch KEYBOARD FEATURES The keyboard configuration of each CPU is saved in the UNIMUX. For example, if the CPU attached to Port 2 had CAPS LOCK and NUM LOCK selected the last time that CPU was accessed, then they will automatically be set when that CPU is accessed again. -
Page 13: International Sun Keyboards
NTI UNIMUX 2-Port USB DVI KVM Switch Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Typical Windows Keyboard Power lock Delete clear return caps Lock shift shift enter control option option control MAC Keyboard Suspend Help Again Stop... -
Page 14: Troubleshooting
NTI UNIMUX 2-Port USB DVI KVM Switch It is also possible to configure the UNIMUX to emulate a specific international Sun keyboard regardless of what actual keyboard is connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an explicit layout code (i.e. -
Page 15: Index
NTI UNIMUX 2-Port USB DVI KVM Switch INDEX Broadcast Mode, 8 MAC CPUs, 8 cables required-not supplied, 1 materials supplied, 1 C ommand Mode, 7 Normal Mode, 8 country codes, 11 Scan Mode, 8 CPUs supported, 1 S un International Keyboards, 10...
