Page 1: Operation Guide

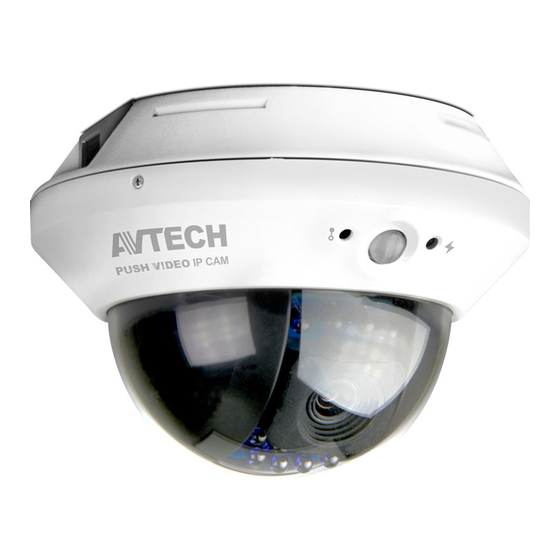

AVN808 IR Dome NETWORK CAMERA SERIES OPERATION GUIDE Please read instructions thoroughly before operation and retain it for future reference. n808_operation_V1.1... - Page 2 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
- Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. OVERVIEW............................1 1.1 Product Features............................1 1.2 Package Content............................1 1.3 Product Overview ............................1 1.4 Connectors ..............................1 1.5 External I/O Port............................2 1.6 Status Indicator............................2 2. CAMERA ACCESS WITH INTERNET EXPLORER................3 2.1 Camera Login............................3 2.2 Control Panel Overview .......................... -
Page 5: Overview
1. OVERVIEW 1.1 Product Features Easy network setup with your iPhone / iPad 1.3 Megapixel SONY sensor with HDTV 720p quality, allowing users to notice minor details more easily Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt ... -
Page 6: External I/O Port
1.5 External I/O Port This camera supports external I/O device connection, and a 3-pin I/O terminal is supplied with this camera for easy connection. Below shows which input on the I/O terminal you should use for wiring when you want to connect an external device to this camera. -
Page 7: Camera Access With Internet Explorer
2. CAMERA ACCESS WITH INTERNET EXPLORER This network camera can be accessed via Microsoft® Internet Explorer® and iPhone / iPad / Android mobile devices with our self-developed program “EagleEyes” installed depending on different using situations. Note: For details about accessing network cameras via iPhone / iPad / Android mobile devices, please refer to http://www.eagleeyescctv.com. - Page 8 Function Icon User Level Description Supervisor / Power User Switch to the live view page. Live / Normal User / Guest Enter the event record list for video playback. Supervisor / Power User Backup For details, please refer to “2.4 Event Record Search & Playback’ at page Switch to the DPTZ configuration page.
-
Page 9: Digital Ptz (Dptz) Operations
2.3 Digital PTZ (DPTZ) Operations This camera has PTZ capability, i.e. digital PTZ (hereafter called “DPTZ”), for wide area monitoring. STEP1: Click “DPTZ” to show the DPTZ control panel. STEP2: Select the functions when needed: FUNCTION ICON DESCRIPTION Resolution Select the video resolution for the DPTZ function. Only “VGA” and “QVGA” are available. Click to take a snapshot of the current view on a new window. -
Page 10: Event Record Search & Playback
2.4 Event Record Search & Playback This camera can only save up to three alarm recordings. Note: To save more recorded data, it’s recommended to use this camera with the compatible NVR. Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00 Previous / Next Hour ~ 15:00, and start playing the earliest event video clip recorded during this whole hour. -
Page 11: Camera Configurations
3. CAMERA CONFIGURATIONS Users can further configure this network camera by accessing via Internet Explorer. 3.1 System configuration menu Click “Config.” to enter the configuration page. The functions are categorized into six menus: Network, Camera, Record Timer, Storage, Trigger and General. ... -
Page 12: Network
3.2 Network 3.2.1 Network You can set the network configuration of the network camera depending on your network type. For details, please refer to “Advanced Network Setup” from www.surveillance-download.com/user/n808.swf. 3.2.2 QoS QoS, Quality of Service, is the ability to control the data flow for real-time streaming. This function is important if your network bandwidth is insufficient and you have other devices to share the network bandwidth. -
Page 13: Ftp
3.2.5 FTP Enter the detailed FTP information and click “Save” to confirm. The information you set here will be applied when “FTP” is selected in “Trigger” → “Trigger”. 3.2.6 MAIL Enter the detailed e-mail information and click “Save” to confirm. The information you set here will be applied when “Email”... -
Page 14: Upnp / Bonjour
Function Description Filter Configuration Error Count Set the maximum count for login failure. When the maximum count is reached, the IP address trying to access the network camera will be locked. Error Lock Time Set the lock time in minutes when the maximum count of error login for an IP address is reached. Echo Request Select “Non-Block”... -
Page 15: Camera
Note: When the configurations are saved successfully, you’ll see a message indicating the IP address and port number assigned to this network camera. 3.3 Camera 3.3.1 Camera Rename the camera, and change the place where the camera name is shown on the screen, UP-LEFT / UP-RIGHT / DOWN-LEFT / DOWN-RIGHT. -
Page 16: Color
3.3.3 Color Adjust the color performance from Brightness, Contract, Hue and Saturation. Click and drag the slider to preview the color change on the right side of this page and adjust the image color. To restore the default values, click “Back to Default”. 3.3.4 Audio Drag the slider to adjust the volume of the microphone and speaker. -
Page 17: Record
3.4 Record 3.4.1 Record In “Record Configuration”, you can: Enable or disable the alarm record function. When “Enable” is set to “No”, the alarm record function is disabled even if you enable it in other configuration pages. Select if the data should be overwritten when the memory storage is full. ... -
Page 18: Trigger
3.6 Trigger 3.6.1 Trigger You can configure how this camera reacts when there’s an alarm, a motion or a PIR event. Detect Item Description External Alarm Enable or disable detection from external alarm-in device, and click the title “External Alarm” (in blue) to set “N.O.” or “N.C.”... -
Page 19: Push Video
Action Here defines how the camera delivers alerts to you for any event. Item Description E-Mail Select the event type you want to receive E-mail notifications when it occurs. Then, click the title “E-Mail” (in blue) to configure the media type (H264 / JPEG / MPEG4), file format (AVC / AVI), and record time (1 ~ 5 seconds) for the event video clip. -
Page 20: General
3.7 General 3.7.1 General To change the language of UI interface, select from the drop-down list in “Language”. To allow the status LED indicators to show the status as indicated in “1.6 Status Indicator” at page 2, select “Enable” in “Status LED Mode”; to hide the status, select “OFF”; to only show the error status, select “Temporary Disable”. -
Page 21: Online
3.7.4 Online You can check the current online user(s) with respective online information. To refresh the list, click “Reload”. To allow anonymous login, select “Enable” in “Anonymous Viewer Login”. To disable image code verification at login, select “No” in “Login with CAPTCHA Image”. 3.7.5 Account You can create a new account with different user access privilege, or delete or modify an existing account setting. -
Page 22: Maintenance
Column Description User Name Set a user name that will be used for camera access. The user name allows up to 16 alphanumeric characters. Password Set the password that will be used for remote login. The password allows up to 16 alphanumeric characters. Confirm Password Enter the password again to confirm. - Page 23 System Configuration Backup This function is used to copy your system configuration to a “System.bin” file. You may import the same system configuration to another camera, or restore your system configuration when the camera is reset to default values. Select “System.bin” in “Firmware Upgrade”, and select “Upgrade” to import the system configuration. System Reboot Select “Reboot”...
-
Page 24: Appendix 1 Product Specifications
APPENDIX 1 PRODUCT SPECIFICATIONS ▓ Network Network Compression H.264 / MPEG4 / MJPEG Multiple Video Streaming 3 (H.264, MJPEG, MPEG4) (Encode Modes, IPS, Resolution) LAN Port LAN Speed 10/100 Based-T Ethernet DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, Supported Protocols HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS Frame Rate... -
Page 25: Appendix 2 Bit Rate Table For Reference
APPENDIX 2 BIT RATE TABLE FOR REFERENCE The data below is for reference only. The bit rates listed here may vary depending on the resolution, image quality & frame rate you choose, the complexity of your monitoring area, and how often the moving objects show in your monitoring area. Testing Environment ... - Page 26 Resolution Quality Frame Rate (Dynamic) kbps (Static) kbps SXGA Best 1/15 High Normal Basic Best High Normal Basic QVGA Best High Normal Basic...
-
Page 27: Appendix 3 Q&A
APPENDIX 3 Q&A For more details about EagleEyes Q&A, please visit our official website: www.eagleeyescctv.com/supp_QnA.aspx. Question Answer I can connect to this camera in my house You didn’t configure this camera to Internet, but only in LAN. or office where it’s installed with wireless Please follow the steps in the advanced network setup guide network. -
Page 28: Appendix 4 Recording Time Table
APPENDIX 4 RECORDING TIME TABLE Below shows the estimated total recording time for each recording resolution. The recording time per resolution is the average value collected from the both alarm trigger conditions indicated in “Testing Environment”, and is for reference only. The time may vary depending on the resolution, image quality &... -
Page 29: Appendix 5 Audio Splitter Cable
APPENDIX 5 AUDIO SPLITTER CABLE...
