OTHER FUNCTIONS
■
GPS status screen (Continued)

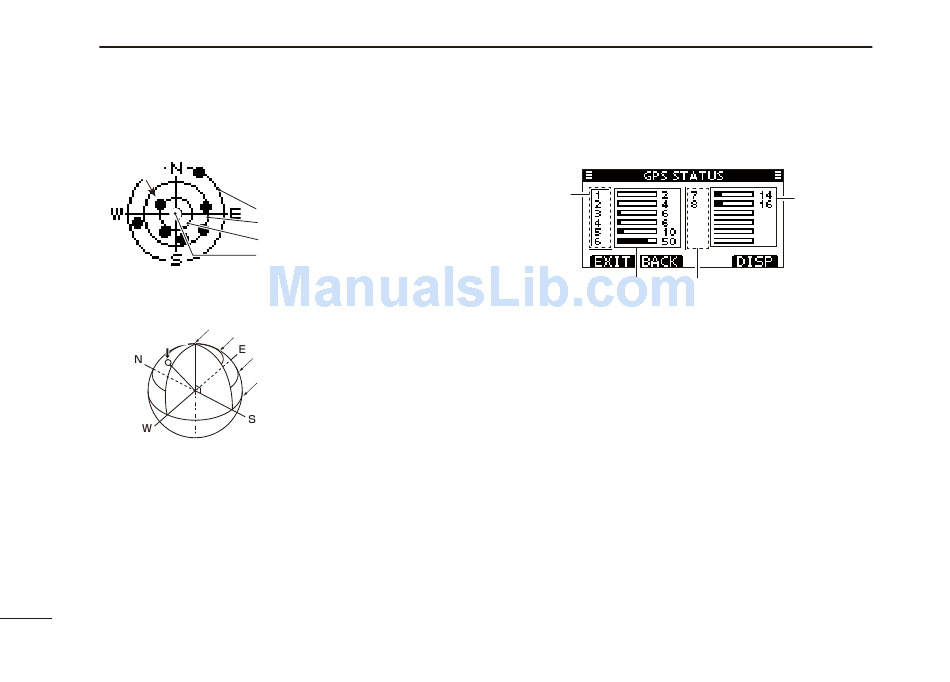

• About the sky view
Satellite A
• The image of the satellite
Elevation angle 90 degree line (Zenith)
Satellite A
81
●: Tracking satellite.
○: Untracking satellite
Elevation angle 0 degree line
Elevation angle 30 degree line
Elevation angle 60 degree line
Elevation angle 90 degree line
(Zenith)
Elevation angle 60 degree line
Elevation angle 30 degree line
Elevation angle 0 degree line
• Satellite signal power screen description
Satellite
number
Satellite signal power
The untracking satellite numbers blink.
Satellite
signal
power
Satellite number
