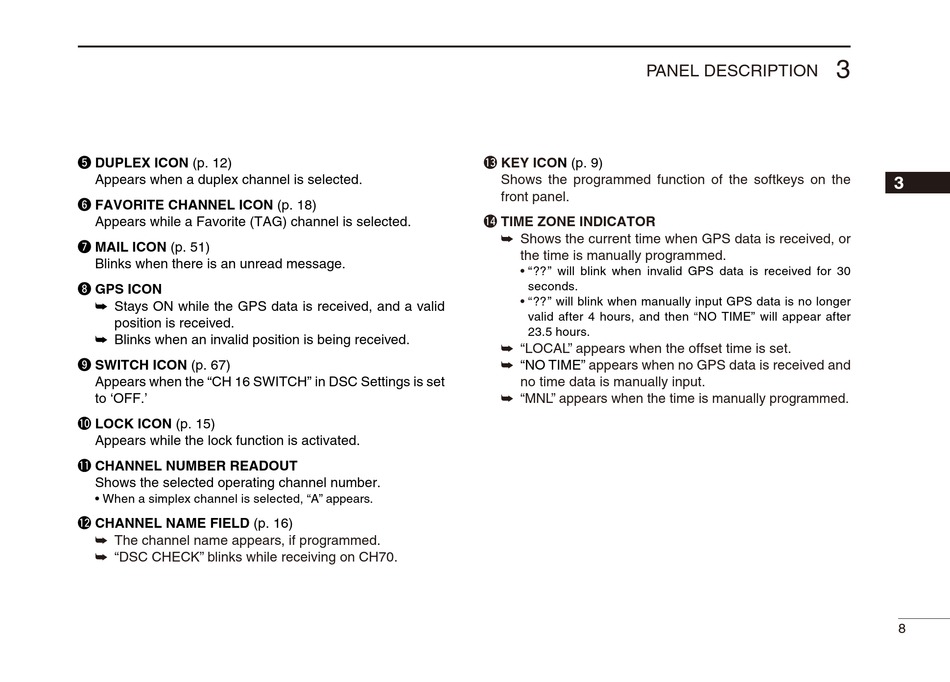

t DUPLEX ICON (p. 12)
Appears when a duplex channel is selected.
y FAVORITE CHANNEL ICON (p. 18)
Appears while a Favorite (TAG) channel is selected.
u MAIL ICON (p. 51)
Blinks when there is an unread message.
i GPS ICON
➥
Stays ON while the GPS data is received, and a valid
position is received.
➥
Blinks when an invalid position is being received.
o SWITCH ICON (p. 67)
Appears when the "CH 16 SWITCH" in DSC Settings is set
to 'OFF.'
!0 LOCK ICON (p. 15)
Appears while the lock function is activated.
!1 CHANNEL NUMBER READOUT
Shows the selected operating channel number.
• When a simplex channel is selected, "A" appears.
!2 CHANNEL NAME FIELD (p. 16)
➥
The channel name appears, if programmed.
➥
"DSC CHECK" blinks while receiving on CH70.
PANEL DESCRIPTION
!3 KEY
ICON (p. 9)
Shows the programmed function of the softkeys on the
front panel.
!4 TIME ZONE INDICATOR
➥
Shows the current time when GPS data is received, or
the time is manually programmed.
• "??" will blink when invalid GPS data is received for 30
seconds.
• "??" will blink when manually input GPS data is no longer
valid after 4 hours, and then "NO TIME" will appear after
23.5 hours.
➥
"LOCAL" appears when the offset time is set.
➥
"NO TIME" appears when no GPS data is received and
no time data is manually input.
➥ "MNL" appears when the time is manually programmed.
