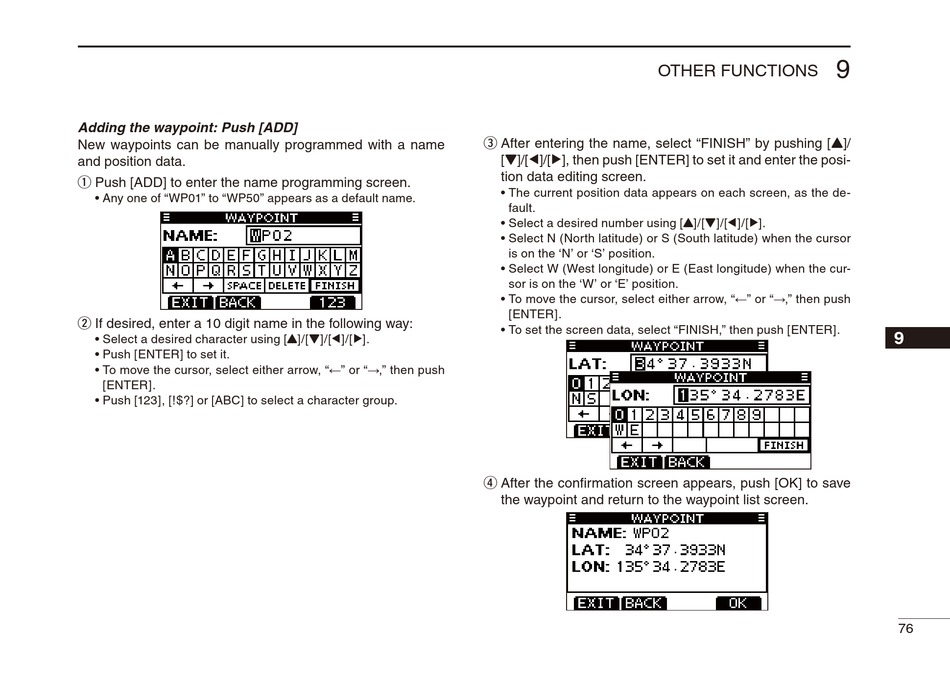

Icom IC-M91D Instruction Manual page 83

Adding the waypoint: Push [ADD]
New waypoints can be manually programmed with a name
and position data.
q
Push [ADD] to enter the name programming screen.
• Any one of "WP01" to "WP50" appears as a default name.
w
If desired, enter a 10 digit name in the following way:
• Select a desired character using [Y]/[Z]/[Ω]/[≈].
• Push [ENTER] to set it.
• To move the cursor, select either arrow, "←" or "→," then push
[ENTER].
• Push [123], [!$?] or [ABC] to select a character group.
OTHER FUNCTIONS
e
After entering the name, select "FINISH" by pushing [
[Z]/[Ω]/[≈], then push [ENTER] to set it and enter the posi-
tion data editing screen.
• The current position data appears on each screen, as the de-
fault.
• Select a desired number using [Y]/[Z]/[Ω]/[≈].
• Select N (North latitude) or S (South latitude) when the cursor
is on the 'N' or 'S' position.
• Select W (West longitude) or E (East longitude) when the cur-
sor is on the 'W' or 'E' position.
• To move the cursor, select either arrow, "←" or "→," then push
[ENTER].
• To set the screen data, select "FINISH," then push [ENTER].
r
After the confi rmation screen appears, push [OK] to save
the waypoint and return to the waypoint list screen.
9
1
Y]/
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
76
