Icom IC-M91D Instruction Manual page 45

New2001
r

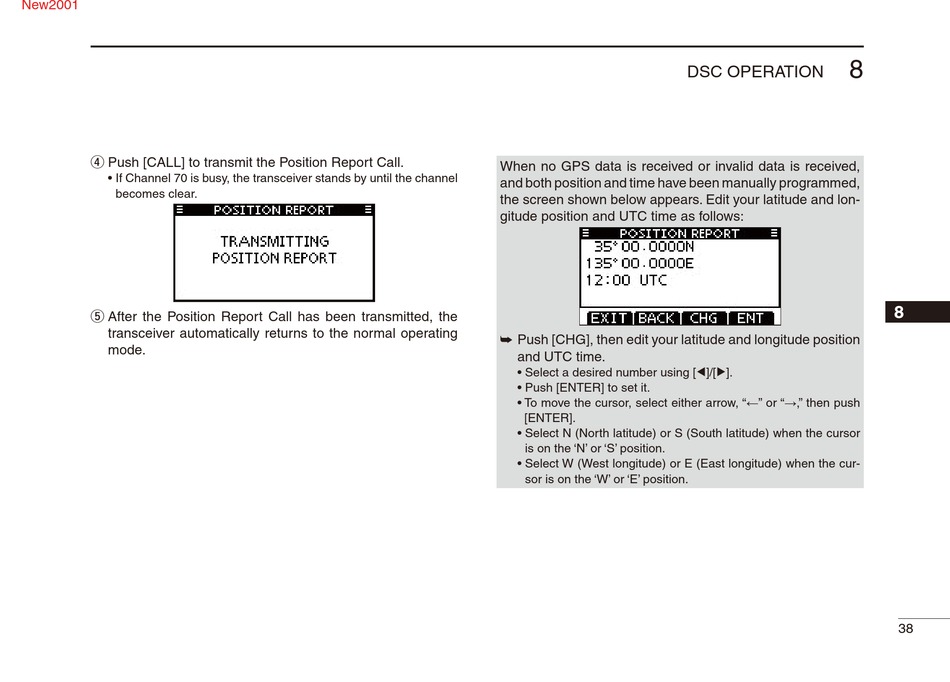

Push [CALL] to transmit the Position Report Call.
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
t
After the Position Report Call has been transmitted, the
transceiver automatically returns to the normal operating
mode.
When no GPS data is received or invalid data is received,
and both position and time have been manually programmed,
the screen shown below appears. Edit your latitude and lon-
gitude position and UTC time as follows:
➥
Push [CHG], then edit your latitude and longitude position
and UTC time.
• Select a desired number using [Ω]/[≈].
• Push [ENTER] to set it.
• To move the cursor, select either arrow, "←" or "→," then push
[ENTER].
• Select N (North latitude) or S (South latitude) when the cursor
is on the 'N' or 'S' position.
• Select W (West longitude) or E (East longitude) when the cur-
sor is on the 'W' or 'E' position.
8
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
38
