Icom IC-M91D Instruction Manual page 12

3

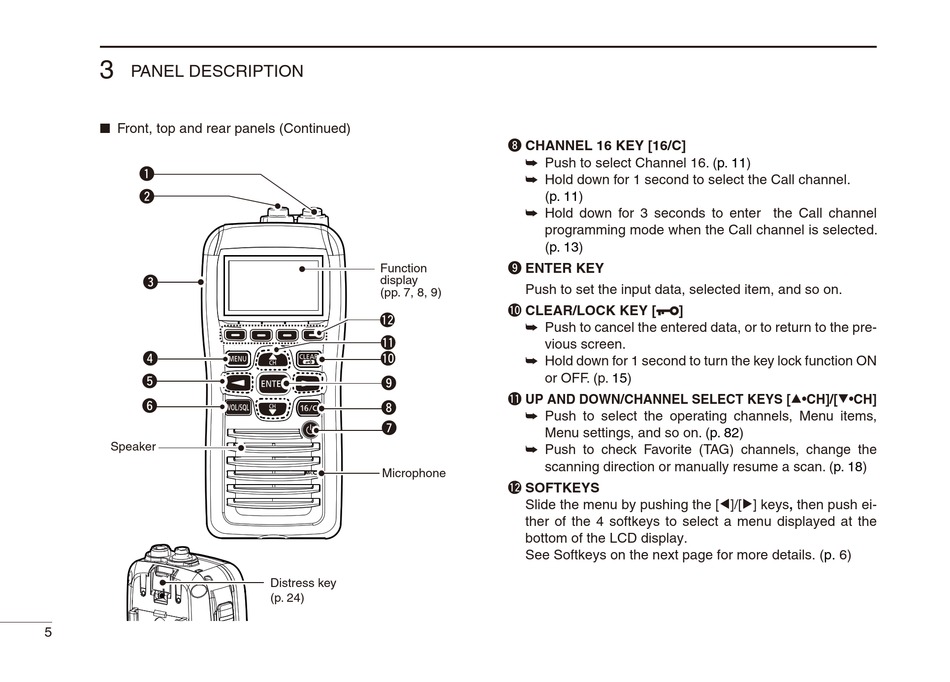

PANEL DESCRIPTION
■
Front, top and rear panels (Continued)
q
w
e
r
t
y
Speaker
5
Function
display
(pp. 7, 8, 9)
!2
!1
!0
o
i
u
Microphone
Distress key
(p. 24)
i CHANNEL 16 KEY [16/C]
➥
Push to select Channel 16. (
➥
Hold down for 1 second to select the Call channel.
(p. 11)
➥
Hold down for 3 seconds to enter the Call channel
programming mode when the Call channel is selected.
(p. 13)
o ENTER KEY
Push to set the input data, selected item, and so on.
!0 CLEAR/LOCK KEY [
]
➥
Push to cancel the entered data, or to return to the pre-
vious screen.
➥
Hold down for 1 second to turn the key lock function ON
or OFF. (p. 15)
!1 UP AND DOWN/CHANNEL SELECT KEYS [∫•CH]/[√•CH]
➥
Push to select the operating channels, Menu items,
Menu settings, and so on.
➥ Push to check Favorite (TAG) channels, change the
scanning direction or manually resume a scan.
!2 SOFTKEYS
Slide the menu by pushing the [Ω]/[≈] keys, then push ei-
ther of the 4 softkeys to select a menu displayed at the
bottom of the LCD display.
See Softkeys on the next page for more details.
p. 11)
(p. 82)
(p. 18)
(p. 6)
