NANO830/831 Intel Atom

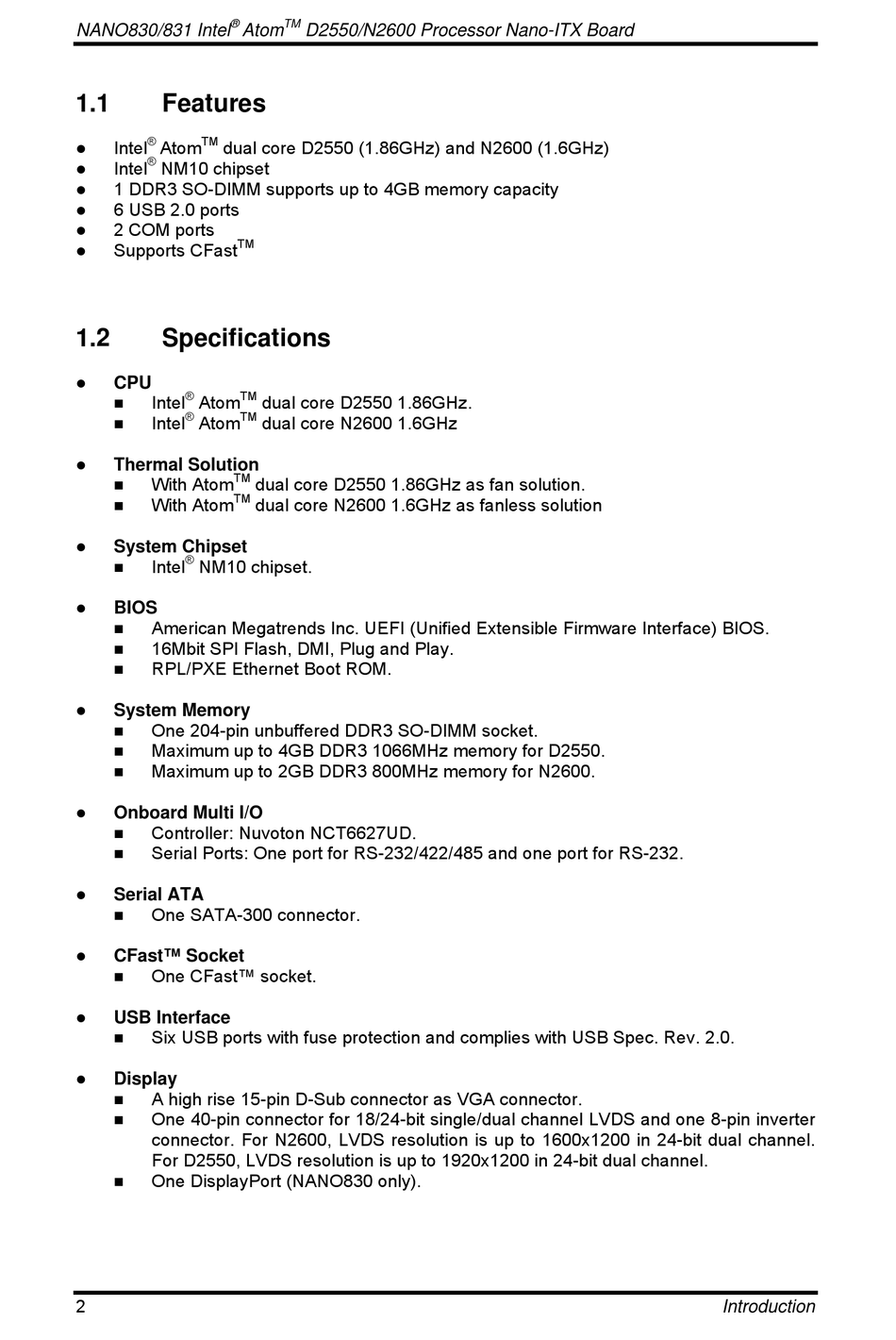

1.1

Features

® TM
Intel Atom dual core D2550 (1.86GHz) and N2600 (1.6GHz)

®
Intel NM10 chipset

1 DDR3 SO-DIMM supports up to 4GB memory capacity

6 USB 2.0 ports

2 COM ports

TM
Supports CFast

1.2

Specifications

 CPU
® TM
Intel Atom

® TM
Intel Atom

 Thermal Solution
TM
With Atom

TM
With Atom

 System Chipset
®
Intel NM10 chipset.

 BIOS
American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.

16Mbit SPI Flash, DMI, Plug and Play.

RPL/PXE Ethernet Boot ROM.

 System Memory
One 204-pin unbuffered DDR3 SO-DIMM socket.

Maximum up to 4GB DDR3 1066MHz memory for D2550.

Maximum up to 2GB DDR3 800MHz memory for N2600.

 Onboard Multi I/O
Controller: Nuvoton NCT6627UD.

Serial Ports: One port for RS-232/422/485 and one port for RS-232.

 Serial ATA
One SATA-300 connector.

 CFast™ Socket
One CFast™ socket.

 USB Interface
Six USB ports with fuse protection and complies with USB Spec. Rev. 2.0.

 Display
A high rise 15-pin D-Sub connector as VGA connector.

One 40-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin inverter

connector. For N2600, LVDS resolution is up to 1600x1200 in 24-bit dual channel.
For D2550, LVDS resolution is up to 1920x1200 in 24-bit dual channel.
One DisplayPort (NANO830 only).

2
TM
D2550/N2600 Processor Nano-ITX Board
dual core D2550 1.86GHz.
dual core N2600 1.6GHz
dual core D2550 1.86GHz as fan solution.
dual core N2600 1.6GHz as fanless solution
Introduction
