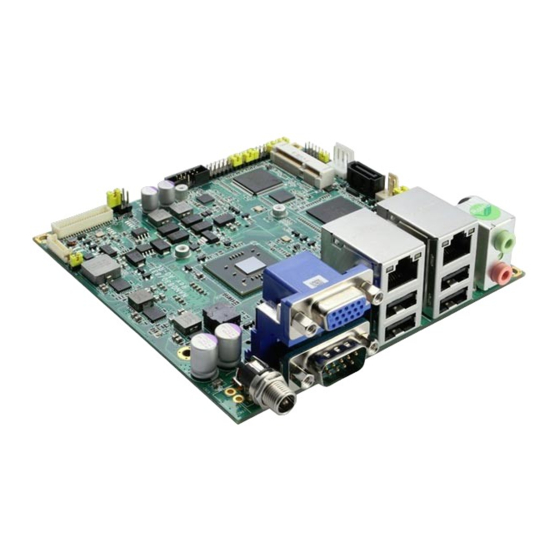

AXIOMTEK NANO830 Series Quick Installation Manual

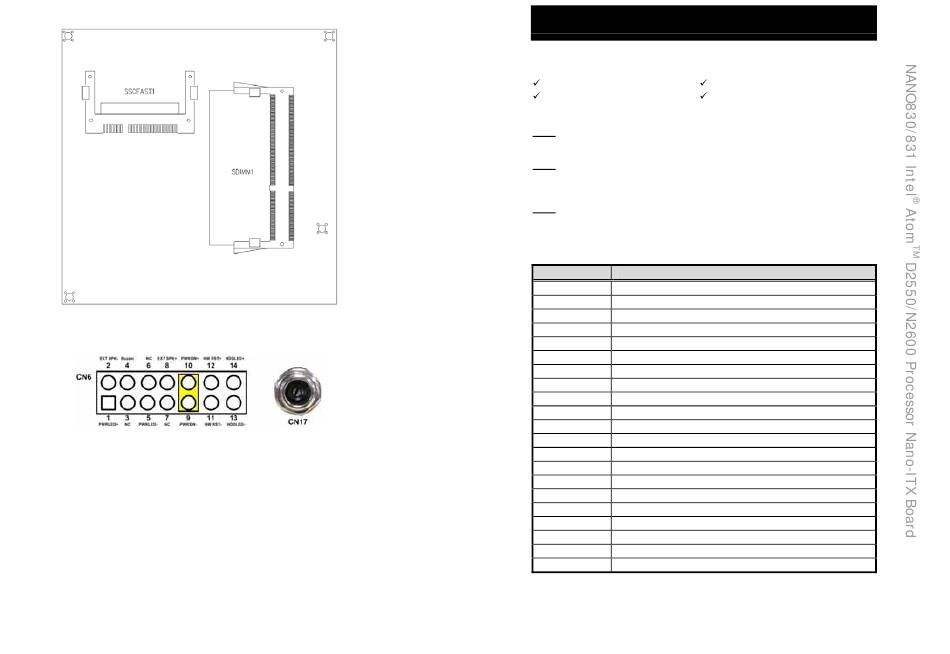

Bottom View
Quick Start
The basic procedures required to power on NANO830/831:
(1). Require at least 60W DC adapter. Ensure that all necessary
peripheral devices are plugged properly.
(2). Check the jumper settings and make sure they are in the
default position; especially JP10 (close).
(3). Firmly install DDR3 memory modules into connector
until fully seated.
(4). Firmly insert the DC adapter into CN17.
(5). Install a momentary on/off button/switch onto CN6, pin 9 and
10. See image above.
(6). Press the power button to start NANO830/831.
4
SDIMM1
9418K830000E
©
Copyright 2012 Axiomtek Co., Ltd.
Version A1 December 2012
Printed in Taiwan
NANO830/831 Series Quick Installation Guide
Checklist
CPU Board x1 Product Information CD x1
Quick Installation Guide x1 COM Port Cable with Bracket,
P=2.0mm x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Note: Please refer to the NANO830/831 series product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
Note: After installing graphics driver and rebooting the computer, the display
is in extended mode. Please click hot key <Ctrl+Alt+F1> to switch
display back to single mode.
Connectors
Connector Description
CN1 Digital I/O Port
CN2 COM2 Connector (NANO830 only)
CN3 COM1 Connector
CN4 LVDS Connector
CN5 Inverter Connector
CN6 Front Panel Connector
CN7 PCI-Express Mini Card Connector
CN8 Power Output Connector
CN9 CPU Fan Connector
CN10 SMBus Connector
CN11 USB Port 4 and 5 Connector
CN12 Ethernet Port 1, USB Port 0 and 1 Stack
CN13 Ethernet Port 2, USB Port 2 and 3 Stack
CN14 VGA Connector
CN16 Audio Jack
CN17 DC Jack Power Connector
CN18 DisplayPort Connector (NANO830 only)
CN19 COM2 Connector (NANO831 only)
SATA1 Serial ATA Connector
TM
SSCFAST1 CFast Socket
SDIMM1 DDR3 SO-DIMM Connector
9418K830000E
©
Copyright 2012 Axiomtek Co., Ltd.
Version A1 December 2012
Printed in Taiwan
1
