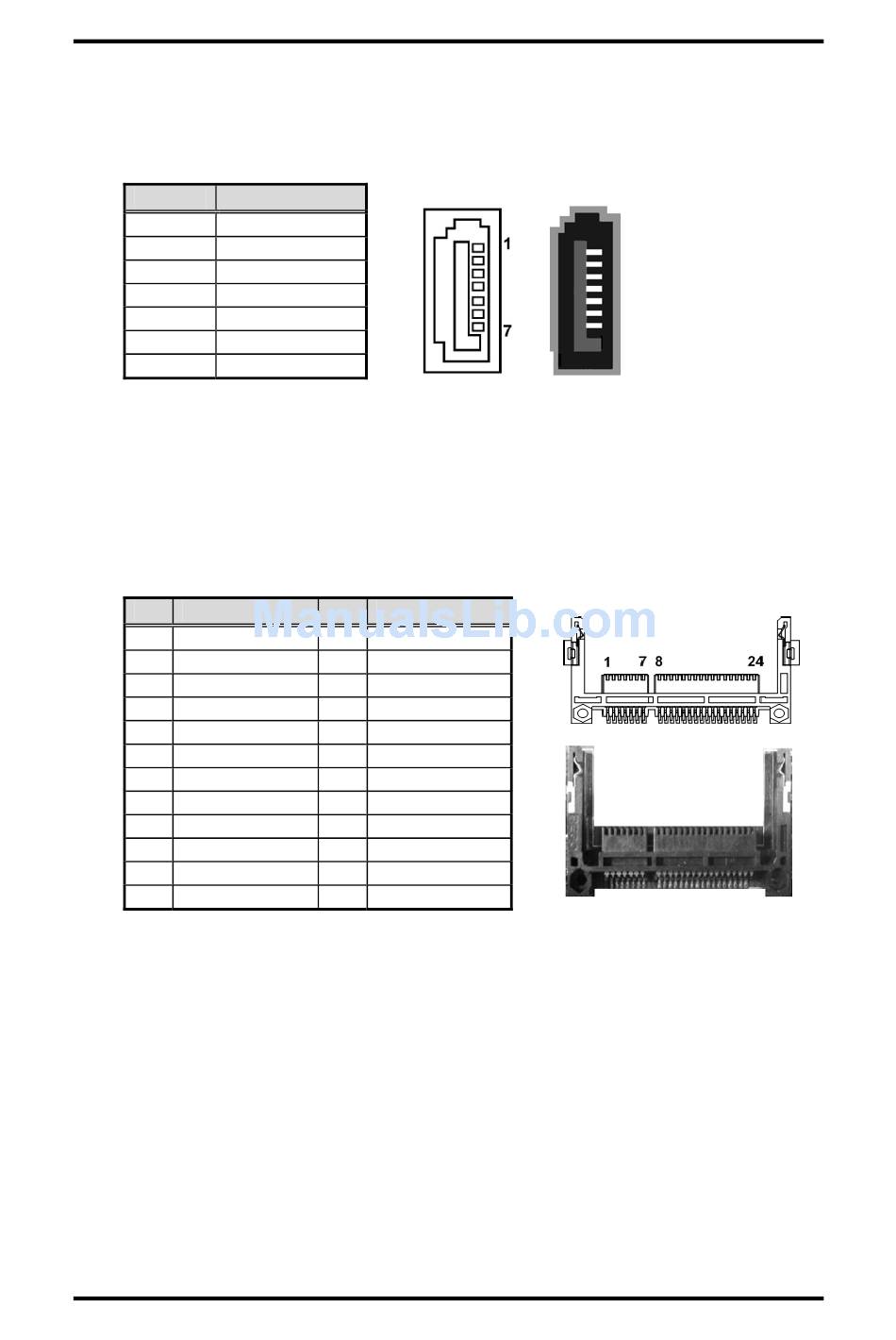

Serial ATA Connector (SATA1)

This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
high-speed SATA interface port. It is a computer bus interface for connecting to device
such as hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
2.4.18 CFast™ Socket (SSCFAST1)
The board is equipped with a CFast
card which is based on the Serial ATA bus. The socket is specially designed to avoid
incorrect installation of the CFast
please make sure the system power is off. The CFast
C: or D: drive in your PC system.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
8 N.C
9 GND
10 N.C
11 N.C
12 N.C
22
TM
D2550/N2600 Processor Nano-ITX Board
TM
socket on the bottom side to support a CFast
TM
card. When installing or removing the CFast
Pin Signal
13 N.C
14 GND
15 N.C
16 N.C
17 N.C
18 N.C
19 N.C
20 +3.3V Level
21 +3.3V Level
22 GND
23 GND
24 N.C
