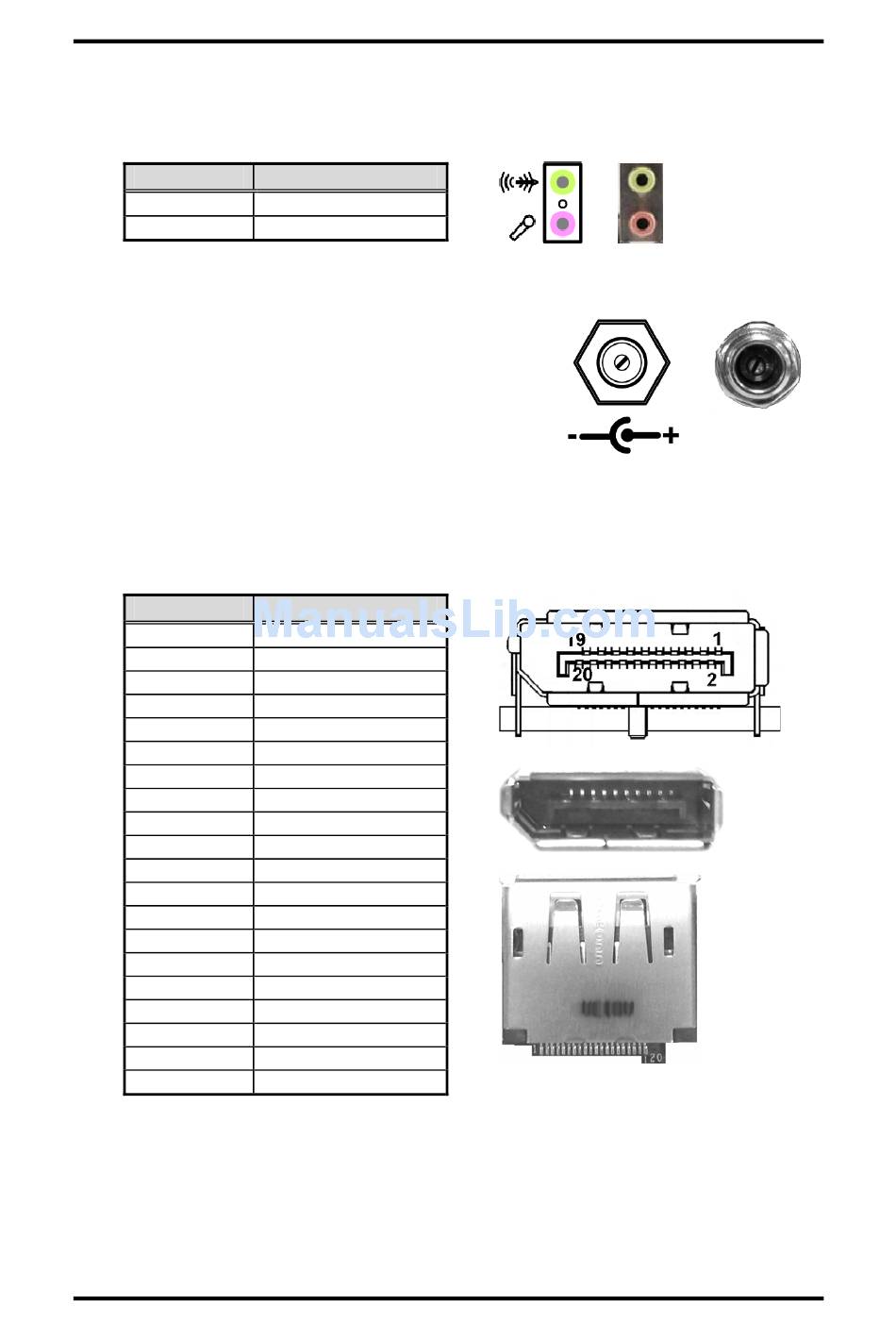

Audio Jack (CN16)

Install onboard audio driver, then connect speaker to line-out jack and microphone to
MIC-in jack.
Pin Color
Green
Pink
2.4.15

DC Jack Power Connector (CN17)

The CN17 is a DC power jack with lock. Firmly
insert at least 60W adapter into this connector.
Loose connection may cause system instability
and make sure all components/devices are
properly installed before connecting this power
jack.
2.4.16

DisplayPort Connector (CN18)

The DisplayPort interface is available through connector CN18 (NANO830 only) which is
also co-layout with a standard 9-pin D-Sub connector (CN19).
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Board and Pin Assignments
®
Atom
Signal
Line_OUT
Mic_IN
Signal
DPB_LANE0
GND
DPB_LANE0#
DPB_LANE1
GND
DPB_LANE1#
DPB_LANE2
GND
DPB_LANE2#
DPB_LANE3
GND
DPB_LANE3#
Detect Pin
GND
DPB_AUX
GND
DPB_AUX#
DPB_HPDE
GND
+3.3V
TM
D2550/N2600 Processor Nano-ITX Board
1 20
