DVI-I Video/Monitor Port

26
Figure 3-6 shows the optional DVI-I video port.
C4 C3
24 17
C5
8
C2 C1

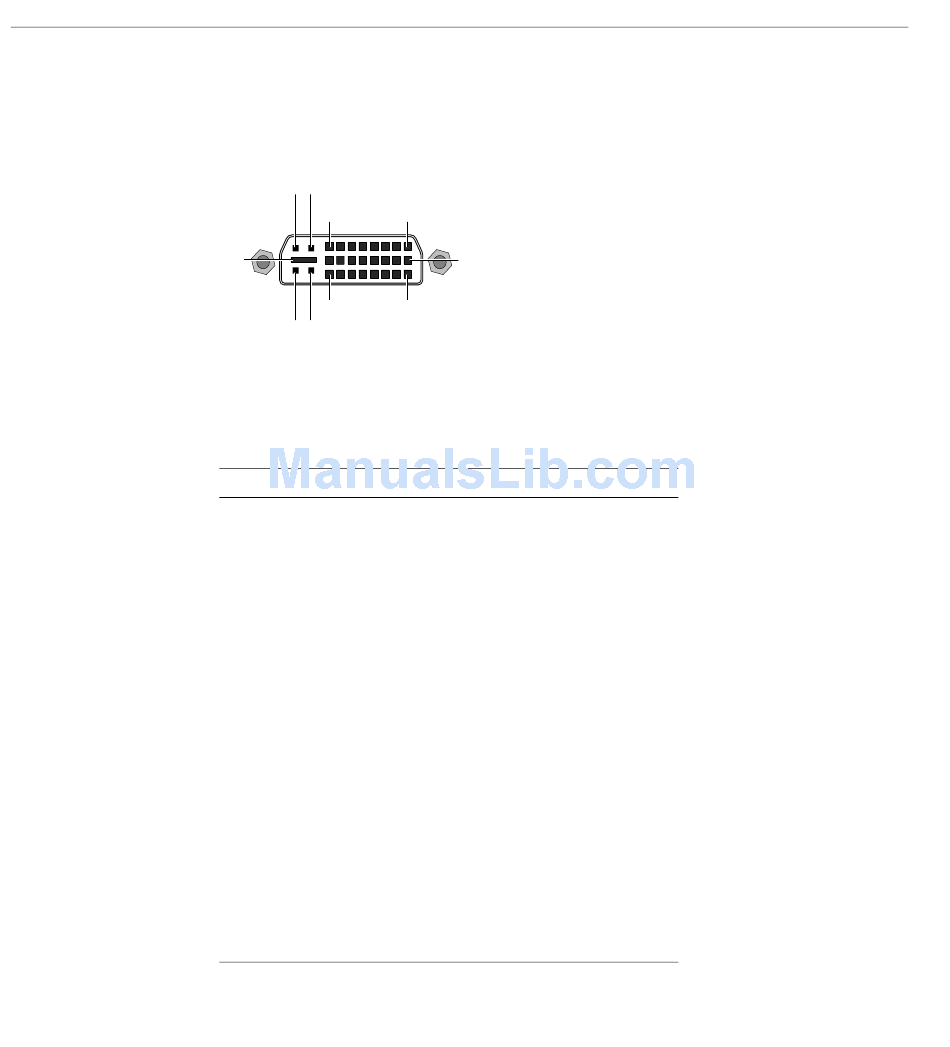

Figure 3-6 Optional DVI-I Port and Pinouts
Table 3-4 shows the port pinout assignments for optional DVI-I port(s).
Table 3-4
DVI-I Video Port Pinout
Pin Assignment
1 DATA 2-
2 DATA2+
3 SHIELD 2/4
4 DATA 4-
5 DATA 4+
6 DDC_CLOCK
7 DDC_DATA
8 VSYNC
9 DATA 1-
10 DATA1+
11 SHIELD 1/3
12 DATA 3-
13 DATA 3+
14 DDC_POWER
15 A_GROUND1
9
1
Pin Assignment
16 HOT_POWER
17 DATA 0-
18 DATA 0+
19 SHIELD 0/5
20 DATA 5-
21 DATA 5+
22 SHIELD CLOCK
23 CLOCK -
24 CLOCK +
C1 A_RED
C2 A_GREEN
C3 A_BLUE
C4 HYNSC
C5 A_GROUND2
C6 A_GROUND3
