Example Nodeboard Features; Figure 1-5 Octane Iii Fan Locations - Silicon Graphics Octane III User Manual

1: System Quick Start and Overview

Example Nodeboard Features

12
Front view
Fans

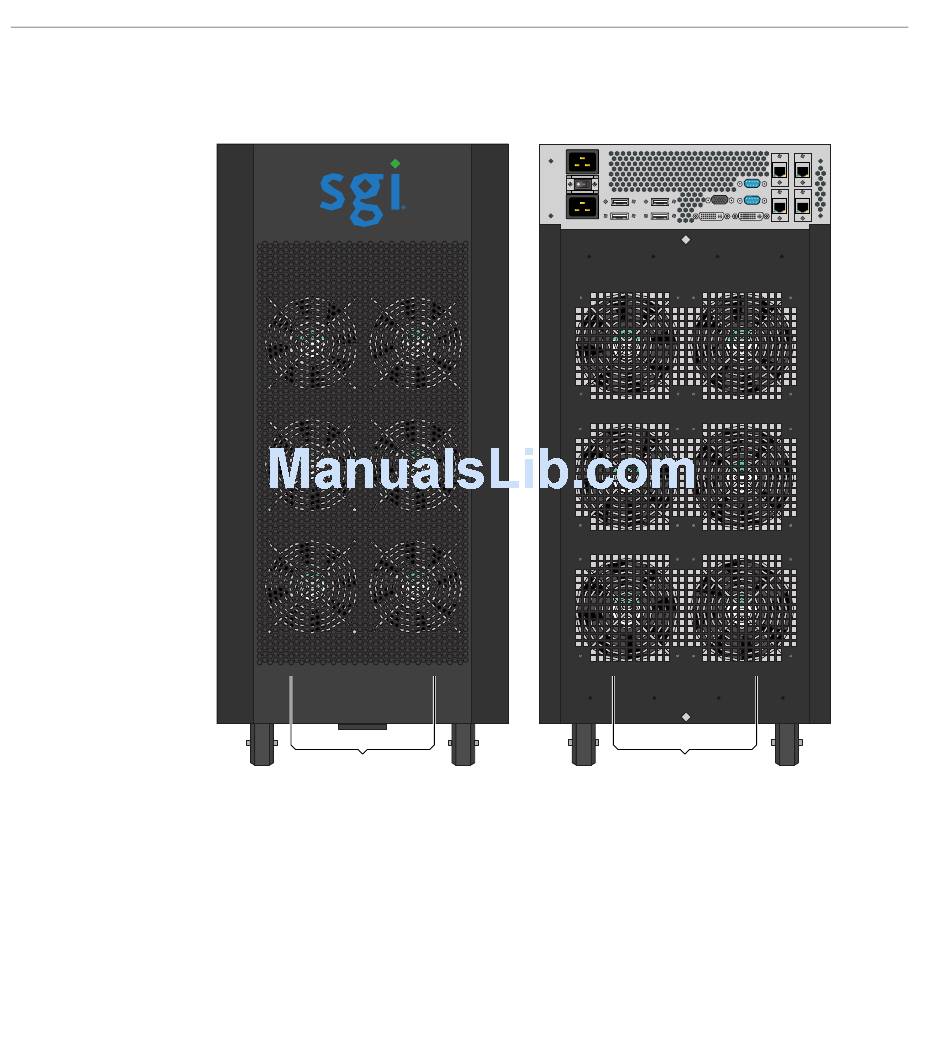

Figure 1-5 Octane III Fan Locations
At the heart of each Octane III compute tray lies a multi-processor based node board. The cluster's
serverboards are based on Intel chipsets at the time this document was published. For information
on AMD chipsets offered with SGI products, check with your SGI sales or service representative.
Rear view
GIGE-0
SW-CONSOLE
USB-0 USB-1
VGA SERIAL
USB-2 USB-3 DVI-0 DVI-1
GIGE-2
Fans
GIGE-1
GIGE-3
