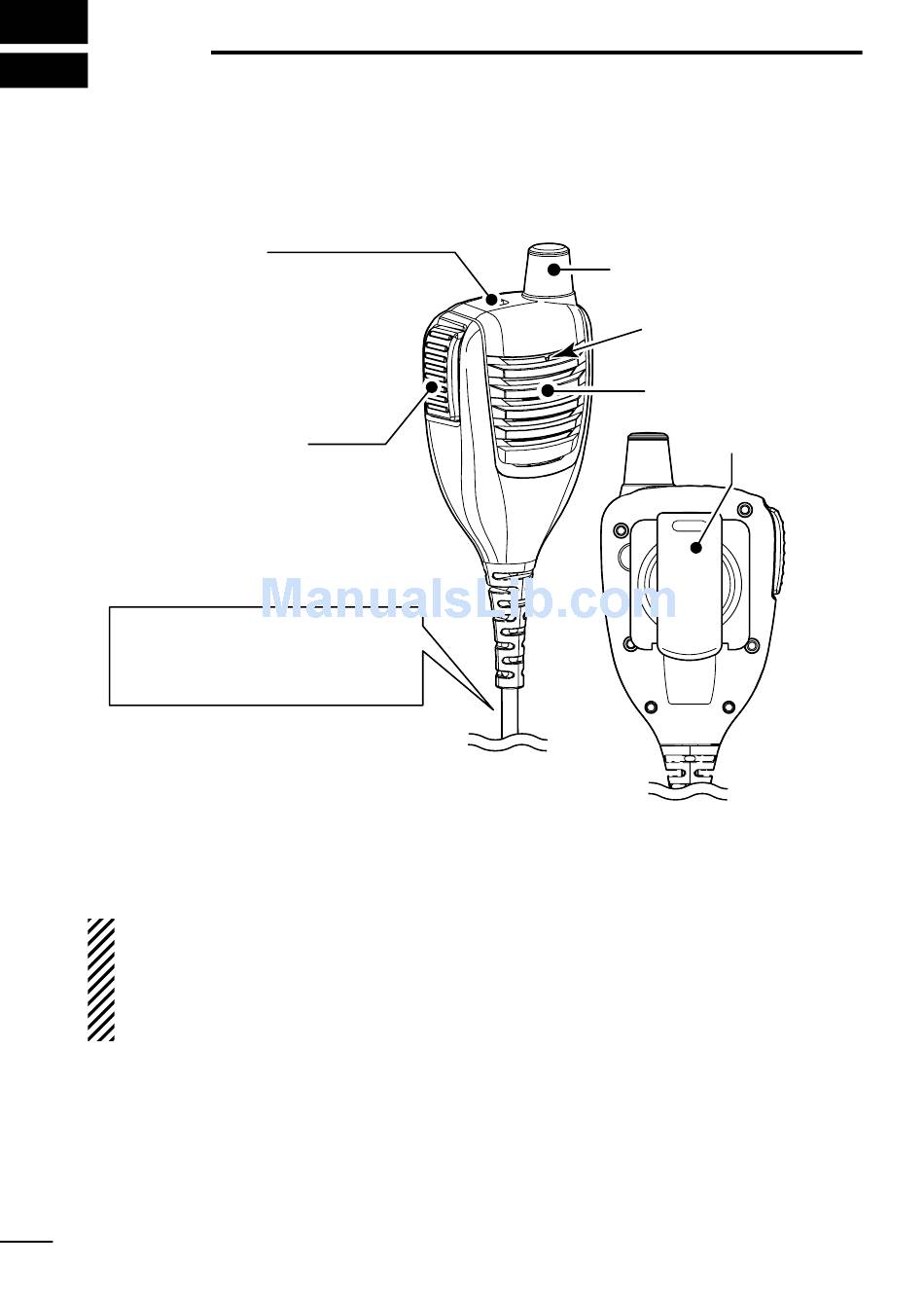

■ Optional HM-169/170GP
description
TOP KEY*
(for HM-160GP only)
*Not available for the
IC-F51/F61 series
transceivers.
PTT SWITCH
Push and hold to
transmit;
release to receive.
Turn the transceiver power
OFF while connecting the
HM-169/170GP.
This illustration is desicribed with HM-170GP.
NEVER mmerse the connector n water. If the connector gets wet,
be sure to dry t BEFORE attachng t to the transcever.
NOTE: The mcrophone s located as shown n the dagram
above. To maxmze the readablty of your transmtted sgnal
(voce), hold the mcrophone approx. 5 to 10 cm from your
mouth, and speak n a normal voce level.
45

SPEAKER-MICROPHONE

GPS ANTENNA
(for HM-170GP only)
Microphone
Speaker
Belt clip
