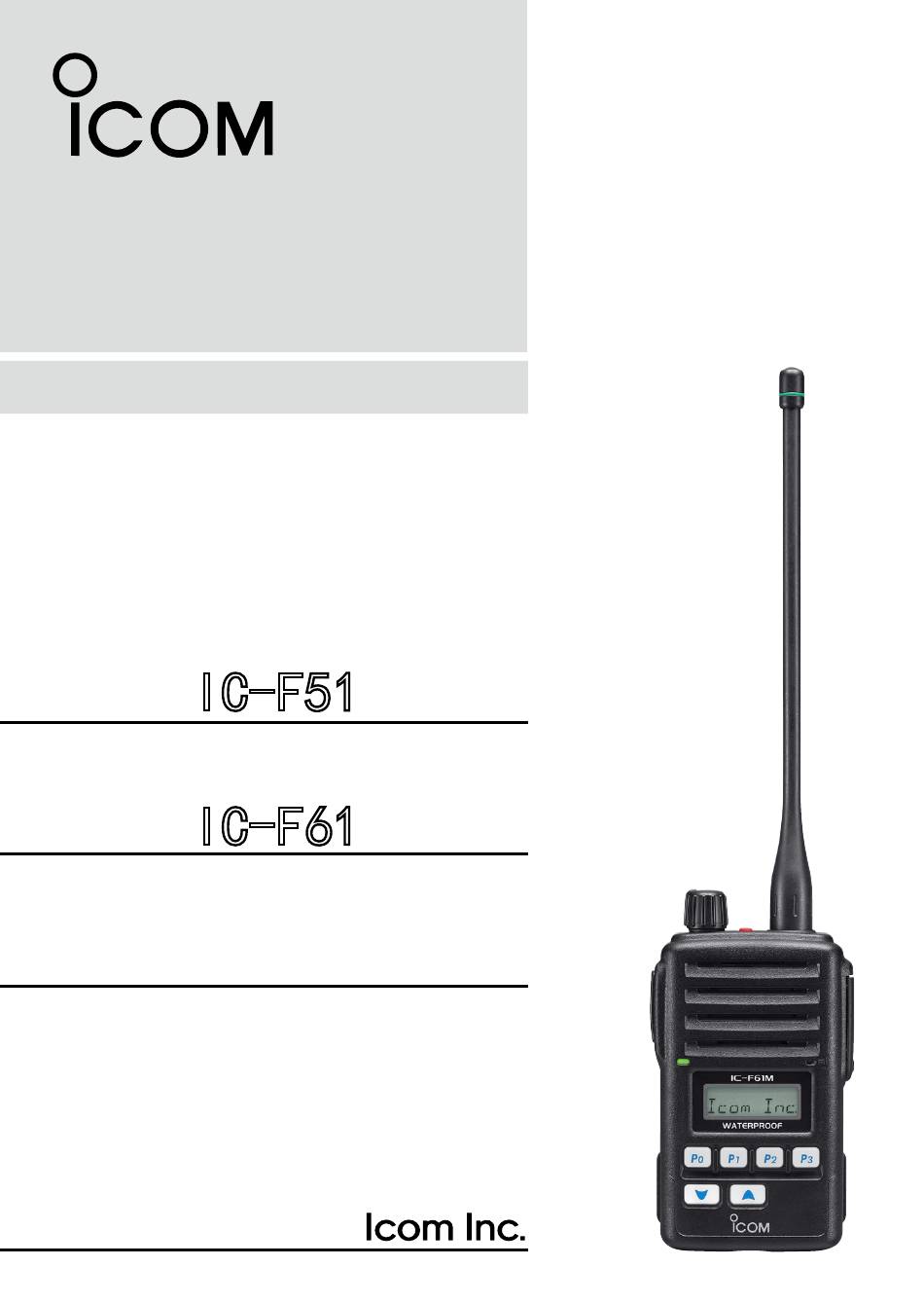

- Page 1 INSTRUCTION MANUAL UHF MARINE TRANSCEIVER IC-F51 IC-F61...
-
Page 2: Important
FOREWORD Thank you for purchasing this Icom transceiver. The IC-F61M uhf marine is designed and built with Icom’s state of the art technology transceiver and craftsmanship. With proper care this product should provide you with years of trouble-free operation. IMPORTANT... -
Page 3: Recommendation
DANGER! Use and charge only specified Icom battery packs with Icom transceivers or Icom chargers. Only Icom battery packs are tested and approved for use with Icom transceivers or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. - Page 4 PRECAUTIONS R WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. The continuous high vol- ume operation may cause a ringing in your ears. If you experience the ringing, reduce the volume level or discontinue use. R WARNING! NEVER operate the transceiver while driving a vehi- cle.
-
Page 5: Operating Notes
• If you wear a portable transceiver on your body, ensure that the an- tenna is at least 2.5 cm from your body when transmitting. Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France,... -
Page 6: Table Of Contents
TABLE OF CONTENTS FOREWORD ..................i IMPORTANT ..................i EXPLICIT DEFINITIONS ..............i RECOMMENDATION ................ii PRECAUTIONS ................... ii OPERATING NOTES................iv 1 ACCESSORIES ................. 1–3 ■ Supplied accessories ..............1 ■ Accessory attachments .............. 2 2 PANEL DESCRIPTION ............4–12 ■... - Page 7 7 SWIVEL BELT CLIP .............. 37–38 ■ Optional MB-86 contents ............37 ■ Attaching ................... 37 ■ Detaching.................. 38 8 OPTIONS ................39–42 9 TROUBLESHOOTING ............43–44 10 UHF MARINE CHANNEL LIST ........... 45 11 SPECIFICATIONS ................ 46 12 INFORMATION ................47 ■...
-
Page 8: Accessories
ACCESSORIES ■ Supplied accessories Antenna Battery pack Jack cover Key sticker* Belt clip There are no names on the programmable function keys since the functions can be freely assigned to [P0] to [P3], [Red], [ and [ ] keys. Put the supplied key stickers on the appropriate keys for easy recognition of that key’s assigned function. -
Page 9: Accessory Attachments
ACCESSORIES ■ Accessory attachments D Flexible antenna Connect the supplied flexible antenna to the antenna connector. CAUTION: • NEVER carry the transceiver by holding the antenna. • DO NOT connect the antenna other than listed on page 41. • Transmitting without an antenna may damage the transceiver. D Battery pack To attach the battery pack: Slide the battery pack on the back of the transceiver in the direc-... - Page 10 ACCESSORIES D Jack cover Attach the jack cover when the optional equipment is not used. To attach the jack cover: To detach the jack cover: q Insert the jack cover into the e Unscrew the screw using a [SP MIC] jack. phillips screwdriver.
-
Page 11: Panel Description
PANEL DESCRIPTION ■ Front, top and side panels Speaker Microphone Function display (p. 6) q VOLUME CONTROL [VOL] Turns power ON and adjusts the audio level. w RED BUTTON The desired function can be assigned by your dealer. (p. 7) e ANTENNA CONNECTOR Connects the supplied antenna. - Page 12 < Intended Country of Use > A-6686H-1EU-e Printed in Japan © 2008−2015 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
