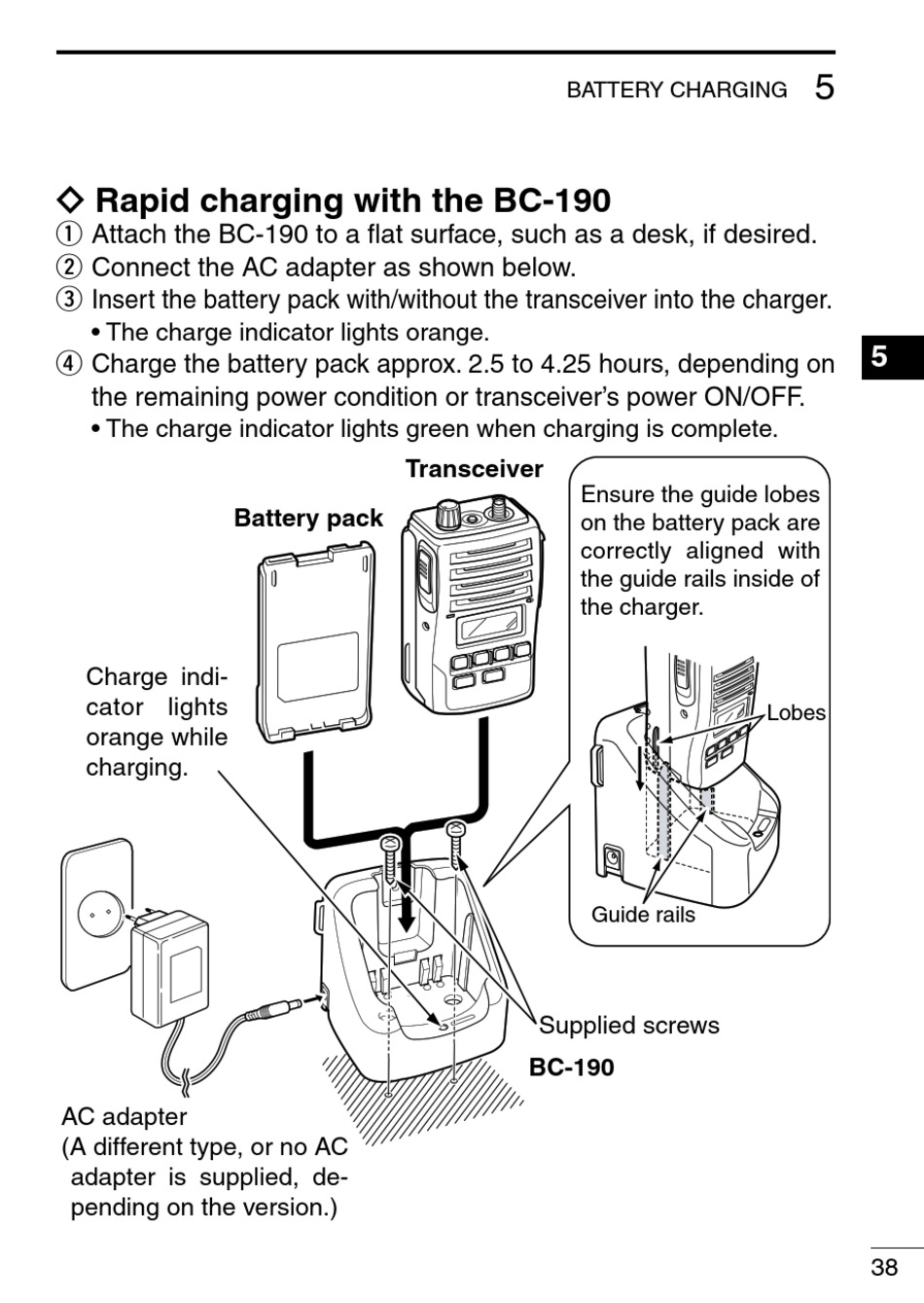

ï Rapid charging with the BC-190
q Attach the BC-190 to a flat surface, such as a desk, f desred.
w Connect the AC adapter as shown below.
e Insert the battery pack wth/wthout the transcever nto the charger.
• The charge ndcator lghts orange.
r Charge the battery pack approx. 2.5 to 4.25 hours, dependng on
the remanng power condton or transcever's power ON/OFF.
• The charge ndcator lghts green when chargng s complete.
Charge indi-
cator lights
orange while
charging.
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Transceiver
Battery pack
BATTERY CHARGING
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside of
the charger.
Guide rails
Supplied screws
BC-190
5
5
Lobes
