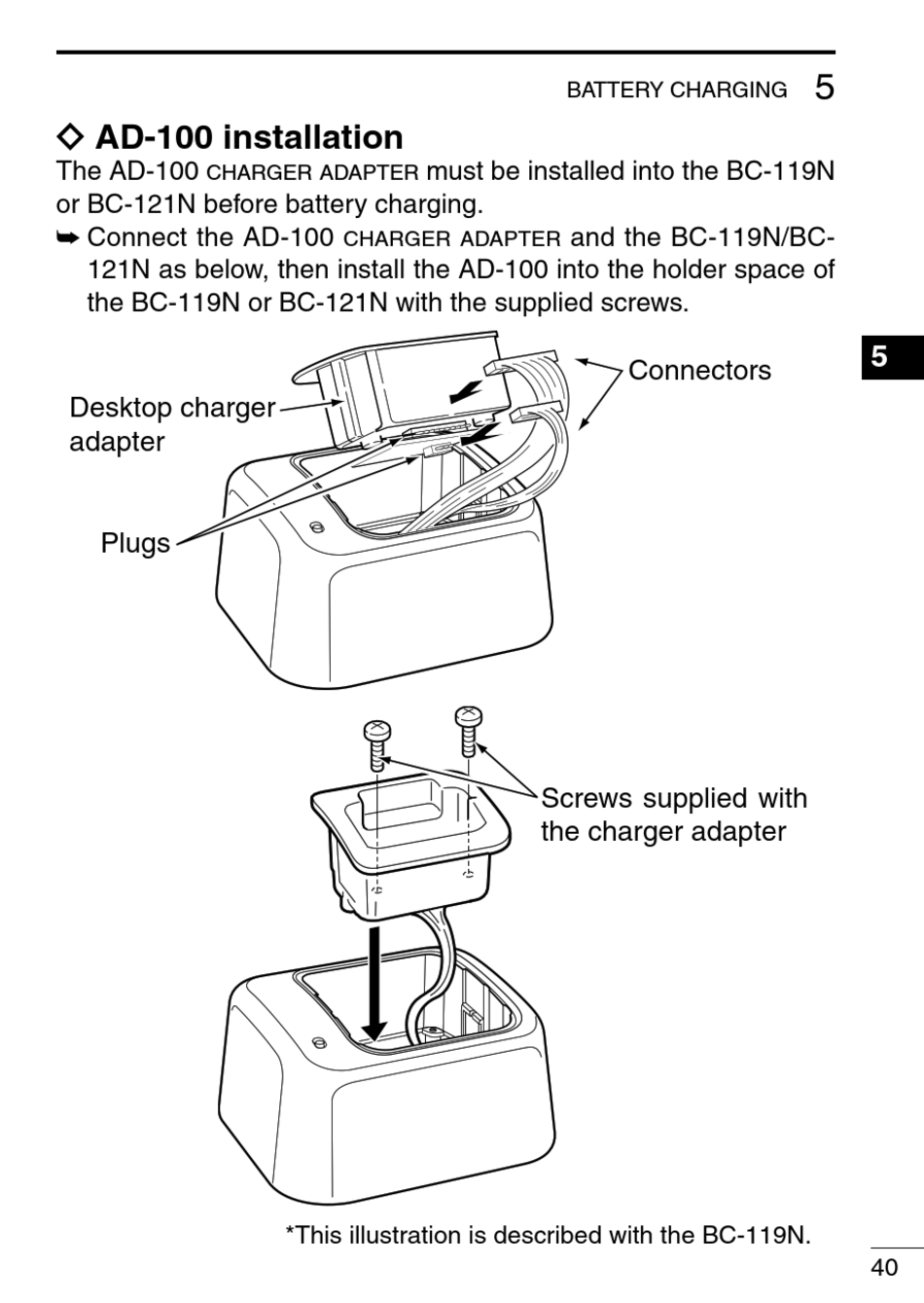

ï AD-100 installation
The AD-100
charger adapter
or BC-121N before battery chargng.
➥ Connect the AD-100
121N as below, then nstall the AD-100 nto the holder space of
the BC-119N or BC-121N wth the suppled screws.
Desktop charger
adapter
Plugs
must be nstalled nto the BC-119N
charger adapter
*This illustration is described with the BC-119N.
BATTERY CHARGING
and the BC-119N/BC-
Connectors
Screws supplied with
the charger adapter
