9.3. Setting the Privacy Masking

When there are locations that are required to be kept out of view in a camera scene, up to 8 of such locations
can be masked out of view.
Note
Only 2 areas can be masked on the same screen. Depending on the masked area and its size, the number of
masking areas that can be set decreases.
1. Tilt the joystick up or down to select "PRIVACY NO." on the
privacy masking setting screen.
2. Select the desired Privacy No. to be set from "01" through "08" by
tilting the joystick left or right.
3. Tilt the joystick up or down to select "DISPLAY," then select "ON"
by tilting the joystick left or right. The masking area can be set in
the center of the screen.
4. Select "ACTION" by tilting the joystick up or down.
5. Select "MOVE" by tilting the joystick left or right, then press the
Set key.
" " appears on the left side of "ACTION."
6. Determine the center position of the angle of view using the
joystick, then press the Set key.
" " on the left side of "ACTION" disappears.
7. Select "V POS" by tilting the joystick left or right, then press the
Set key.
" " appears on the left side of "ACTION."
8. Move the masking position in the vertical direction by tilting the
joystick up or down, then press the Set key.
" " on the left side of "ACTION" disappears.
34

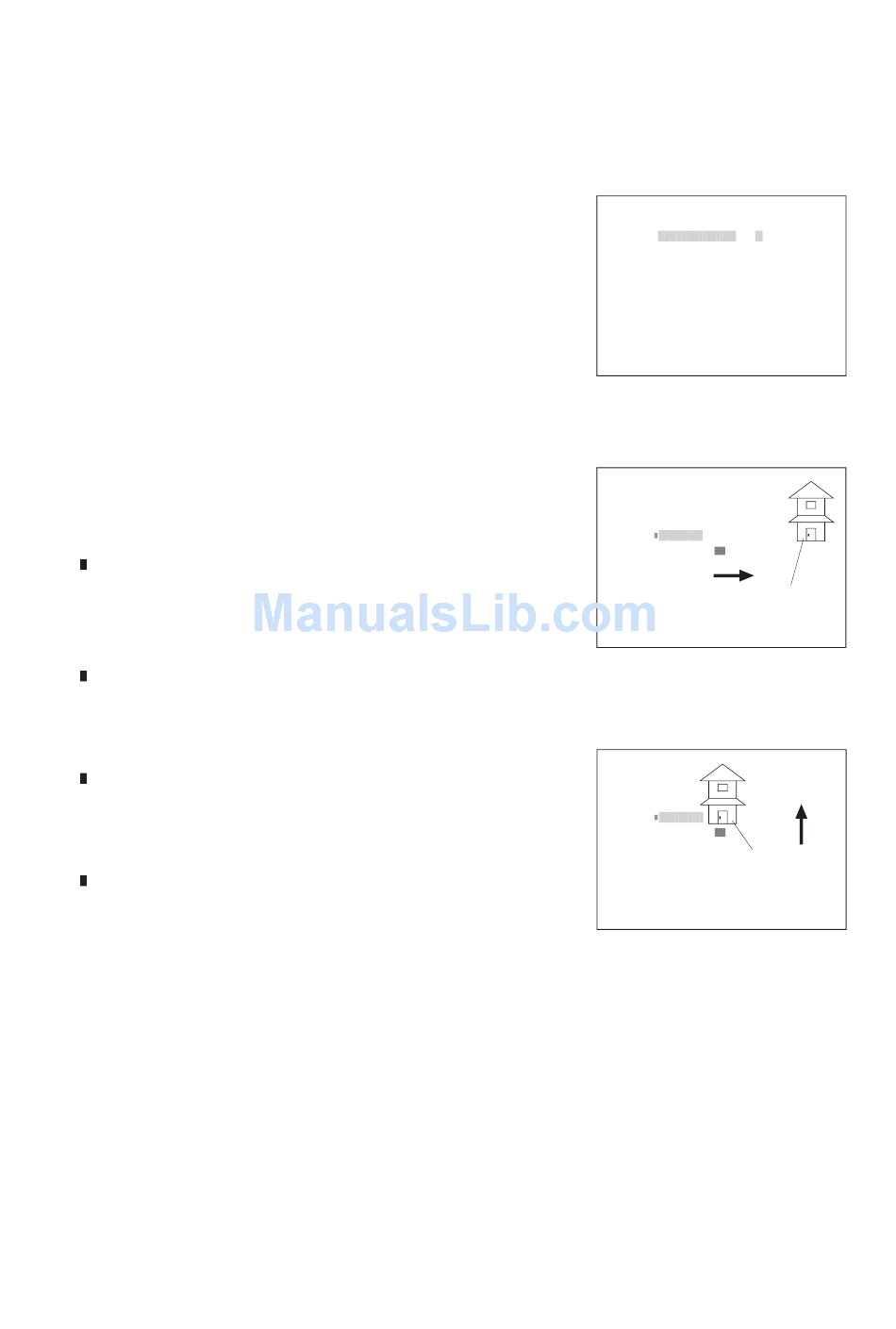

P R I V A C Y S E T
P R I V A C Y N O . P R I V A C Y N O . : 0 1 0
D I S P L A Y : O F F
A C T I O N : M O V E
S A V E
E X I T
P R I V A C Y S E T
P R I V A C Y N O . : 0 1
D I S P L A Y : O F F
A C T I O N A C T I O N : M O V E
S A V E
E X I T
Subject to be
masked out of view.
P R I V A C Y S E T
P R I V A C Y N O . : 0 1
D I S P L A Y : O F F
A C T I O N A C T I O N : V P O S
S A V E
E X I T
Object that the
masking is required.
