Toa C-CC774 User Manual

Combination dome camera systems
Hide thumbs Also See for C-CC774:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

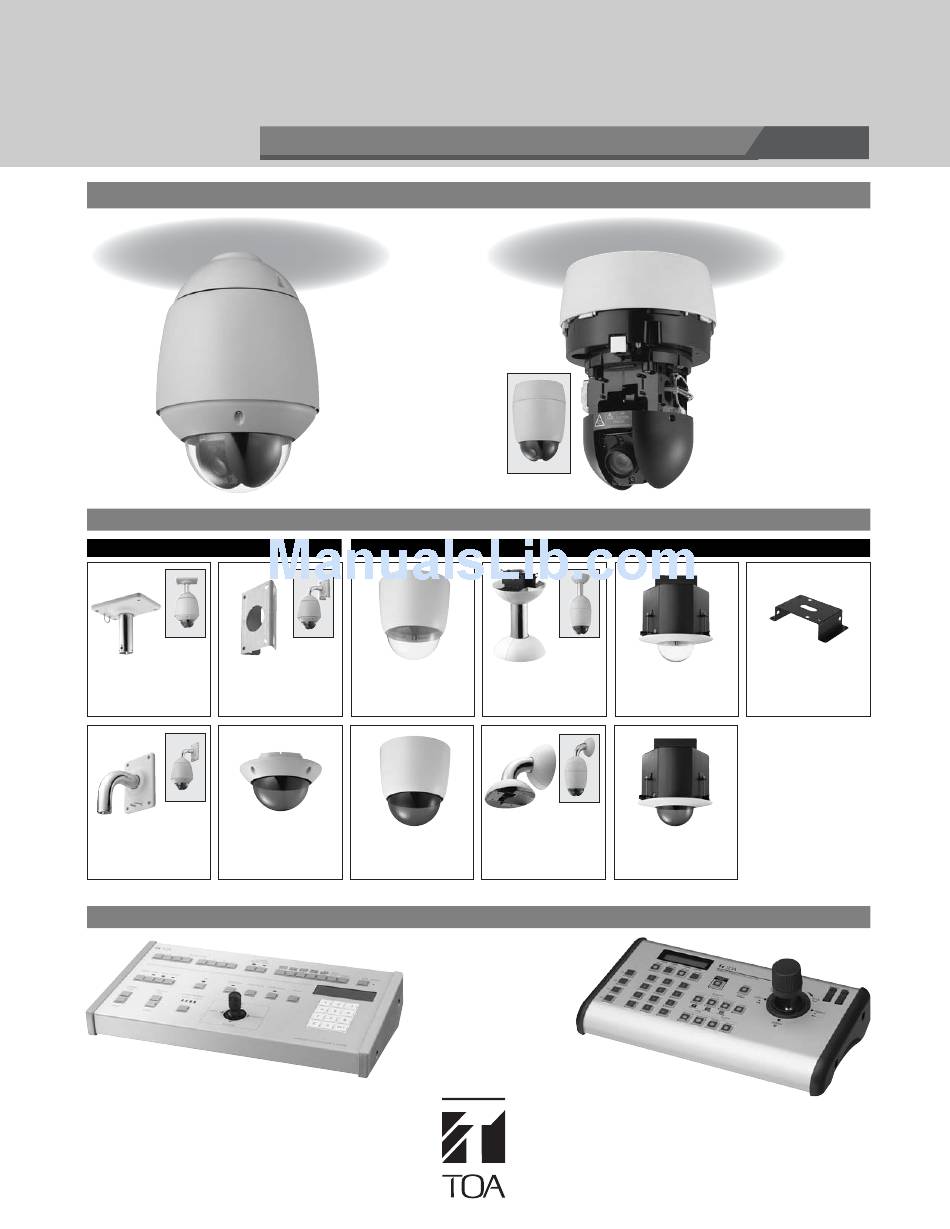

DOME CAMERA SYSTEMS
For Outdoor Use
For Outdoor Use
C-BC711P
C-BC711PM
Ceiling Suspension
Pole Mounting
Bracket
Bracket
C-BC711W
C-A711DM
Wall Mounting
Smoked Dome
Bracket
Cover
C-RM500
Remote Controller
for Camera and Multiplexer
Combination Dome Cameras

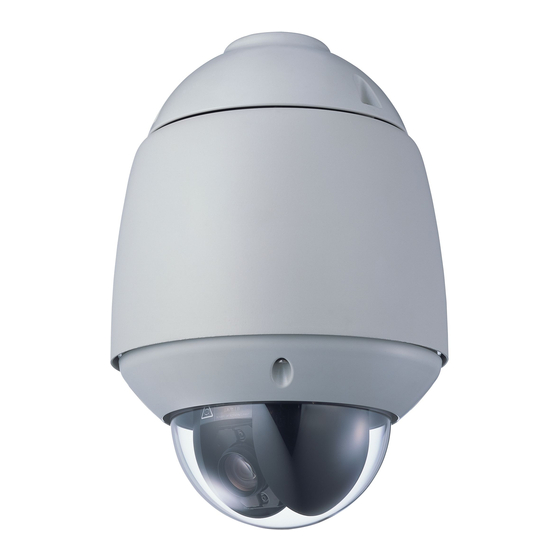

C-CC774
C-CC764
multi-function type
C-CC714
standard type
Brackets and Covers
C-BC511C
Ceiling Mount
Cover
C-BC511C-S
Ceiling Mount
Cover (Smoked)
Remote Controllers
COMBINATION
For Indoor Use
with Ceiling Mount
Cover C-BC511C
For Indoor Use
C-BC511P
C-BC511U
Ceiling Suspension
Flush Ceiling
Bracket
Mounting Bracket
C-BC511W
C-BC511U-S
Wall Mounting
Flush Ceiling Mounting
Bracket
Bracket (Smoked)
C-RM1000
Remote Controller
for Camera and Digital Video Recorder
NTSC
C-CC574
C-CC564
multi-function type
C-CC514
standard type
C-BC511A
Ceiling Mounting
Bracket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CC774 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa C-CC774

Summary of Contents for Toa C-CC774

  • Page 1 COMBINATION DOME CAMERA SYSTEMS NTSC Combination Dome Cameras For Outdoor Use For Indoor Use C-CC774 C-CC574 C-CC764 C-CC564 multi-function type multi-function type C-CC714 C-CC514 standard type standard type with Ceiling Mount Cover C-BC511C Brackets and Covers For Outdoor Use For Indoor Use...
  • Page 2 12X digital zooming can be activated, resulting in an extraordinary combined zoom factor of up to 420X*. * C-CC574 and C-CC774 cameras are equipped with a high-speed, TOA Combination Dome Cameras wide-angle lens having a 35X zoom while C-CC564 and C-CC764...
  • Page 3 (meets IP66 standards) Combination dome cameras also incorporate a separate B/W C-CC714, C-CC764 and C-CC774 utilize a waterproof and mode. At night, as light intensity decreases, this mode dustproof design that fully conforms to IP66 standards and can be automatically activates, boosting camera sensitivity and making it safely installed outdoors.

  • Page 4: Other Functions

    When the camera has rotated to some degree of deviation. ■ ■ Flexible installation options. Auto Refresh Function TOA cameras can easily be installed on ceilings, walls or on poles Cleans horizontal rotation contacts periodically. thanks to the wide range of mounting brackets available. ■ Other functions.

  • Page 5: Setting Guide

    TRACE 1 PAUSE TIME Sets the stop duration of trace movements. Can be only set for the C-CC564, C-CC574, C-CC764 and C-CC774. Can be only set for the C-CC564 and C-CC574. Can be only set for the C-CC574 and C-CC774.
  • Page 6 C-CC774/C-CC764/C-CC714 COMBINATION DOME CAMERA (OUTDOOR USE) C-CC774 C-CC764 FEATURES FEATURES • 255 preset positions + Home position • 255 preset positions + Home position • 420X zoom (optical 35X, electronic 12X) • 276X zoom (optical 23X, electronic 12X) • Electronic Image Stabilizer •...

  • Page 7: Specifications

    Brackets and Dome Cover C-BC711P Suspension Bracket The C-BC711P is exclusively designed to be used to suspend TOA's outdoor C-CC714 combination camera from a ceiling or eaves. FEATURES • 255 preset positions + Home position Finish Base: Aluminum, light gray, paint Pipe: Stainless steel (SUS304) •...
  • Page 8 C-CC574/C-CC564/C-CC514 COMBINATION DOME CAMERA (INDOOR USE) C-CC574 C-CC564 FEATURES FEATURES • 255 preset positions + Home position • 255 preset positions + Home position • 420X zoom (optical 35X, electronic 12X) • 276X zoom (optical 23X, electronic 12X) • Electronic Image Stabilizer •...
  • Page 9 • Pan/tilt maximum rotating speed is 360°/sec Ceiling Mount Cover • 1/4 type CCD image device The C-BC511C is a camera installation cover designed solely for mounting TOA's • 480 lines high resolution Combination Cameras. The cover is used when mounting the Combination •...

  • Page 10: Remote Controller

    It allows video images to be switched remotely and control combination cameras connected to the Digital Video Recorder. can handle a maximum of 16 TOA's Combination Dome Cameras when A built-in 3-axis joystick allows main operations to be performed with one used together with the TOA Multiplexer.

  • Page 11: Interface Unit

    C-AL80 C-IF500 INTERFACE UNIT ALARM UNIT A useful option for configuring camera systems, the C-IF500 functions as a The C-AL80 Alarm Unit serves as the main controller for the alarm splitter. It provides control over expanding a camera system when the requirements of a system by converting alarm signals initiated by externally distance is over 1.2km (max.
  • Page 12 C-CC774/C-CC764/C-CC714 APPEARANCE AND DIMENSIONAL DIAGRAM C-CC774 C-BC711W Multi-pair cable 8 P, loose end Cable end: 2 P loose end BNC-R jack Coaxial cable length Power cord length Approx. 1.8 m Approx. 1.8 m Applicable camera Multi-pair cable length Approx. 1.8 m...
  • Page 13 C-CC574/C-CC564/C-CC514 APPEARANCE AND DIMENSIONAL DIAGRAM C-CC574/C-CC564/C-CC514 C-BC511A 13x35 4–ø4.5 4–ø4.5 (Anchor bolt mounting hole) (Electric work box mounting hole) 4–ø7 4–M4 Connector 1 (Safety wire mounting hole) (Camera mounting hole) BNC jack Power supply terminal block 83.5 ø140 – 145mm (Mounting hole in the ceiling) Anchor bolt...

  • Page 14: System Examples

    Digital Video Recorder C-DR161 Series C-DR091 Series Remote Controller Monitor Digital Video Recorder C-RM1000 C-DR161 Series C-DR091 Series Combination Dome Camera C-CC764 TOA Corporation URL : http://www.toa.jp/ Specifications are subject to change without notice. Printed in Japan (0701) 833-53-018-1B u...
