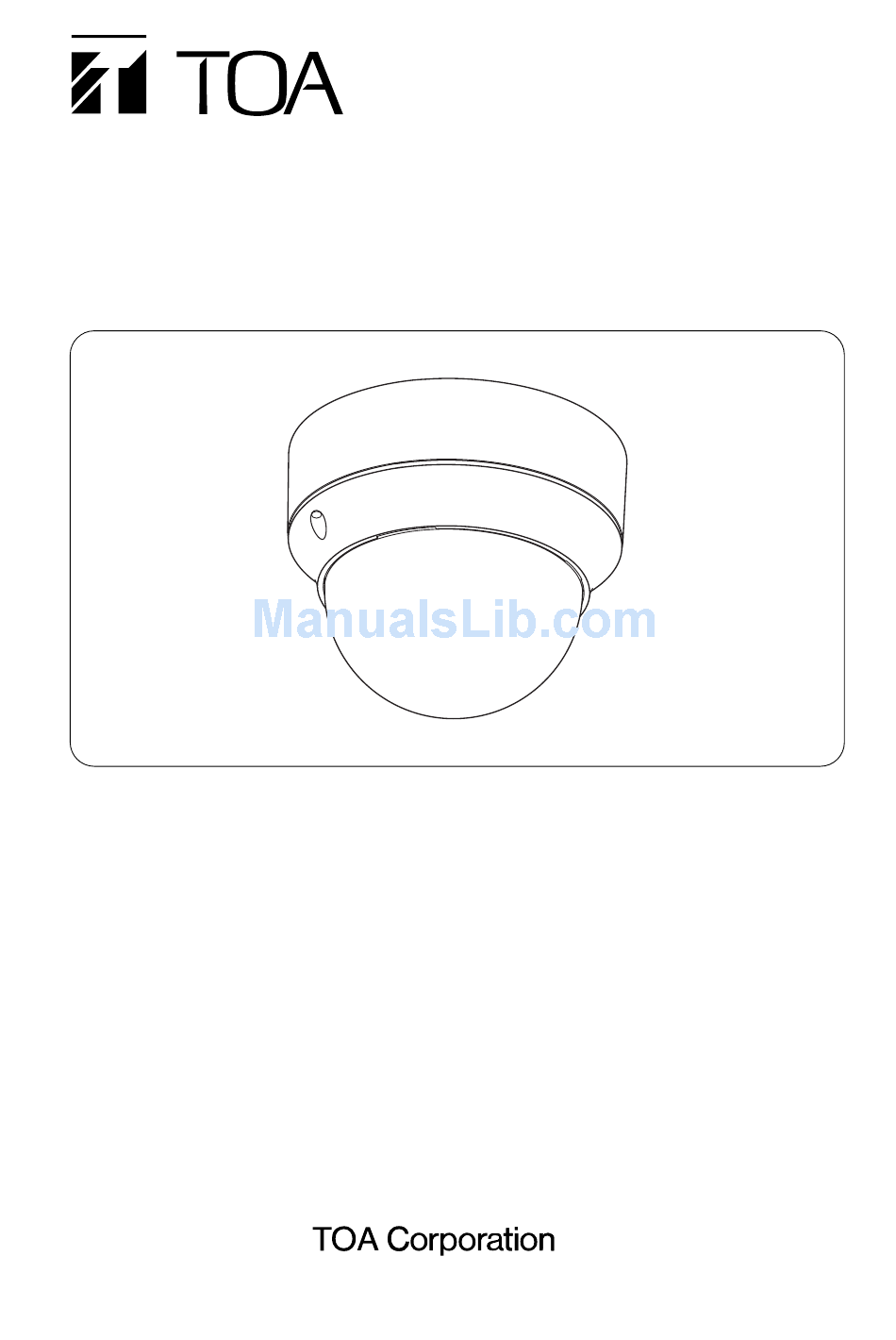

COLOR DOME CAMERA

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 3
3. HANDLING PRECAUTIONS ..................... 3
4. NOMENCLATURE ..................................... 4
5.1. Installation ............................................ 5
6. CONNECTIONS .......................................... 8
7. ADJUSTMENT ............................................ 9
Thank you for purchasing TOA's Color Dome Camera. Please carefully follow the instructions in this
manual in order to ensure long, trouble-free use of your color camera.
INSTRUCTION MANUAL
C-CV24-3 CU
C-CV24-2 NTSC
8.1. Adjustment Switch .............................. 10
8.3. Shutter Speed Switch ......................... 10
(TROUBLESHOOTING) .......................... 11
10. SPECIFICATIONS .................................... 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CV24-3 CU and is the answer not in the manual?

Questions and answers

Related Manuals for Toa C-CV24-3 CU

Summary of Contents for Toa C-CV24-3 CU

  • Page 1: Table Of Contents

    Thank you for purchasing TOA’s Color Dome Camera. Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your color camera. INSTRUCTION MANUAL C-CV24-3 CU C-CV24-2 NTSC 8. ABOUT THE MODE SETTING SWITCH 8.1. Adjustment Switch ... 10 8.2.

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section in order to ensure long, trouble-free operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings regarding safety.

  • Page 3: General Description

    Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Nomenclature

    4. NOMENCLATURE [Bottom view] [Side view] (1) Power input cable (24 V AC or 12 V DC) (2) Video output cable (3) Monitor output terminal (RCA pin jack) (4) Mode setting switch (5) Iris control (6) Vari-focal lens OFF ON IRIS F.ADJ 1/60...

  • Page 5: Installation

    5. INSTALLATION 5.1. Installation 1. Determine the installation method. 1-1. Unexposed wiring Using the installation hole gauge, make a cable entry hole in the ceiling. Camera mounting hole 30 mm Cable entry hole Ø35 mm Camera direction 1-2. Open wiring Cut out the thin camera section shown below using a pair of nippers.
  • Page 6 Because the mounting screws are not supplied with the camera, prepare appropriate screws for the application. (Use screws that are over 4 mm in nominal diameter and longer than 25 mm.) Ceiling mounting : Orient the which the camera is to be pointed. Wall mounting : Orient the mark...
  • Page 7 Inner Cover Adjustment Note: Take care not to touch the dome cover window (transparent section) during adjustment. 1. Hold the dome cover so that the mark is positioned as shown in the figure below. 2. Rotate the dome inner cover with the thumbs of both hands to align the scale. 3.

  • Page 8: Connections

    mark and then rotating the cover clockwise. (Be sure that the dome cover’s alignment mark is properly aligned with the camera’s alignment mark.) Alignment mark About the alignment marks The dome cover has two alignment marks. Note that the mark to be aligned with the camera’s depending on whether the camera is being mounted on a wall or ceiling.

  • Page 9: Adjustment

    7. ADJUSTMENT 1. Switch on the camera power after completing camera connections. Power is supplied to the camera. 2. Normally, set the Shutter Speed switch to "1/60" position. Flickering of the picture may interfere with the view under fluorescent lamp in the area with power frequency of 50 Hz.

  • Page 10: About The Mode Setting Switch

    8. ABOUT THE MODE SETTING SWITCH Set the Mode Setting switch for the best possible picture reproduction depending on installation conditions. F.ADJ 1/60 8.1. Adjustment Switch Set this switch when adjusting the lens focus.(Provides the same effect as when using the ND filter.) OFF ON Standard position : Set to OFF after lens adjustment completion.

  • Page 11: If You Think There Is A Failure: (Troubleshooting)

    9. IF YOU THINK THERE IS A FAILURE: (TROUBLESHOOTING) Symptom • The monitor’s power switch is not Camera images are set to ON. not displayed on the • Cables are not correctly connected. monitor. • The BNC plug is not correctly soldered.

  • Page 12: Specifications

    10. SPECIFICATIONS Model No. 24 V AC, 50/60 Hz or 12 V DC Power Source 2 W (maximum current: 800 mA) Power Consumption 1/4 type IT-CCD Image Device 768 (H) x 494 (V), 380,000 pixels Number of Effective Pixels 2:1 interlace Scanning System H: 15.734 kHz, V: 59.94 Hz Scanning Frequency...
