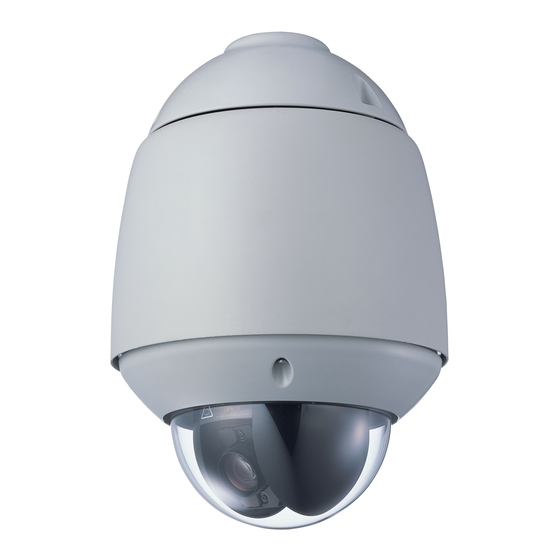

Toa C-CC764 User Manual

Combination dome camera systems
Hide thumbs Also See for C-CC764:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

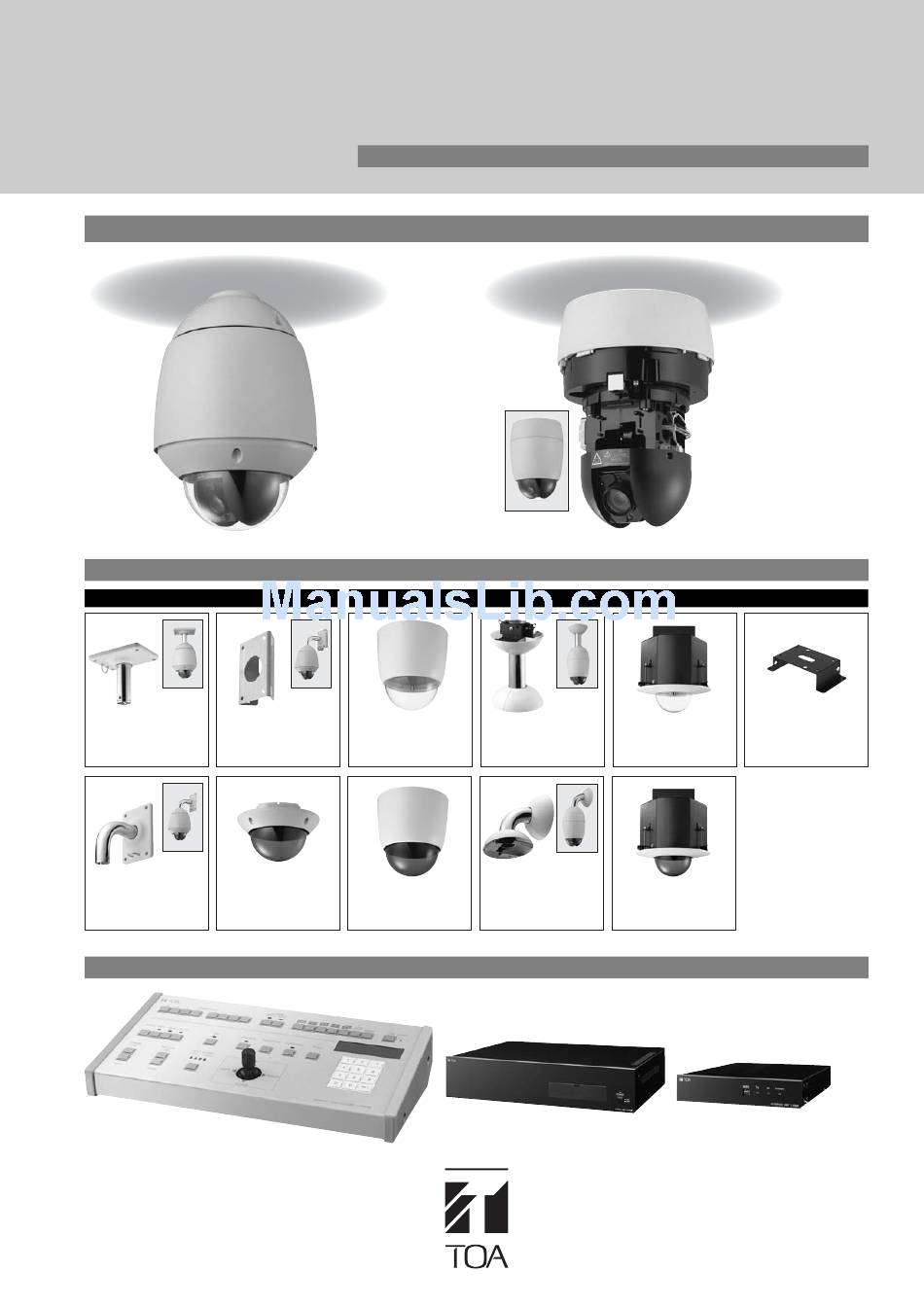

DOME CAMERA SYSTEMS
For Outdoor Use
For Outdoor Use
C-BC711P
C-BC711PM
Ceiling Suspension
Pole Mounting
Bracket
Bracket
C-BC711W
C-A711DM
Wall Mounting
Smoked Dome
Bracket
Cover
C-RM500
Remote Controller
Combination Dome Cameras
C-CC764
multi function type
C-CC714
standard type
Brackets and Cover
C-BC511C
Ceiling Mount
Cover
C-BC511C-S
Ceiling Mount
Cover (Smoked)
Controller and Units
C-AL80
Alarm Unit
COMBINATION
For Indoor Use
with Ceiling Mount
Cover C-BC511C
For Indoor Use
C-BC511P
C-BC511U
Ceiling Suspension
Flush Ceiling
Bracket
Mounting Bracket
C-BC511W
C-BC511U-S
Wall Mounting
Flush Ceiling Mounting
Bracket
Bracket (Smoked)
C-CC564
multi function type
C-CC514
standard type
C-BC511A
Anchor Bracket
C-IF500
Interface Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CC764 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa C-CC764

Summary of Contents for Toa C-CC764

  • Page 1 DOME CAMERA SYSTEMS Combination Dome Cameras For Outdoor Use C-CC764 multi function type C-CC714 standard type For Outdoor Use C-BC711P C-BC711PM Ceiling Suspension Pole Mounting Bracket Bracket C-BC711W C-A711DM Wall Mounting Smoked Dome Bracket Cover C-RM500 Remote Controller COMBINATION For Indoor Use...
  • Page 2 276X*. * C-CC564 and C-CC764 cameras are equipped with a high-speed, wide-angle lens having a 23X zoom while C-CC514 and C-CC714 cameras are equipped with a high-speed, wide-angle lens having a 22X zoom.

  • Page 3: Other Functions

    ■ Withstands cold weather conditions. C-CC714 and C-CC764 incorporate a heating circuit that allows operation in severe temperatures down to –40°C. Heating is automatically turned on when ambient temperatures go below 0°C and will automatically switch off when the temperatures rise.

  • Page 4: Color Mode

    C-CC764/C-CC-714 COMBINATION DOME CAMERA (OUTDOOR USE) C-CC764 SPECIFICATIONS Power source 24V AC 50/60Hz (2P loose end) Power consumption 10W (normal operation), 80W max. Control RS-485 communications system (new protocol compatible) Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack Camera Control Terminal RS-485 camera control connector, multi-pair cable 8P, loose end (3P of 8P)

  • Page 5: Specifications

    C-CC564/C-CC514 COMBINATION DOME CAMERA (INDOOR USE) C-CC564 SPECIFICATIONS Power source 24V AC 50/60Hz Power consumption 9W (normal operation), 19W max. (1.3A max.) Control RS-485 communications system (new protocol compatible) Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack Camera Control Terminal RS-485 camera control connector Alarm Input 8 channels, no-voltage make contact input, open voltage: 18V DC, short-circuit current;...

  • Page 6: Wall Mounting Bracket

    Brackets and Dome Cover for C-CC764/C-CC-714 (Outdoor Use) C-BC711P Suspension Bracket The C-BC711P is exclusively designed to be used to suspend TOA's outdoor combination camera from a ceiling or eaves. Finish Base: Aluminum, light gray, paint Pipe: Stainless steel (SUS304) Dimensions 140 (W) ×...

  • Page 7: Setting Guide

    C-RM500 are connected. *2 Can also be changed for individual positions at the Camera setting screen for individual positions. *3 Can be only set for the C-CC564 and C-CC764. *4 Can be only set when the C-RM500 is connected.
  • Page 8 C-CC764/C-CC714 APPEARANCE AND DIMENSIONAL DIAGRAM C-CC764/C-CC714 Multi-pair cable 8 P, loose end Cable end: 2 P loose end Power cord length Approx. 1.8 m ø179.9 ø150 ø218.5 ø230 C-A711DM ø219.8 C-BC711W BNC-R jack Coaxial cable length Approx. 1.8 m Multi-pair cable length Approx.
  • Page 9 C-CC564/C-CC514 APPEARANCE AND DIMENSIONAL DIAGRAM C-CC564/C-CC514 4–ø4.5 Connector 1 BNC jack Power supply terminal block ø118 C-BC511C (option) or C-BC511C-S (option) ø168 (View of an optional camera installation cover attached) ■INSTALLATION EXAMPLE Mounting to a heavy-duty ceiling (such as a concrete ceiling) 1.

  • Page 10: Remote Controller

    C-RM500 The C-RM500 Remote Controller is designed for use in camera- based systems that allow remote control from up to 1.2km away over RS-485 communication lines. It allows video images to be switched remotely and can handle a maximum of 16 TOA's Combination Dome Cameras when used together with the TOA Multiplexer.

  • Page 11: Interface Unit

    C-IF500 INTERFACE UNIT A useful option for configuring camera systems, the C-IF500 functions as a splitter. It provides control over expanding a camera system when the distance is over 1.2km (max. 3km) between the dedicated C-RM500 Remote Controller and system cameras linked to it.

  • Page 12: System Examples

    Cable Compensator 4. Sensor-activated Dome Camera operation. Sensor Combination Dome Cameras C-CC564 max. 8 max. 3 C-CC514 max. 3 max. 256 C-CC764 2. Combination Dome Camera (16 units) Combination Dome Cameras C-CC564 C-RM500 max. Monitor Remote Controller C-RM500 Monitor Remote Controller...
