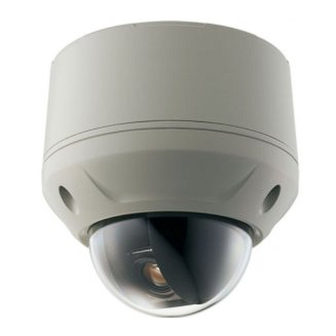

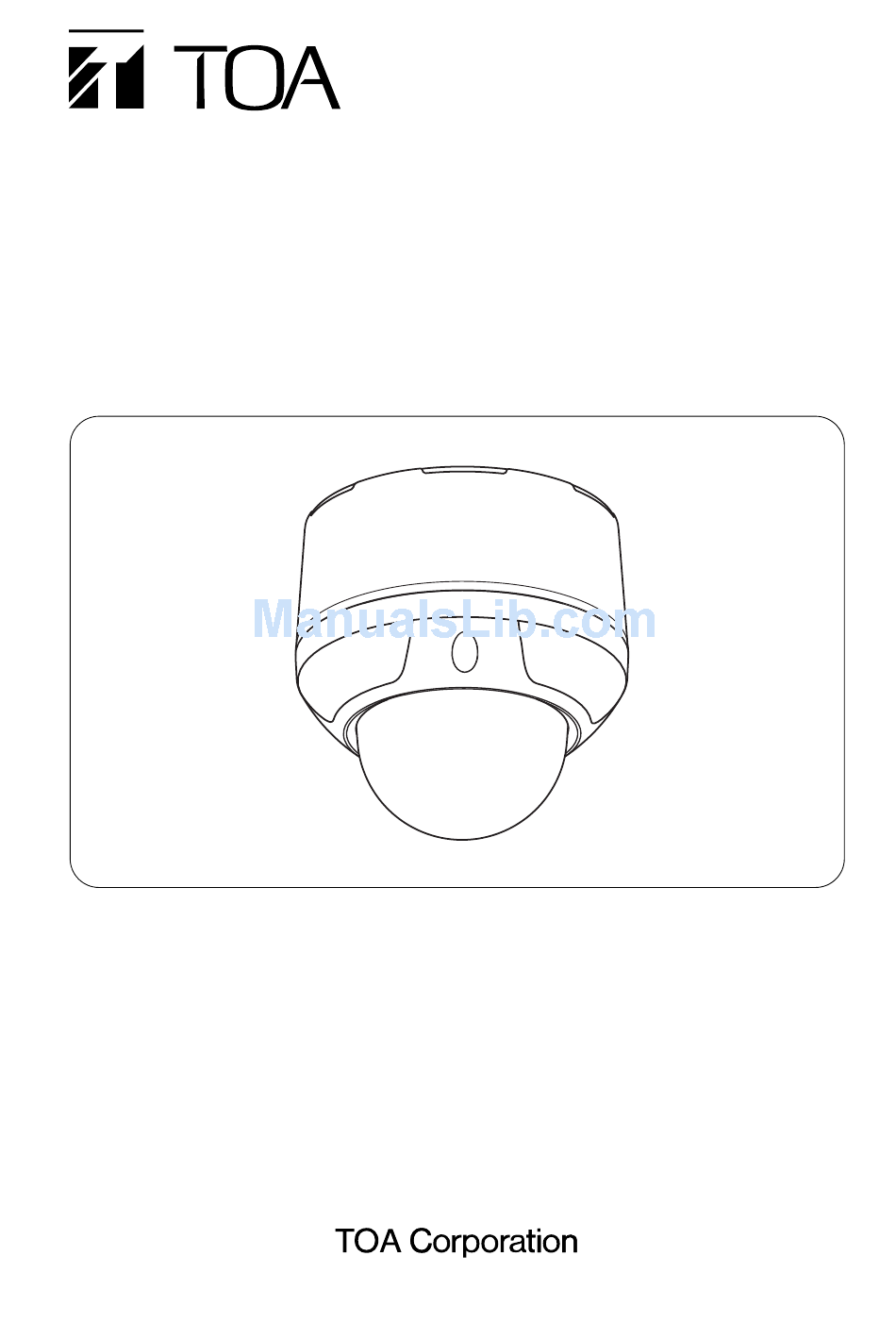

- Page 1 SETUP MANUAL C-CC704 CU COMBINATION CAMERA Thank you for your purchasing TOA’s Combination Camera. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SETTING ITEMS GUIDE ..............2. BEFORE SETTING 2.1. About Address Display When Turning Power On ..........6 2.2. Keys Used for Setting ..................6 2.3. Basic Setting Operation ................... 7 2.4. Operation Method .................... 8 3. ENTERING CAMERA MENU SCREEN ............. - Page 3 7.6. Setting Endless ....................29 7.7. Setting Speed ....................29 7.8. Setting the Pause Time at the Auto-Pan Endpoint ........29 8. TOUR 8.1. Displaying the Tour Setting Screen ............... 30 8.2. Exiting the Tour ....................30 8.3. Setting the Tour ..................... 31 8.4.
-
Page 4: Setting Items Guide
1. SETTING ITEMS GUIDE The camera menu screens are comprised of the following setting item screens. p. 9 MAIN MENU Setting Item p. 10 DOME SETUP Sets the camera title. p. 11 CAMERA ID Sets an interval for the camera to return to the home p. - Page 5 From previous page AUTO PAN p. 27 p. 28 Sets the Auto-Pan ID. AUTO PAN ID Sets the start point. p. 28 START ANGLE Sets the end point. p. 28 END ANGLE Sets the rotation direction. p. 28 DIRECTION Sets to enable or disable the limit. p.
-
Page 6: Before Setting
2. BEFORE SETTING 2.1. About Address Display When Turning Power On When the camera's power is turned on, the camera performs the initial operation (initializing operation). Simultaneously, the P R O T O C O L : T Y P E - B camera address screen, which displays the communication C A M E R A I D : 0 0 1 B A U D R A T E : 3 8 4 0 0 B P S... -
Page 7: Basic Setting Operation
2.3. Basic Setting Operation Menu screen display and some operations differ slightly depending on the equipment to be connected, but basic setting operations are the same for such equipment. Explanation is given in reference to screens below. ( The shaded rectangle shows the cursor position. -
Page 8: Operation Method
2.4. Operation Method The following table shows the principal key operations for the Remote Controller to be connected. C-RM700 Menu screen display Menu key Menu screen exit Function selection Tilting the joystick up or down Setting item selection Tilting the joystick left or right Tilting the joystick left or right Setting item confirmation Set key... -
Page 9: Entering Camera Menu Screen
3. ENTERING THE CAMERA MENU SCREEN When the C-RM700 is connected MENU 1. Press the Menu key. (Enter the password with the O P E R A T I O N M O D E numeric key pad if required.) The menu screen is displayed on the dedicated Remote Controller's LCD. -
Page 10: Dome Setting
4. DOME SETTING 4.1. Displaying the Dome Setting Screen Tilt the joystick up or down to select the "DOME SETUP" on the main menu screen, then tilt the joystick right. Dome setting screen is displayed. To display the next page, tilt the joystick up or down to select "NEXT PAGE," then tilt the joystick right. To display the previous page, tilt the joystick up or down to select "PREVIOUS PAGE,"... -
Page 11: Setting The Camera Id
4.3. Setting the Camera ID 1. Tilt the joystick up or down to select the "CAMERA ID" on the D O M E S E T dome setting screen. C A M E R A I D C A M E R A I D : C A M 0 1 A U T O R E T U R N : O F F H O M E... -
Page 12: Setting Home
4.5. Setting Home Determines the operation when the Auto Return is activated. 1. Tilt the joystick up or down to select "HOME" on the dome setting screen. D O M E S E T C A M E R A I D : C A M 0 1 2. -
Page 13: Setting Refresh
4.7. Setting Refresh If the camera with its power continuously kept on is used for long periods of time, the camera position may deviate when the preset position is played back. In such cases, deviation can be corrected using the Auto- refresh function. -
Page 14: Initializing
4.8. Initializing In the combination camera's preset memory playback function, a stepping motor is operated by open loop control. Therefore, if the camera is used for long uninterrupted periods of time, the camera position may deviate from the original settings. In such cases, deviation can be corrected with re-initialization. Note: Set data are not erased by initializing operation. -
Page 15: Setting The Password
4. 10. Setting the Password Set the password required when activating the Camera menu screen. Displays the Password entry screen when entering the menu screen. Password can be set. OFF: Allows to enter the maintenance screen without password verification. Password cannot be set. 1. -
Page 16: Setting Display Content
4.11. Setting Display Content Contents to be displayed can be set by selecting "OSD DISPLAY" on the dome setting screen. 1. Tilt the joystick up or down to select "OSD DISPLAY" on the D O M E S E T dome setting screen, then tilt the joystick right. -
Page 17: Confirming System Settings
4.12. Confirming System Settings The current protocol, communication speed (baud rate), and camera information can be checked. 1. Tilt the joystick up or down to select "SYSTEM STATUS" on the D O M E S E T dome setting screen, then tilt the joystick right. S Y S T E M L O C K : O N System setting screen is displayed. -
Page 18: Camera Settings
5. CAMERA SETTINGS 5.1. Displaying the Camera Setting Screen Tilt the joystick up or down to select "CAMERA SET" on the main menu screen, then tilt the joystick right. Camera setting screen is displayed. Camera setting C A M E R A S E T B R I G H T N E S S B R I G H T N E S S S H U T T E R S P E E D : N O R M A L... -
Page 19: Auto Focus
5.3. Auto Focus The auto focus operates in "STOP AF" mode. STOP AF: Auto-focusing is automatically operated after the camera scene or angle of view has been changed. The "STOP AF" mode does not work when the Focus key is used. Pressing the Auto- focus key again returns the camera in the STOP AF mode. -
Page 20: Setting Shutter Speed
5.5. Setting Shutter Speed Fixed shutter speed can be selected. Select "NORMAL," "1/100," "1/120," "1/250," "1/500," "1/1000," "1/2000," "1/4000," or "1/10000." Notes • If shutter speed other than "NORMAL" is selected, the Slow Shutter function (Refer to 23) cannot be used. •... -
Page 21: Setting The Enhancer Function
5.7. Setting the Enhancer Function This function emphasizes the contours of the image. The degree of emphasis can be adjusted to suit user requirements. 1. Tilt the joystick up or down to select "ENHANCER" on the camera C A M E R A S E T setting screen. -
Page 22: Setting White Balance
5.9. Setting White Balance Four modes are made available for white balance: "ATW," "AWB," "ATW-R," and "ATW-B." ATW: The camera's white balance varies with the change in color temperature of the subject's light source. AWB: The camera's white balance is fixed even if the color temperature of the subject's light source changes. -
Page 23: Setting High-Sensitivity Slow Shutter
5.11. Setting High-Sensitivity Slow Shutter Depending on the subject's brightness level, the camera is automatically put in slow shutter mode, the limit of which can be set by selecting from "OFF," "02," "04," "08," "16," "32," and "64." The slow shutter function cannot be used when "OFF"... -
Page 24: Preset
6. PRESET Specific camera scenes, lens view angles, and lens focuses can be preset in advance. Up to 64 preset positions can be set. 6.1. Displaying the Preset Setting Screen Tilt the joystick up or down to select "PRESET" on the main menu screen, then tilt the joystick right. The preset setting screen is displayed. -
Page 25: Storing Preset
6.3. Storing Preset It is not possible to preset positions in the Electronic zoom areas (refer to 21). Presetting is possible only for areas not included in the Electronic zoom range . 1. Tilt the joystick up or down to select "PRESET NO." on the preset setting screen. -
Page 26: Setting Preset Id
6. 4. Setting Preset ID 1. Tilt the joystick up or down to select "PRESET ID" on the preset P R E S E T S E T setting screen. P R E S E T N O . : 0 0 1 P R E S E T I D P R E S E T I D : P R E S E T 0 0 1... -
Page 27: Auto Pan
7. AUTO PAN 7.1. Displaying Auto-Pan Setting Screen Tilt the joystick up or down to select "AUTO PAN" on the main menu screen, then tilt the joystick right. Auto-pan setting screen is displayed. Auto-Pan A U T O P A N S E T A U T O P A N I D : A U T O P A N A U T O P A N I D A S T A R T A N G L E : 0 0 0... -
Page 28: Setting Auto-Pan Id
7.3. Setting Auto-Pan ID 1. Tilt the joystick up or down to select "AUTO PAN ID" on the auto- A U T O P A N S E T pan setting screen. A U T O P A N I D : A U T O P A N A U T O P A N I D A S T A R T A N G L E : 0 0 0 - 2 6... -
Page 29: Setting Endless
7.6. Setting Endless Set this function to use the Auto-Pan function in endless mode. Selecting "ON" enables the camera to pan to the set rotation direction and at the set tilt angle in endless mode. In this case, the Pan limit function does not work. 1. -
Page 30: Tour
8. TOUR 8.1. Displaying the Tour Setting Screen Tilt the joystick up or down to select "TOUR" on the main menu screen, then tilt the joystick right. Tour setting screen is displayed. Tour T O U R S E T T O U R N O . -
Page 31: Setting The Tour
8.3. Setting the Tour Sets the operation to be programmed for each tour ("1" through "8"). 1. Tilt the joystick up or down to select "TOUR NO." on the tour T O U R S E T setting screen. T O U R N O . T O U R N O . -
Page 32: Setting The Tour Id
8.4. Setting the Tour ID 1. Tilt the joystick up or down to select "TOUR ID" on the tour setting screen. T O U R S E T 2. Enter the tour ID. T O U R N O . : 0 1 T O U R I D T O U R I D... -
Page 33: Privacy Mask
9. PRIVACY MASK 9.1. Displaying the Privacy Masking Setting Screen Tilt the joystick up or down to select "PRIVACY MASK" on the main menu screen, then tilt the joystick right. Privacy masking setting screen is displayed. Privacy mask P R I V A C Y S E T P R I V A C Y N O . -
Page 34: Setting The Privacy Masking
9.3. Setting the Privacy Masking When there are locations that are required to be kept out of view in a camera scene, up to 8 of such locations can be masked out of view. Note Only 2 areas can be masked on the same screen. Depending on the masked area and its size, the number of masking areas that can be set decreases. - Page 35 9. Select "ADJUST" by tilting the joystick left or right, then press the Set key. " " appears on the left side of "ACTION." P R I V A C Y S E T P R I V A C Y N O . : 0 1 10.
-
Page 36: Trace
10. TRACE 10.1. Displaying the Trace Setting Screen Tilt the joystick up or down to select "TRACE" on the main menu screen, then tilt the joystick right. Trace setting screen is displayed. Trace T R A C E S E T T R A C E N O . -
Page 37: Setting The Trace
10.3. Setting the Trace The trace operation can be stored. 1. Tilt the joystick up or down to select "TRACE NO." on the trace T R A C E S E T setting screen. T R A C E N O . T R A C E N O . -
Page 38: Setting The Trace Id
10.4. Setting the Trace ID 1. Tilt the joystick up or down to select "TRACE ID" on the trace T R A C E S E T setting screen. T R A C E N O . : 0 1 T R A C E I D T R A C E I D : T R A C E 0 1... -
Page 39: Alarm
11. ALARM The camera has alarm contact inputs. When an alarm signal is applied to each contact input, the alarm is activated and its alarm No. is displayed on the screen, performing operation according to the following settings. When multiple alarms occur simultaneously, the most recent alarm takes precedence. -
Page 40: Setting Alarm
11.3. Setting Alarm Designate the input No. which actually receives alarm signal out of all the alarm input terminals. Unless the alarm input settings are performed, alarm is not activated even if the alarm signal is received. 1. Tilt the joystick up or down to select "ALARM NO." on the alarm setting screen. -
Page 41: Sector
12. SECTOR Any range can be displayed on the ID display screen. 12.1. Displaying the Sector Setting Screen Tilt the joystick up or down to select "SECTOR" on the main menu screen, then tilt the joystick right. Sector setting screen is displayed. Sector S E C T O R S E T S E C T O R N O . -
Page 42: Setting The Sector
12.3. Setting the Sector 1. Tilt the joystick up or down to select "SECTOR NO." on the sector S E C T O R S E T setting screen. S E C T O R N O . S E C T O R N O . : 0 1 S E C T O R I D : S E C T O R 0 1... -
Page 43: Setting The Sector Id
12.4. Setting the Sector ID 1. Tilt the joystick up or down to select "SECTOR ID" on the sector setting screen. S E C T O R S E T S E C T O R N O . : 0 1 2. -
Page 44: Factory Default Settings List
13. FACTORY DEFAULT SETTINGS LIST Setting Item Function Factory Default Setting ( Up to 16 characters, : Space ) Camera ID CAM01 Dome Setting Auto Return Home 1 POS Max P/T Speed 100°/s Refresh Initialize Language ENGLISH [ Password ] [ OSD display ] [ ID Setting ] Camera ID... - Page 45 Setting Item Function Factory Default Setting Tour Tour No. ( Up to 16 characters, : Space ) Tour ID TOUR01 Tour Step Preset No. Pause Time Speed 200°/s Privacy Mask Privacy No. Display Action MOVE Trace Trace No. ( Up to 16 characters, : Space ) Trace ID TRACE01...
-
Page 46: Character Table
14. CHARACTER TABLE Usable characters are displayed in the following order. Note: The shaded rectangle " " in the table shows a space. - Page 48 URL: http://www.toa.jp/ Ver. 1.01...
