Toa C-CV854D-3 CE Instruction Manual

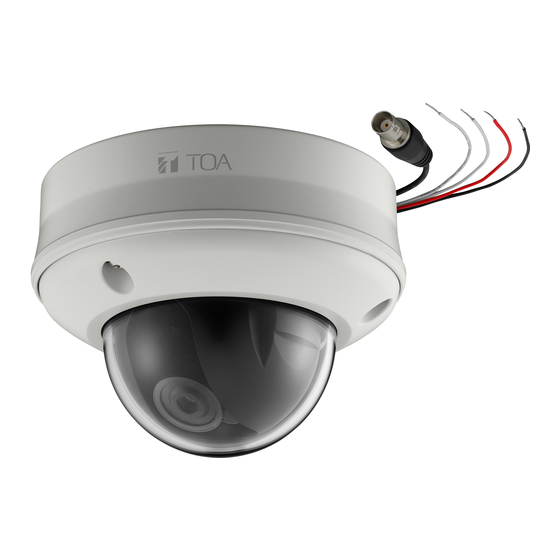

Vandal resistant day/night camera
Hide thumbs Also See for C-CV854D-3 CE:
Table of Contents

Advertisement

Quick Links

Download this manual
VANDAL RESISTANT
DAY/NIGHT CAMERA

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 4
3. HANDLING PRECAUTIONS ..................... 4
4. NOMENCLATURE ...................................... 5
5.1. Detaching a Dome Cover .................... 6
5.2. Installing a Camera ............................. 6
5.2.1. Unexposed wiring ...................... 6
from the camera's side ............ 8
5.3. Attaching a Dome Cover ................... 10
Thank you for purchasing TOA's Vandal Resistant Day/Night Camera. Please carefully follow the
instructions in this manual in order to ensure long, trouble-free use of your color camera.
INSTRUCTION MANUAL
C-CV854D-3 CU
C-CV854D-9 CU
C-CV854D-3 CE
6. CONNECTION .......................................... 11
7. ADJUSTMENT .......................................... 12
8.1. Focus adjustment switch ................... 13
8.3. Flickerless switch .............................. 13
8.5. Mode selection switch ....................... 14
9. TROUBLESHOOTING .............................. 14
10. SPECIFICATIONS .................................... 15
Accessories ............................................... 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CV854D-3 CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa C-CV854D-3 CE

Summary of Contents for Toa C-CV854D-3 CE

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL C-CV854D-3 CU C-CV854D-9 CU C-CV854D-3 CE 6. CONNECTION ... 11 7. ADJUSTMENT ... 12 8. ABOUT THE MODE SETTING SWITCH 8.1. Focus adjustment switch ... 13 8.2.

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.
  • Page 3 CAUTION • Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills. The unit may fall off if incorrectly installed, resulting in possible personal injury. • Do not stand or sit on, nor hang down from the unit as this may cause it to fall down or drop, resulting in personal injury and/or property damage.

  • Page 4: General Description

    2. GENERAL DESCRIPTION The TOA C-CV854D-3 and C-CV854D-9 are Vandal Resistant Day/Night Camera equipped with a Day/Night function. It functions as a color camera in the daytime and as a high-sensitivity monochrome camera in darkness, making it ideal for installation in locations that require around-the-clock monitoring. Noise reduction function enables clear image to be viewed in lower noise under poor lighting conditions.

  • Page 5: Nomenclature

    4. NOMENCLATURE [ Side view with a dome cover attached ] [ Bottom view with a dome cover attached ] (1) Camera power input cable ( Red, Black ) ( 24 V AC or 12 V DC ) (2) Heater power input cable ( White, White ) ( 24 V AC ) (3) Video output terminal ( cable with BNC ) (4) Safety wire fixing hole ( M4 )

  • Page 6: Installation

    5. INSTALLATION Notes · Do not remove the protective sheet attached to the dome cover until installation work is completed. Damage to the dome cover could result if the protective sheet is removed during installation. · A safety wire for connecting between the unit and ceiling is not supplied. Hook a safety wire for the unit itself to the safety wire-fixing hole (M4, useful thread depth = 6 mm ( 0.24 inch ) ) as needed.
  • Page 7 power wire from the power-supply unit. 3. Fix the camera unit to the ceiling or wall using the four mounting screws. Attach the supplied base gasket to the camera unit, then install the camera unit to the ceiling or wall. Since no mounting screws are supplied with the camera, prepare them separately depending on the situation.

  • Page 8: Open Wiring From The Camera's Side

    Note The pipe receptacle thread on the camera's side is compatible with 3/4-inch threaded conduit. 1. Loosen the fixing screw with a standard driver, then detach the camera side-attached pipe receptacle thread cover. Cord bush 2. Push in the cord bush attached to the camera unit from the back to pull out from the case. Run the cable and lead it out from the camera pipe receptacle thread hole.
  • Page 9 unit. 4. Wrap two or more layers of sealing tape around the pipe’s threaded section, then screw the pipe into the camera’s threaded receptacle. Sealing tape must be wrapped around the pipe’s threaded part. The pipe to be used must be approximately 100 mm ( 3.9 inch ) in length.

  • Page 10: Attaching A Dome Cover

    1. After camera’s angle of view and focus adjustment completion, attach the inner cover. 1-1. Put the inner cover in the way that the lens comes to the opening slit of the inner cover. Fit one emboss of the inner cover at a time in the cover-mounting hole while pushing two of the sections indicated by arrows.

  • Page 11: Connection

    6. CONNECTION Note: If the Video output is not terminated at 75Ω, camera images are not properly displayed. Make sure that the output has been terminated at 75Ω at the connected monitor or switcher. The camera power input 24 V AC or 12 V DC Red : Heater power input Black :...

  • Page 12: Adjustment

    7. ADJUSTMENT 1. Switch on the camera power after completing camera connections. The power is supplied to the camera. 2. Connect the monitor to the Monitor Output terminal to permit a picture to be viewed on the monitor. 3. Set the Flickerless switch to ON if light flicker is annoying. Light flicker may interfere with the view under fluorescent lamps in the area where power frequency is 50 Hz (CU) or 60 Hz (CE).

  • Page 13: About The Mode Setting Switch

    8. ABOUT THE MODE SETTING SWITCH Set each switch to the position that provides the best picture reproduction. 1 : Focus adjustment switch 2 : Backlight compensation switch FOCUS ADJUST 3 : Flickerless switch SHUTTER 4 : ATW/AWB selection switch D / N COLOR 5 : Mode selection switch...

  • Page 14: Atw/Awb Selection Switch

    Set the white balance operation. ATW: Set to this position during normal use. The camera's white balance automatically changes as an object's color temperature varies. AWB: Use this switch when the difference between the displayed color and actual color is annoying. Shoot the white object, then turn the switch ON.

  • Page 15: Specifications

    10. SPECIFICATIONS Model No. For camera: 24 V AC, 50/60 Hz or 12 V DC Power Source For Heater: 24 V AC, 50/60 Hz 4 W ( 300 mA, maximum current: 800 mA ) Power Consumption 1/3 type IT-CCD Image Device 771 ( H ) x 492 ( V ) , 380,000 pixels Number of Effective Pixels 2:1 interlace...

  • Page 16: Accessories

    Model No. For camera: 24 V AC, 50/60 Hz, or 12 V DC Power Source For Heater: 24 V AC, 50/60 Hz 4 W ( 300 mA, maximum current: 800 mA ) Power Consumption 1/3 type IT-CCD Image Device 752 ( H ) x 582 ( V ) , 440,000 pixels Number of Effective Pixels 2:1 interlace Scanning System...

This manual is also suitable for:

C-cv854d-3 cuC-cv854d-9 cu
