Toa C-CV24-2 NTSC Instruction Manual

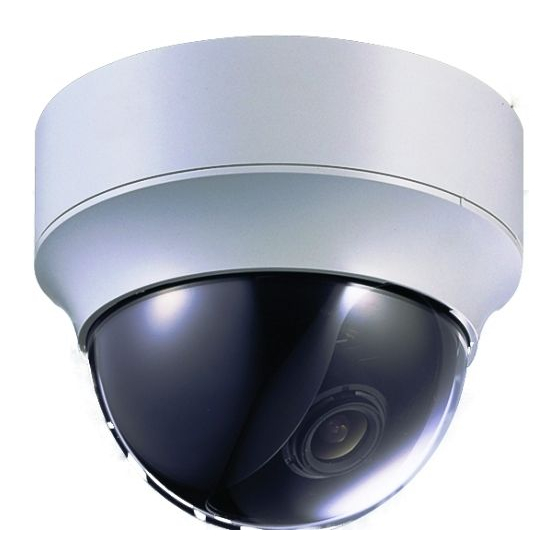

Toa electronics color dome camera instruction manual
Hide thumbs Also See for C-CV24-2 NTSC:
Table of Contents

Advertisement

Quick Links

Download this manual
COLOR DOME CAMERA

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 3
3. HANDLING PRECAUTIONS ..................... 3
4. NOMENCLATURE ..................................... 4
and Termination .................................. 5
5.2. Installation ............................................ 5
6. CONNECTIONS .......................................... 8
Thank you for purchasing TOA's Color Dome Camera. Please carefully follow the instructions in this
manual in order to ensure long, trouble-free use of your color camera.
INSTRUCTION MANUAL
C-CV24-2 NTSC
C-CV24-2 PAL
7. ADJUSTMENT ............................................ 9
8.1. Adjustment Switch .............................. 10
8.3. Shutter Speed Switch ......................... 10
(TROUBLESHOOTING) .......................... 11
10. SPECIFICATIONS .................................... 12
Optional Products ...................................... 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CV24-2 NTSC and is the answer not in the manual?

Questions and answers

Related Manuals for Toa C-CV24-2 NTSC

Summary of Contents for Toa C-CV24-2 NTSC

  • Page 1: Table Of Contents

    Thank you for purchasing TOA’s Color Dome Camera. Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your color camera. INSTRUCTION MANUAL C-CV24-2 NTSC C-CV24-2 PAL 7. ADJUSTMENT ... 9 8. ABOUT THE MODE SETTING SWITCH 8.1.

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section in order to ensure long, trouble-free operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings regarding safety.

  • Page 3: General Description

    NTSC version complies with Part 15 of the FCC Rules. Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Nomenclature

    4. NOMENCLATURE [Bottom view] (1) Power input terminal (24 V AC or 12 V DC) (2) Video output terminal (3) Monitor output terminal (RCA pin jack) (4) Mode setting switch (5) Iris control OFF ON IRIS F.ADJ 1/60 1/100 [Side view] [Side view of the camera with a dome cover] (6) Vari-focal lens (7) Zoom ring...

  • Page 5: Installation

    5. INSTALLATION 5.1. Coaxial Cable Preparation and Termination 3C-2V Type 1. Strip the cable jacket 13 mm from the cable end. 2. Fold back the shields over the cable, then strip the insulator 8 mm from the cable end. 5C-2V Type 1.
  • Page 6 2. Connect the coaxial cable to the Video output Terminal, and the power supply cable to the Power Input Terminal. 3. Mount the camera to the ceiling or wall using 2 mounting screws. Because the mounting screws are not supplied with the camera, prepare appropriate screws for the application.
  • Page 7 Inner Cover Adjustment Note: Take care not to touch the dome cover window (transparent section) during adjustment. 1. Hold the dome cover so that the mark is positioned as shown in the figure below. 2. Rotate the dome inner cover with the thumbs of both hands to align the scale. 3.

  • Page 8: Connections

    4-2. Attach the dome cover to the camera by aligning the dome cover’s alignment mark with the camera’s mark and then rotating the cover clockwise. (Be sure that the dome cover’s alignment mark is properly aligned with the camera’s alignment mark.) About the alignment marks The dome cover has two alignment marks.

  • Page 9: Adjustment

    7. ADJUSTMENT 1. Switch on the camera power after completing camera connections. Power is supplied to the camera. 2. Normally,set the Shutter Speed switch to "1/60"(NTSC) or "1/50"(PAL) position. Flickering of the picture may interfere with the view under fluorescent lamp in the area with power frequency of 50 Hz(NTSC) or 1/60(PAL).

  • Page 10: About The Mode Setting Switch

    8. ABOUT THE MODE SETTING SWITCH Set the Mode Setting switch for the best possible picture reproduction depending on installation conditions. F.ADJ 1/60 8.1. Adjustment Switch Set this switch when adjusting the lens focus.(Provides the same effect as when using the ND filter.) OFF ON Standard position : Set to OFF after lens adjustment completion.

  • Page 11: If You Think There Is A Failure: (Troubleshooting)

    9. IF YOU THINK THERE IS A FAILURE: (TROUBLESHOOTING) Symptom • The monitor’s power switch is not Camera images are not displayed on the set to ON. • Cables are not correctly connected. monitor. • The BNC plug is not correctly soldered.

  • Page 12: Specifications

    10. SPECIFICATIONS Model No. Power Source 24 V AC, 50/60 Hz, or 12 V DC Power Consumption Image Device 1/4” IT-CCD Number of Effective Pixels 768 (H) x 494 (V), 380,000 pixels Scanning System 2:1 interlace Scanning Frequency 15.734 kHz (H), 59.94 Hz (V) Monitor Output VBS1.0 V(p-p), 75 , RCA pin jack Video Output...

This manual is also suitable for:

C-cv24-2 pal
