- Page 1 Outdoor Day/Night Camera Thank you for purchasing TOA Outdoor Day/Night camera: Wide, Standard, or Tele. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. INSTRUCTION MANUAL Wide C-CV454D-3 CU Standard C-CV454D-9 CU Tele C-CV454D18 CU...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS 2. GENERAL DESCRIPTION 3. HANDLING PRECAUTIONS 4. NOMENCLATURE 5. INSTALLATION AND CONNECTIONS 6. ADJUSTMENT 7. ABOUT MODE SETTING SWITCH 7.1. Focus adjustment switch ... 15 7.2. Backlight compensation switch ... 15 7.3. Flickerless switch ... 15 7.4. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. - Page 4 CAUTION • Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills. The unit may fall off if incorrectly installed, resulting in possible personal injury. • Do not stand or sit on, nor hang down from the unit as this may cause it to fall down or drop, resulting in personal injury and/or property damage.
-
Page 5: General Description

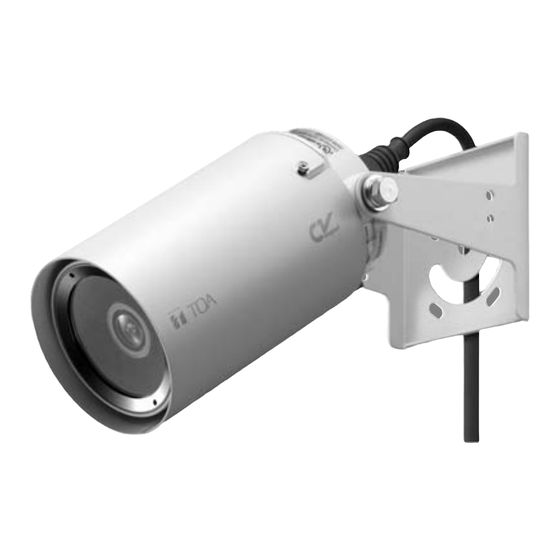

2. GENERAL DESCRIPTION The TOA C-CV454 series are outdoor Day/Night cameras equipped with a 1/3" CCD. A lineup of cameras with three types of lenses, Wide, Standard, and Tele allows accurate monitoring over a wide range from near to distant subjects depending on the installation location. Noise reduction function enables clear image to be viewed in lower noise under poor lighting conditions. -
Page 6: Nomenclature
4. NOMENCLATURE [Appearance] [View with sunshade, front cover, and mounting bracket detached] HEAD FIXING 17 18 ( 1 ) Vari-focal lens ( 2 ) Sunshade ( 3 ) Front cover ( 4 ) Mounting bracket (accessory) ( 5 ) Safety wire mounting hole ( 6 ) Sunshade fixing screw ( 7 ) Bracket mounting bolt (accessory) ( 8 ) Monitor output terminal (RCA jack) -
Page 7: Installation And Connections
5. INSTALLATION AND CONNECTIONS [Ceiling mounting example] WARNING Note Install a safety wire as needed. Select the wire considering its length, diameter, and hook strength. 1. Check the mounting bracket’s installation location, and determine its mounting direction and position. Depending on the installation location, installation options are available as shown in the examples 1 - 3. φ10.5 mm [Wall mounting example] Camera mounting bolt... - Page 8 [Example 1: Mounting to a ceiling or wall] Camera mounting bolt M8 or W3/8 [Example 2: Mounting on a wall] If angle which Example 1 can not cover is required; Camera mounting bolt M8 or W3/8 [Example 3: Mounting to a ceiling or wall] If only fine adjustment of camera angle is required;...
- Page 9 Anchor nut M8 or W3/8 Ceiling 3. Install the camera unit to the mounting bracket using the supplied insulating spacers and Bracket mounting bolts (with washer, stainless steel). Note Be sure to position the insulating spacers between the bracket and bolt, as induction voltage or noise may be produced at the joints depending on installation conditions.
- Page 10 Connect the connector of the supplied cable with waterproof cap to the camera unit's video output terminal, then tighten the lock screw of the connector. Notes • To meet the waterproof requirements, insert the connector in place until it will not go any further. •...
- Page 11 Connect the camera unit to both the monitor and the power supply as illustrated below. Notes • If the Video output is not terminated at 75Ω, camera images are not properly displayed. Make sure that the output has been terminated at 75Ω at the connected monitor or switcher. •...
-
Page 12: Adjustment
6. ADJUSTMENT 1. After completing camera unit installation and connections, remove both the sunshade and front cover. [Removing sunshade] 2. Connect the camera’s monitor output terminal to the monitor. Note: The camera will not operate if the monitor output terminal is connected to the camera drive unit. 3. - Page 13 • Camera's orientation can be adjusted with the camera mounting and bracket mounting bolts loosen. • Adjust the inclination of image so that the projection of the camera faces upward by loosening a camera head fixing screw and turning the camera head. After adjustment completion, retighten the camera head fixing screw.
- Page 14 8. Tighten both the camera mounting and bracket mounting bolts, then replace the front cover. Note: If the front cover is not secured enough, waterproof effect is reduced, causing unit failure. 9. Insert the sunshade from the front side of the camera unit as shown below, then secure it with two sunshade fixing screws.
-
Page 15: About Mode Setting Switch
7. ABOUT MODE SETTING SWITCH Set each switch to the position that provides the best picture reproduction. F.ADJ 1/60 1/100 D / N COLOR IRIS 7.1. Focus adjustment switch: Set to “ON” position when adjusting focus. (This setting provides the same effect as when using an ND filter.) Standard position: After focus adjustment completion, set the switch to “OFF”... -
Page 16: Atw/Awb Selection Switch
Set the white balance operation. ATW: Set to “OFF” position during normal use. The camera's white balance automatically changes as an object's color temperature varies. AWB: Set to “ON” when the difference between the displayed color and actual color is annoying. -
Page 17: Troubleshooting
8. TROUBLESHOOTING Symptom No camera image dis- Cables are not correctly connected. played on the monitor. BNC plugs are not correctly sold- ered. Camera image is not Camera lens does not focus clear. properly. Lens is dirty. Image black level of the monitor is not correctly adjusted. -
Page 18: Specifications
9. SPECIFICATIONS Model No. C-CV454D-3 (CU) Power Source 24 V AC, 50/60 Hz or 12 V DC Power 4 W (300 mA, Maximum current: 800 mA) Consumption Image Device 1/3 type IT-CCD Number of 771 (H) x 492 (V), 380,000 pixels Effective Pixels Scanning System 2:1 interlace... -
Page 19: Accessories
• Accessories Mounting bracket ... 1 Cable with waterproof cap (2 m) ... 1 Bracket mounting bolts (with washer, stainless steel) ... 2 Insulating spacer ... 2 • Optional products Pole mounting bracket : C-BC450PM... - Page 20 URL: http://www.toa.jp/ 133-22-161-10...
