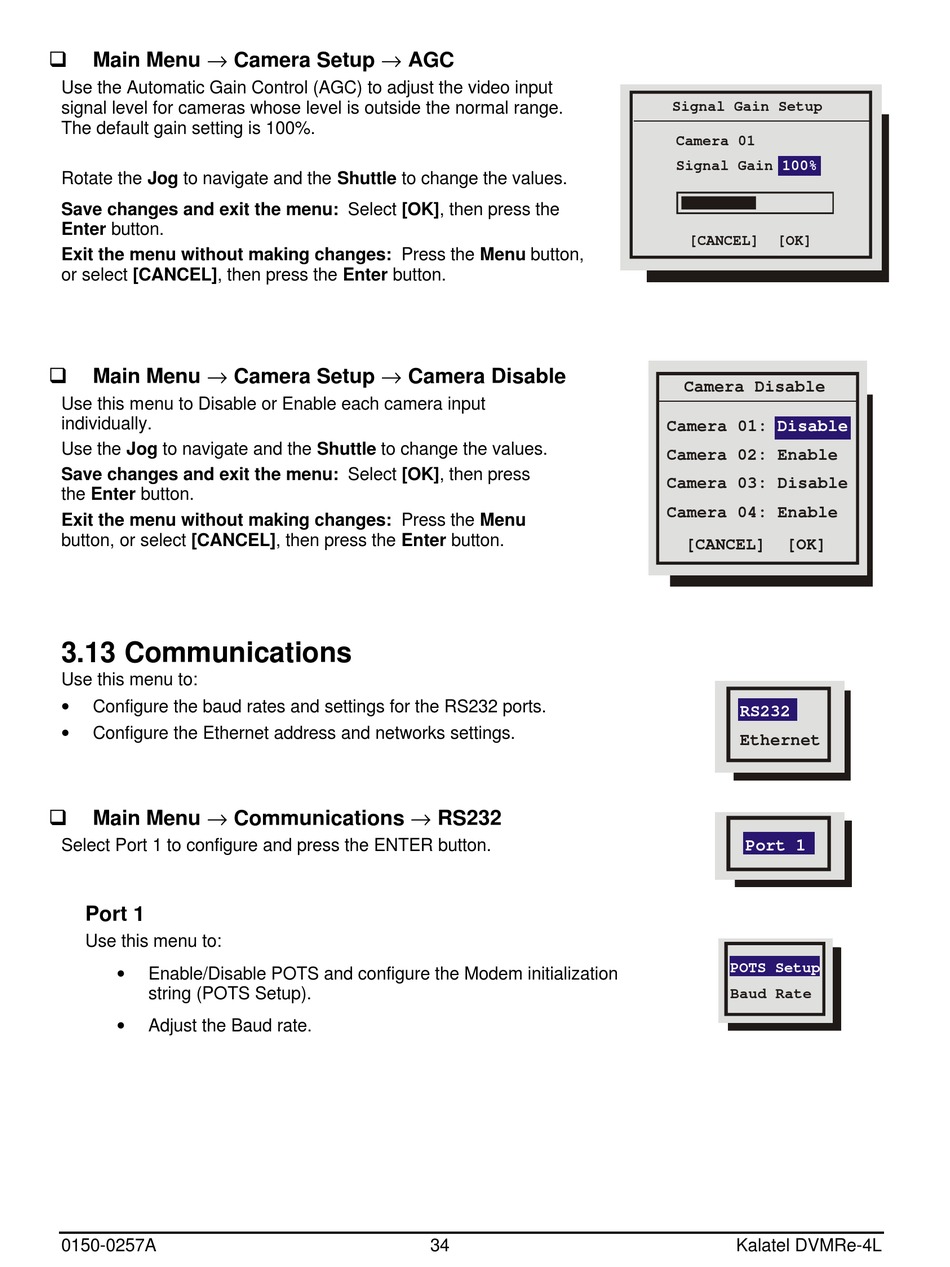

Main Menu → Camera Setup → AGC
q
Use the Automatic Gain Control (AGC) to adjust the video input
signal level for cameras whose level is outside the normal range.
The default gain setting is 100%.
Rotate the Jog to navigate and the Shuttle to change the values.
Save changes and exit the menu: Select [OK], then press the
Enter button.
Exit the menu without making changes: Press the Menu button,
or select [CANCEL], then press the Enter button.
Main Menu → Camera Setup → Camera Disable
q
Use this menu to Disable or Enable each camera input
individually.
Use the Jog to navigate and the Shuttle to change the values.
Save changes and exit the menu: Select [OK], then press
the Enter button.
Exit the menu without making changes: Press the Menu
button, or select [CANCEL], then press the Enter button.

3.13 Communications

Use this menu to:
•
Configure the baud rates and settings for the RS232 ports.
•
Configure the Ethernet address and networks settings.
Main Menu → Communications → RS232
q
Select Port 1 to configure and press the ENTER button.
Port 1
Use this menu to:
•
Enable/Disable POTS and configure the Modem initialization
string (POTS Setup).
•
Adjust the Baud rate.
0150-0257A 34
Signal Gain Setup
Camera 01
Signal Gain 100%
[CANCEL] [OK]
Camera Disable
Camera 01: Disable
Camera 02: Enable
Camera 03: Disable
Camera 04: Enable
[CANCEL] [OK]
RS232
Ethernet
Port 1
POTS Setup
Baud Rate
