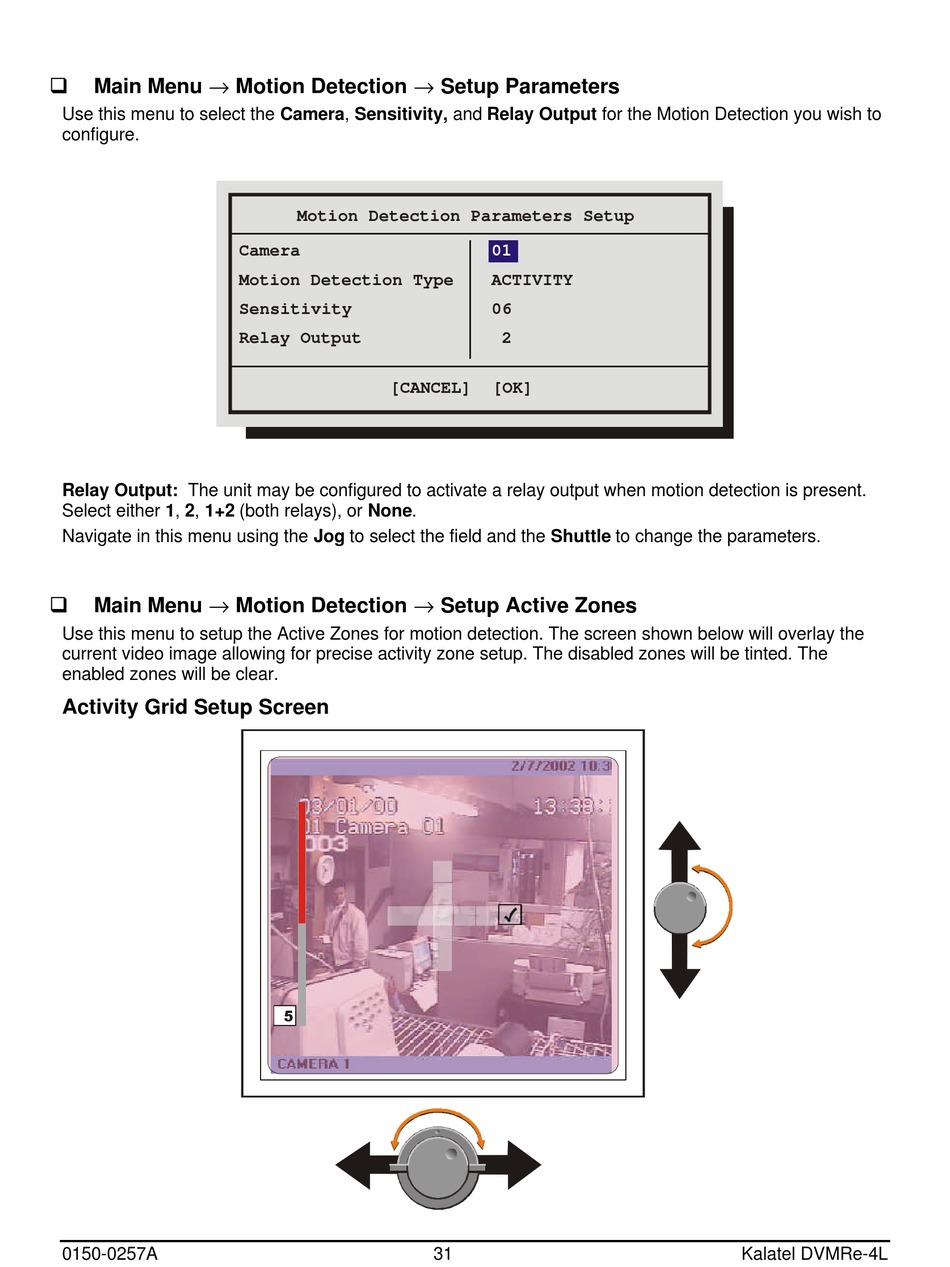

Main Menu → Motion Detection → Setup Parameters
q
Use this menu to select the Camera, Sensitivity, and Relay Output for the Motion Detection you wish to
configure.
Relay Output: The unit may be configured to activate a relay output when motion detection is present.
Select either 1, 2, 1+2 (both relays), or None.
Navigate in this menu using the Jog to select the field and the Shuttle to change the parameters.
Main Menu → Motion Detection → Setup Active Zones
q
Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the
current video image allowing for precise activity zone setup. The disabled zones will be tinted. The
enabled zones will be clear.
Activity Grid Setup Screen
0150-0257A
Motion Detection Parameters Setup
Camera
Motion Detection Type
Sensitivity
Relay Output
[CANCEL]
5
01
ACTIVITY
06
2
[OK]
